Plastic Pipe Coiling Machine Single Station Φ 600mm-1100mm Inner Core Diameter
Plastic Pipe Coiling Machine Single Station Φ 600mm-1100mm Inner Core Diameter
Plastic Pipe Coiling Machine Single Station Φ 600mm-1100mm Inner Core Diameter
Plastic Pipe Coiling Machine Single Station Φ 600mm-1100mm Inner Core Diameter
Specifications
Brand Name :
ZHMC Machiney
Model Number :
Plastic coiling machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
15 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden package
Type :
Single and Double Station
Winding Speed :
30m/Min
Winding Type :
Double Coiler
Coiler :
One or two
Cylinder QuantityCylinder Quantity :
6 PCS
Speed :
0-40m/Minute
Description

Single Station Coiler/Winding Machine for Plastic Pipe automatic coil winding machine

Single Station Coiler/Winding Machine Features and application
1. The machine is mainly used in winding up and packing of aluminium plastic compound pipe, cross linking compound pipe and other plastic soft pipes. It adopts automatically winding.

2. Adjusting winding speed and winding method. It has two disk for continuous winding. It adopts air_operated method.

3. The wheel rib of the winding up wheel adopts air_operated opening and closing. It is equiped with a ray creel stand to automatically wind displacement.

4. It reaches winding up orderly. The machine structure is compact. Its automatication is high, Its appearance is beautiful and its operation is convenient.

The main technical parameters


1. Inner core diameter: Φ 600mm-1100mm
2. The largest diameter: Φ 1800mm
3. The maximum speed: 10m/min
4. Width: 600mm (adjustable)
5. Material: Aluminum
6. Winding tube: Φ 20mm ~ Φ 75mm
7. Torque motor power: 35N. M
8. Size (L × W × H): 4500 × 1800 × 2000mm

Specification

Model SPS280 SPS400 SPS700
Disk Min Size (mm) 280 400 700
Disk Max Size (mm) 700 1200 1800
Winding width (mm) 220 300 500
Maximum rolling pipe (mm) 20 50 75

Model 1200 twin-plate pipe 1600 twin-plate pipe 3000 single-plate pipe
Inner diameter 500-1000mm 550-1000mm 1000-3000mm
Winding speed 0.5-30m/min 0.5-30m/min 0.5-15m/min
Winding width 300-500mm 300-500mm 200-500mm
Winding pipe spec 16-32mm 16-63mm 63-110mm
Air pressure 0.6mpa 0.6mpa 0.6mpa
Moment motor power 10N. M 10N. M& 16N. M 30N. M
Dimension 2700× 1700× 1800 3000× 2800× 2000 3500× 2000× 3500
Weight 1000kg 1500kg 3000kg

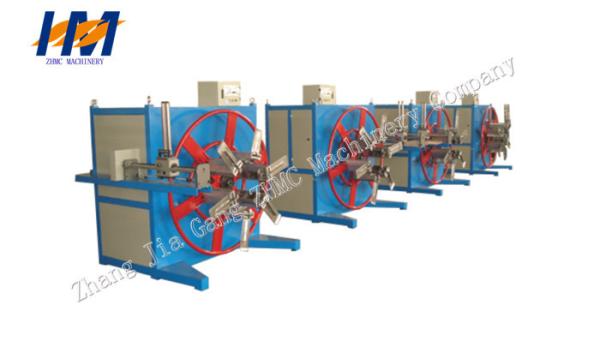

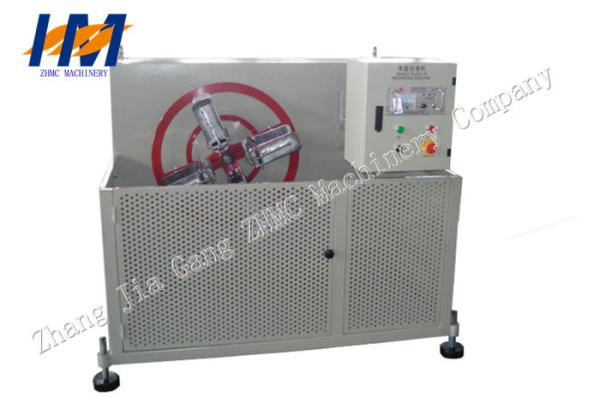

Detailed Picture

Plastic Pipe Coiling Machine Single Station Φ 600mm-1100mm Inner Core Diameter
