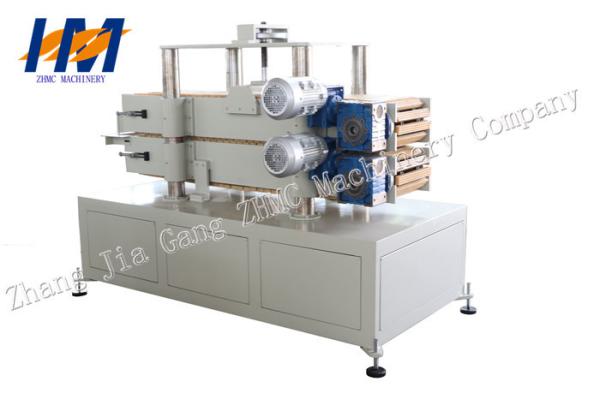

16-63mm Pipe Belt Traction Machine Wooden Cases With Plastic Material
16-63mm Pipe Belt Traction Machine Wooden Cases With Plastic Material
16-63mm Pipe Belt Traction Machine Wooden Cases With Plastic Material
16-63mm Pipe Belt Traction Machine Wooden Cases With Plastic Material
Specifications
Brand Name :
ZHMC Machiney
Model Number :
Belt or crawer type
Certification :
CE
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 + Set + Per month
Delivery Time :
20 days
Packaging Details :
Wooden Package
Belt type :
16-63mm pipe
Type :
Belt type
Standard :
GB or CE
Voltage :
3 Phases
Power :
2.2-17.6 kw
Condition :
New
Description

Belt traction machine haul off machine wooden cases with plastic material

Belt traction machine haul off machine Product Description

1. This series of haul off machine is mainly used for plastic pipes hauling, such as PVC, UPVC, PE, HDPE, PPR, PP, ect, also can be used for plastic profiles hauling.

2. Traction material can be caterpillar and rubber, rubber belt used for small pipes or profiles, caterpillar usually be used for bigger sizes, phneumatic control, up and down moving can be adjusted, machines' body adopt SS304 material, high quality attracted many customers.

3. Drive by coupling and controlled by inverter.

4. Upper caterpillar adopts cylinder flexible pinched to suit for different pipe diameter and keep contact pressure in reason. Lower catepillar is adjustable electrical as per pipe diameter.

5. Adopt V-shaped rubber block with high friction factor.

Application

Haul off machine caterpillar type shaped plastic material drawer adopts double caterpillar drawing method, thyristor stepless governor. It is mainly uesd with a plastic extruder for plastic pipe material, soft pipe and other plastic shaped materials. Its applicability is wide and its usage is convenient.

Features

1. The Pipe Extruding Line Plastic Tube Traction Machine is mainly used to continuously and automatically pull various plastic pipes and profile products.

2. Compact in structure, fine in appearance

3. Simple structure with long service life and easy to operate

Main Techinical Standards

Model HF 1 HF 2 HF 3
Speed (m/min) 1-10 0.5-5 0.5-2
Height 950 1000 1100
Power (kw) 2.2 4 5.5
Dimension (mm) 1800x885x1720 2800x1015x1720 3200x1300x1750

Processing Picture
