High Intensity Plastic Material Mixer Machine High Mixing Efficiency European Standard
High Intensity Plastic Material Mixer Machine High Mixing Efficiency European Standard
High Intensity Plastic Material Mixer Machine High Mixing Efficiency European Standard
High Intensity Plastic Material Mixer Machine High Mixing Efficiency European Standard
Specifications
Brand Name :
ZHMC Machiney
Model Number :
500 / 1000 L
Certification :
CE
Place of Origin :
China
MOQ :
one unit
Price :
Negotiable
Supply Ability :
30 + unit +Per month
Delivery Time :
20
Packaging Details :
Wooden package
Stirring Type :
Spiral
Application :
Application
Heating method :
Dispersion Blender Mixer
Inverter :
ABB
Blades :
Tungsten Coated
Capacity :
200-5000L
Condition :
New
Description

European Standard Plastic PVC SPVC Powder Turbo Cooling High Speed Blender Mixer high intensity mixers

European Standard Plastic PVC SPVC Powder

Traditional mixing method is that people weigh and batch material manually, then move the mixed material to extruder also manually, this old way just fit for the small factory, and has many defects

1. Artificial mixing is easy to make a mistake, because this is a repetition work, so worker is tired easily. the weighing precision is not assured.

2. Labour intensity is large, human cost is high from long term view

3. Chemical raw material harms the worker's health.

4. In order to solve these problems, our company design this PVC automatic mixing weighing conveying system which the computer can automatically control weighing and batching, and feeding to extruder.

5. This mixing system consist of automatic weighing, after weighing, convey the material in to the mixer unit, than use the air-operation pipeline transport the mixed material to extruder.

The advantage of PVC mixing system

1. Automatic weighing controlled by computer, that improves the accuracy and efficiency of burdening, and reduces the chemical damage to worker.

2. The air-operation pipeline transportation reduces the cost of worker, and increase the production efficiency, and all the material is in the closed pipe, so avoid dust to pollute the factory.

Parameter

Model/Item Volume (L) Effective volume (L) Rotating speed (rpm) Motor power (kw) Discharging Weight (kg)
SRL-Z100/200 100/200 75/160 650/1300/90 12/22/7.5 PNEUMATIC 3000
SRL-Z200/500 200/500 150/320 460/920/90 30/42/11 PNEUMATIC 3500
SRL-Z300/600 300/600 200/360 475/950/90 40/55/11 PNEUMATIC 3800
SRL-Z500/1000 500/1000 375/650 475/950/90 55/75/15 PNEUMATIC 5800
SRL-Z500/1600 500/1600 375/1200 475/950/68 55/75/18.5 PNEUMATIC 6500
SRL-Z800/2000 800/2000 600/1500 370/740/68 83/110/22 PNEUMATIC 8500

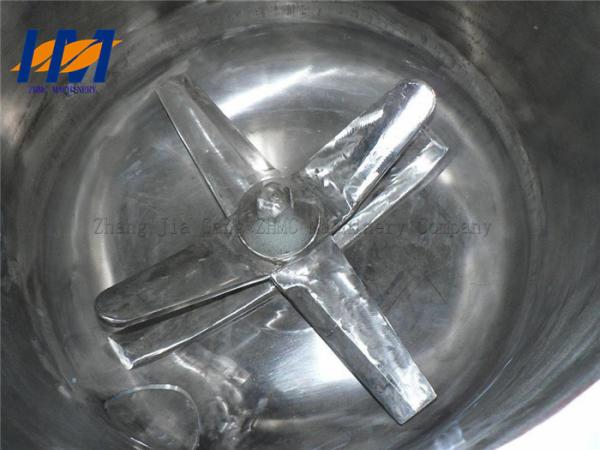

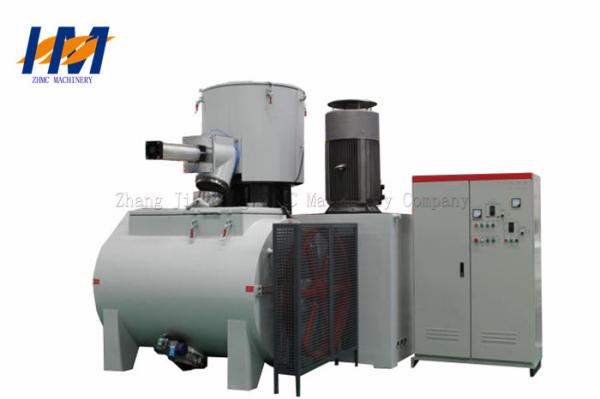

Detailed picture

High Intensity Plastic Material Mixer Machine High Mixing Efficiency European Standard
