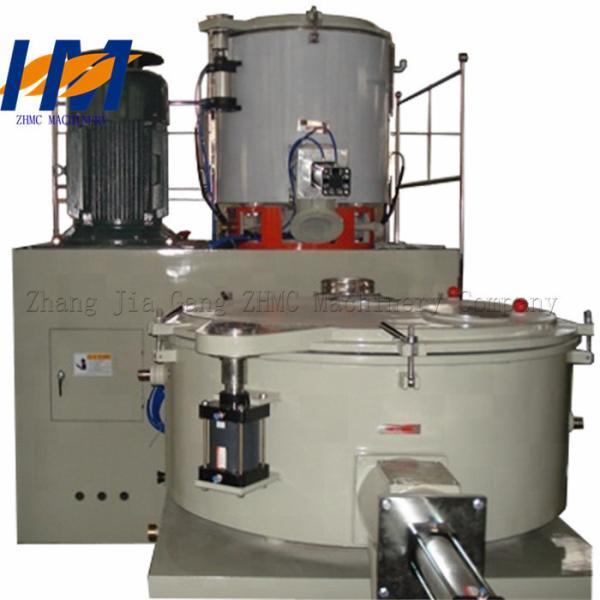

Fast Cooling Plastic High Speed Mixer , PVC Plastic Raw Material Mixer
Fast Cooling Plastic High Speed Mixer , PVC Plastic Raw Material Mixer
Fast Cooling Plastic High Speed Mixer , PVC Plastic Raw Material Mixer
Fast Cooling Plastic High Speed Mixer , PVC Plastic Raw Material Mixer
Fast Cooling Plastic High Speed Mixer , PVC Plastic Raw Material Mixer
Fast Cooling Plastic High Speed Mixer , PVC Plastic Raw Material Mixer
Specifications
Brand Name :
ZHMC Machiney
Model Number :
500 / 1000 L
Certification :
CE
Place of Origin :
China
MOQ :
one unit
Price :
Negotiable
Supply Ability :
30 + unit +Per month
Delivery Time :
20
Packaging Details :
Wooden package
Working :
Shear Mixer
Specification :
200 / 500L, 300 / 600L, 500 / 1000L
Layout Type :
Vertical
Inverter :
ABB
Cover :
Stainless Steel
Electrical Component :
Siemens, Omron, Schneider, FUJI
Condition :
New
Description

PVC High Speed Turbo Mixer high shear granulator hot mixer plastic mixers

PVC High Speed Turbo Mixer high shear Product Description


1. The PVC plastic hot and cold mixer is widely used for mixing, drying, and coloring for all kinds of plastic resin, especially for large production capacity.

2. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning. The structure of cooling mixer is horizontal type with spiral-shape stirring blades, without dead corner and prompt discharging within short time.

Application & Features

1. It is the basic equipment of plastic extrusion production line .
2. Two layers of sealing are adopted in the cover of the mixer and opened in pneumatic mode.The cooling mixer is a vaulted lid, not easy to take shape.
3. The blades have been passed the test of the dynamic and static balance testing machine.
4. Barrel wall undergoes precise grinder.

Service

1. ​Customer's requirement is our first priority. We could provide you reliable, fast and professional service through telephone, network and on-site at any time.

2. Normally, we send our customer one set of spare parts together with the machines when we deliver the product.
During the warranty, we provide new parts free of charge for you to replace, exclude the parts broken that caused by improper operation.
3. In our spare parts department, you will get professional technical advice, as well as the relevant information regarding all products and services.

Specification of high speed mixing

model/ Item Gross Capacity(L) Effective Volume(L) Motor Power(kw) Spindle Speed(r/min) Heating Mode Unloading Mode
SHR-5A 5 3 1.2 1400 Self friction Manual
SHR-10A 10 7 2.2/3.2 750/1500
SHR-25A 25 17.5 5.5 1440 electrical heating 2kw pneumatic
SHR-50A 50 30 42196 750/1500(510/1013) 4kw
SHR-100A 100 75 14/22 525/1050(650/1300) 6kw
SHR-200A 200 150 30/42 490/980 6kw
SHR-300A 300 225 40/55 480/964 9kw
SHR-500A 500 375 47/67 441/886 9kw
SHR-800A 800 560 83/110 330/660 Self friction

Model SHR-100 SHR-200 SHR-300 SHR-500 SHR-800
Pot volume (L) 100 200 300 500 800
Motor power(KW) 14/22 30/42 40/50 47/67 60/90
Paddle Speed 650/130 475/950 475/950 430/860 370/740
Heating method Electric and self-friction
Mixing time(min) 8-10
