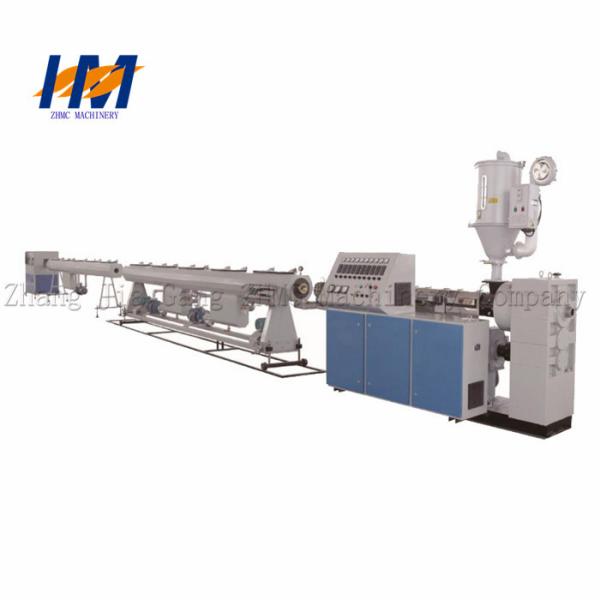

Reliable Plastic Pipe Extrusion Line , Electricity PVC Conduit Pipe Making Machine
Reliable Plastic Pipe Extrusion Line , Electricity PVC Conduit Pipe Making Machine
Reliable Plastic Pipe Extrusion Line , Electricity PVC Conduit Pipe Making Machine
Reliable Plastic Pipe Extrusion Line , Electricity PVC Conduit Pipe Making Machine
Specifications
Brand Name :
ZHMC Machiney
Model Number :
PP-PE
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
90 days
Packaging Details :
Wooden package
Sheet Thickness :
0.2-1.8mm
External Dimension :
16500mm * 2200mm * 2600mm
Plastic process :
PVC Particle
Specification :
16-800mm
Electronic Parts :
ABB / Rkc / Omron / Siemens
Motor :
Siemens
Description

Electricity Conduit Tube Water Sewage extrusion process plastic extrusion equipment

Description of PVC pipe machine production line

1. PVC pipe extrusion line is mainly used in the production of pressure water pipes, agriculture irrigation, building or city drainage and Sewage and constructional plumbing cable laying etc.
2. The unit consists of Conical twin screw extruder, PVC pipe mould-Vacuum calibration tank-Haul-off machine-Planetary Saw Cutting machine-Tripping table/Belling machine. Producing pipe diameter range: Φ160mm-Φ400mm.

3. And the line can be equipped with comptroller thickening instrument, computer ink-jet printer, crusher, shredder, pulverizer, water chiller, air compressor etc. to achieve the production and manufacture of high-grade tubing.

4. Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.

Extrusion Process

1 . Plastic pellets are fed into the barrel of the extruder and conveyed by the screw, the heaters which are outside of the barrel of the extruder as well as the friction from the rotation of the screw melt the plastic pellets into a sheet mold and then placed on a three-roll calender.

2 . The produced sheet goes through the bottom and middle roll,wrapping around back of the middle roll and then back to the top roll or other methods as shown in sheet calender picture, these rolls are helpful to take the heat out of the sheet.

3 . After the sheet comes off the roll,it moves down the conveyor to the end of sheet line where the edge trimmer cuts the sheet to width as well as a sheet shear cutter to length.

Product Sheet Line Detail

Suitable material Particle PVC
Max .width of product mm 1220
Thickness of product mm 2-5
Extruder capacity Kg/h 380
Installed capacity(approx) kw 168
Dimension (L*W*H)(approx) m 21*4*3.5
Total weight(approx) t 17

Model Pipe range(mm) Extruder model Capacity(kg/h) Speed(m/min)
WS-63 16-63 SJZ51/105 120 1.5-15
WS-110 20-110 SJZ51/105 120 0.8-8
WS-160 50-160 SJZ55/110 180 0.5-5
WS-250 75-250 SJZ65/132 300 0.4-4
WS-315 110-315 SJZ80/156 450 0.3-2
WS-450 200-450 SJZ92/188 650 0.1-1
WS-630 315-630 SJZ92/188 800 0.07-0.7

Product Display

Reliable Plastic Pipe Extrusion Line , Electricity PVC Conduit Pipe Making Machine
