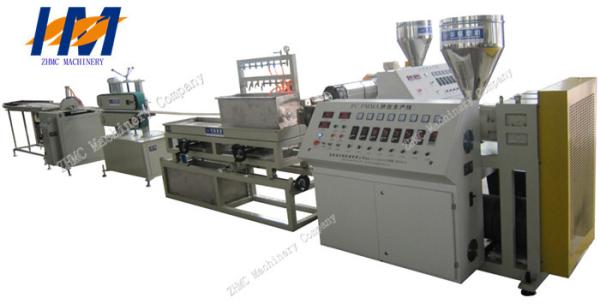

PP PE PVC pipe making machine plastic flexible pipe extrusion production line

Application of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine

Applied for manufacture of caliber PVC,UPVC water supply and drain pipes,electric conduit pipe, etc

Working flow of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine

Plastic extruder → mould → forming machine →pull off machine → cutter / winder

Advantages

1 . The extruder of HDPE pipe line adopt high efficiency screw & barrel, the gearbox is hardening teeth gearbox with self-lubrication system. The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.
2 . This PE pipe line is composed by material charger+ Single screw extruder + pipe mold + vacuum calibration tank + spraying cooling tank x 2sets + three caterpillar haul-off machine + no-dust cutter+ stacker.
3 . The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless steel 304#. The excellent vacuum system ensures the precise sizing for pipes; spraying cooling will improve the cooling efficiency; Auto water temperature control system make the machine more intelligent.
4 . The haul-off machine of this pipe line will adopt caterpillars type. With meter code, it can count the pipe length during the production. Cutting system adopt no-dust cutter with PLC control system.

Packaging & Shipping

1 . The machine body is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.

2 . The electric controlling parts and spare parts are loaded separately in wooden box.

3 . The auxiliary equipments are packaged in wooden box as well.

4 . All wooden material is fumigation certificated and safe for exporting to all over the world.

Applications

1 . This plastic extruder (conical two screw extruder, conical two-screw extruder, extruder, conical twin-screw extruder) machine is mainly used to process pp, pe, wpc, abs and other plastics.

2 . Equipped with auxiliary machines, it can manufacture profile, pipes, sheets and other plastic products and granulation.

3 . It has the advantage of simple production technological process, high output, stable quality and low cost.

SJZ Series conical double screw plastic extruders are especially suitable for various pvc powder to extrusion and molding.

4 . Equipped with different kinds of molds and auxiliary machines, it can produce various kinds of

pvc pipes, profiles, plates, bars and granulation.
