190KW Plastic Sheet Extrusion Line , PVC Sheet Making Machine 0.2-20mm Thickness
190KW Plastic Sheet Extrusion Line , PVC Sheet Making Machine 0.2-20mm Thickness
190KW Plastic Sheet Extrusion Line , PVC Sheet Making Machine 0.2-20mm Thickness
190KW Plastic Sheet Extrusion Line , PVC Sheet Making Machine 0.2-20mm Thickness
Specifications
Brand Name :
ZHMC Machiney
Model Number :
PP-PE
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
90 days
Packaging Details :
Wooden package
Warranty :
12 month
Power :
190KW
Plastic process :
PVC Particle
Sheet width :
300-2500mm
Material :
PVC PP PE
Working condition :
380 V
Description

PVC plastic sheet calendering extrusion making machine line extruder

PVC Plastic Sheet Line Features

1 . Width: 320-3000mm
2 . Thickness: 0.2--20mm
3 . Capacity: 150-500kg/hr
4 . Mono-layer and multi-layer sheet extrusion system for up to 5 layers
5 . Processing capabilities: PE, PP, PS and other thermoplastic materials

Sheet Application

Packing industrial, Stationery, Decoration,etc

Product Sheet Line Detail

Suitable material Particle PVC

Max .width of product

 mm 1220
Thickness of product mm 2-5
Extruder capacity Kg/h 380
Installed capacity(approx) kw 168
Dimension (L*W*H)(approx) m 21*4*3.5
Total weight(approx) t 17

Extrusion Process

1 . Plastic pellets are fed into the barrel of the extruder and conveyed by the screw, the heaters which are outside of the barrel of the extruder as well as the friction from the rotation of the screw melt the plastic pellets into a sheet mold and then placed on a three-roll calender.

2 . The produced sheet goes through the bottom and middle roll,wrapping around back of the middle roll and then back to the top roll or other methods as shown in sheet calender picture, these rolls are helpful to take the heat out of the sheet.

3 . After the sheet comes off the roll,it moves down the conveyor to the end of sheet line where the edge trimmer cuts the sheet to width as well as a sheet shear cutter to length.

Product Display

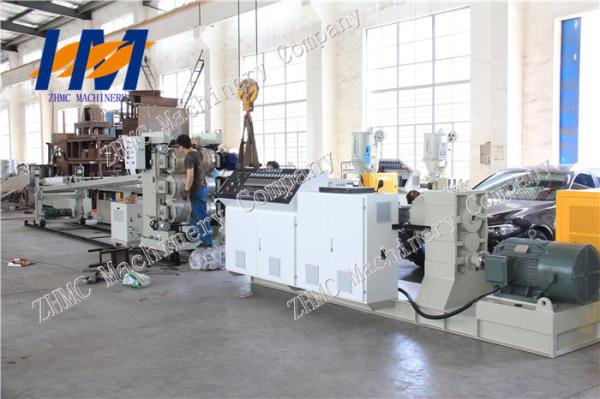

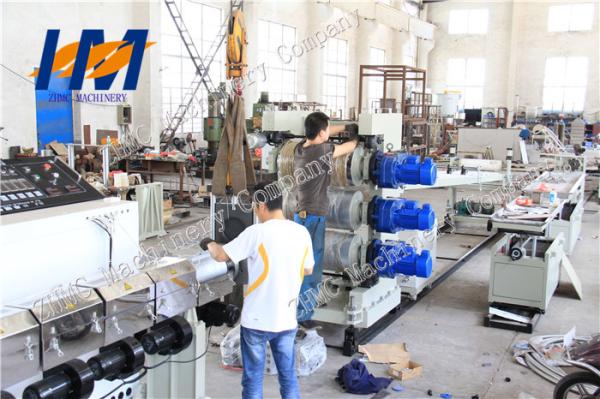

190KW Plastic Sheet Extrusion Line , PVC Sheet Making Machine 0.2-20mm Thickness

Product tags

pvc sheet manufacturing machine

,

pvc sheet extrusion machine

,

pvc sheet manufacturing process
