22kw Waste Plastic Recycling Machine Eco - Friendly Small Size For PET / PVC
22kw Waste Plastic Recycling Machine Eco - Friendly Small Size For PET / PVC
Specifications
Brand Name :
yiming
Model Number :
YMMF-400
Place of Origin :
zhangjiagang
MOQ :
≥1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
12
Delivery Time :
25work days
Packaging Details :
Wooden packing
power :
22kw
Main Motor Rev :
3900rpm
Dusting :
bag
Draft Fan :
4kw
Material :
SKD11
Breaing :
NSK
Description

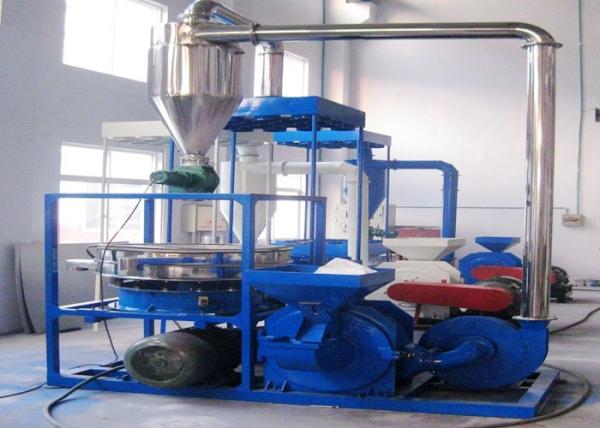

PP400​ Plastic Pulverizer Machine

Million Ming Machinery produced PP400 grinding machine features as follows:


1, PP material is prone to fusible, sticky material in PP400 milling machine operation, and our company for this feature, you can put PP into powder material


2, PP material yield is low, with 10 million Ming machine plastic grinding machine, the maximum output of up to 500kg/h


3, PP400 mill with air-cooled, water inlet to complete water cooling


4, user-friendly design, easy to learn


5, fully comply with the state policy, no dust pollution

Feature

1, Compared with other pulverizers, the capacity is 20-50 percent increased with same power and the energy is saved.

2, Install the dust collection device, reduce the dust pollution effectively.

3, The labor is reduced with fan discharge.

4, The door of main machine can be opened which is convenient to maintain and replace blades.

5, Adopt double cold(water and fan),the inner temperature of body is decreased and the material pulverized is not distortional. t is beneficial to pulverize the thermo-sensitive plastic, for example PVC,PE,PET,LDPE,PS,EPS,XPS,ABS,EVA,PPC.

Usage

1, With water spray cooling system. it is suitable for processing of thermal sensitive material. With unique water spray cooling system. When the temperature of main machine is higher than setting temperature, water spray automatically until the temperature decreased normally.

Note: less of water spray into to machine will be dryed quickly which will not affect material properties. It can be installed by your requirements.

2, The raw material become power by vibration principle of ultrasonic vortex wave pressure which is from the high speed rotating of main shaft.

The material is conveyed to screening system by wind conveying. The coarse materal is back to the milling chamber automatically, then pulverized again.

3, The blade adopt high quality steel which is treated by heating.after heat treatment, with good abrasion resistance. It is suitable for continuous running.

4, This size of machine is small with compact structure, fully sealed, no dust overflow.

5, The material is transferred based on own wind pressure.

Technical Specification

Type YMMF-400
Electricity 380V/3PHASE/50HZ
Power Main motor 22kw
Fan 4kw
Main motor Rotating motor Φ410mm
Fixed blade Φ410mm
Feeding automatic vibration
Colling mode water AIR-cooled
Rotating speed minute 3900rpm
Capacity H 50-120KG

Electrical

Equopment

Shaft

 contactor1 delixi CJX-2-100 220V
contactor2 delixi CJX-2-150 220V
SKF 6312
Dusting bag

Protection

equipment

High and low voltage protection

Overload protection

Suction device

Dust collecting bag protection with 9 bags
