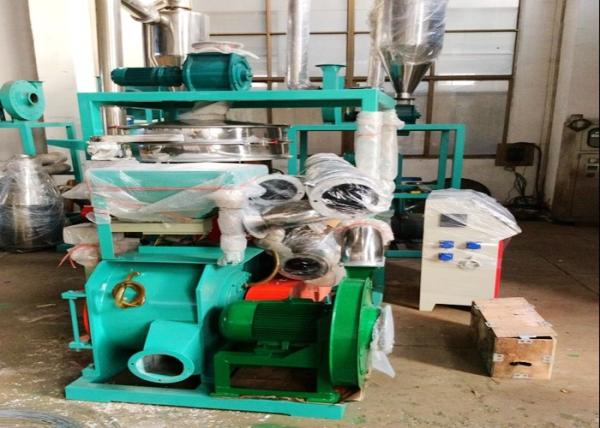

Infusion Tube PVC Pulverizer Machine Dust Free Double Cooling System Fully Sealed
Infusion Tube PVC Pulverizer Machine Dust Free Double Cooling System Fully Sealed
Specifications
Brand Name :
yiming
Model Number :
YMSMP-500
Place of Origin :
zhangjiagang
MOQ :
≥1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
15
Delivery Time :
25 work days
Power :
37KW
Capacity :
80-250KG/H
Rotating motor :
24pieces
Fixed blade :
12piece
Material :
SKD11
Breaing :
NSK
Description

Infusion tube Pulverizer Machine

The PVC infusion tube is a widely used plastic material, which is ground into PVC powder and can be used more widely for PVC.
PVC infusion tube mill is specially for PVC material grinding equipment, PVC infusion tube mill features are as follows:
1, turbine planning, high output, small losses.


2, integrated planning, more manpower, easier to operate.


3, dust-free planning, to ensure environmental protection request.


4, sub cold, water-cooled double cooling, effectively reducing material heating and equipment life.
PVC mill used more and more widely, look forward to the broad masses of customers to purchase our PVC infusion tube mill.

Main Features

1. Simple adjustment of cutting gap
2. Fast and easy replacement and adjustment of discs
3. Easy temperature control
4. Low drive power, cost effective operation
5. High throughput
6. Long service life of the disc when sharpened
7. Low residence time means lower thermal stress on the process material

Usage

1, With water spray cooling system. it is suitable for processing of thermal sensitive material. With unique water spray cooling system. When the temperature of main machine is higher than setting temperature, water spray automatically until the temperature decreased normally.

Note: less of water spray into to machine will be dryed quickly which will not affect material properties. It can be installed by your requirements.

2,The raw material become power by vibration principle of ultrasonic vortex wave pressure which is from the high speed rotating of main shaft.

The material is conveyed to screening system by wind conveying. The coarse materal is back to the milling chamber automatically, then pulverized again.

3, The blade adopt high quality steel which is treated by heating.after heat treatment, with good abrasion resistance. It is suitable for continuous running.

4, This size of machine is small with compact structure, fully sealed, no dust overflow.

5, The material is transferred based on own wind pressure.

Model YMSMP-500 YMSMP-600 YMSMP-700 YMSMP-800 YMSMP-1000
Grinding Disc Diameter(mm) 500 600 700 800 1000
Main Motor Power(kw) 37-45 45-55 55-75 75-90 9-110
Vibrating Sieve Power(kw) 0.75 0.75 0.75 0.75 1.1
Capacity(kg/h) 100-300 200-500 250-600 300-800 400-900

Infusion Tube PVC Pulverizer Machine Dust Free Double Cooling System Fully SealedInfusion Tube PVC Pulverizer Machine Dust Free Double Cooling System Fully Sealed
