2000kg/H Food Infrared Rotary Dryer Kill Germs
2000kg/H Food Infrared Rotary Dryer Kill Germs
2000kg/H Food Infrared Rotary Dryer Kill Germs
2000kg/H Food Infrared Rotary Dryer Kill Germs
2000kg/H Food Infrared Rotary Dryer Kill Germs
2000kg/H Food Infrared Rotary Dryer Kill Germs
2000kg/H Food Infrared Rotary Dryer Kill Germs
2000kg/H Food Infrared Rotary Dryer Kill Germs
Specifications
Brand Name :
LIANDA
Model Number :
LDHW-200
Certification :
CE,SGS,ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
USD 10,000-USD30,000
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
40 working days
Packaging Details :
Factory standard package or customized package
Applied for :
Food: Corn,black pepper, white pepper,nuts etc
Used for Kill Germs :
Yes
Residual moisture :
Can be dried to less than 1%
Drying time :
In minutes instead of hours
Roasting :
Various roasting levels
Delivery time :
30 working days
Certificate :
CE,IS09001, SGS
Package :
Factory standard package or customized
Installing :
Supply
Voltage :
380V,Customer Standard
Automatic grade :
Automatic
Condition :
New
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,commissioning and training,Online support,Video technical support
Production capacity :
300-2000kg/h
Keywords :
Food dryer machine, Food Infrared rotary dryer, Food Kill germs machine
Motor :
Wannan Motor,Siemens
Description

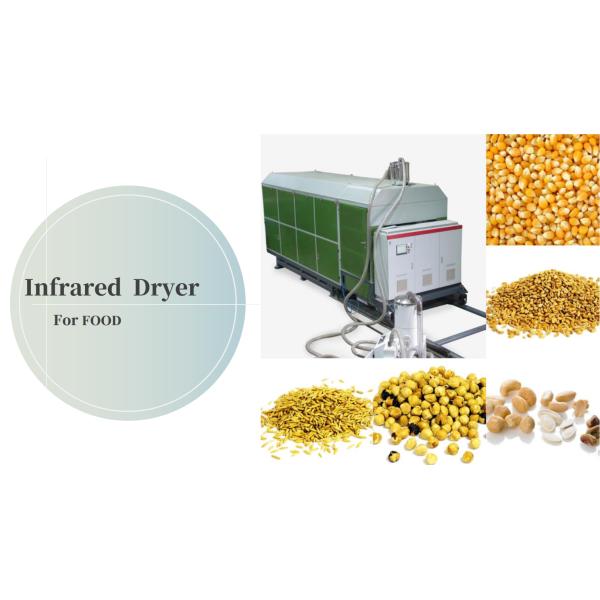

Food Infrared Rotary Dryer,Food dryer machine,kill germs, keep material sensor

To establish the most convenient and effective method to dry tangerine peels, different methods (sun drying, hot-air drying, freeze drying,
vacuum drying, and medium- and short-wave infrared drying) were exploited. Our results indicated that medium- and short-wave infrared
drying was the best method to preserve nutraceutical components; for example, vitamin C was raised to 6.77 mg/g (D.W.) from 3.39 mg/g (sun
drying).
Moreover, the drying time can be shortened above 96% compared with sun drying. Importantly, the efficiency of DPPH radical scavenging was enhanced from 26.66% to 55.92%. These findings would provide a reliable and time-saving methodology to produce high-quality dried tangerine peels

2000kg/H Food Infrared Rotary Dryer Kill Germs

What Can We Do For You ?

2000kg/H Food Infrared Rotary Dryer Kill Germs

2000kg/H Food Infrared Rotary Dryer Kill Germs

HOW TO WORK

2000kg/H Food Infrared Rotary Dryer Kill Germs

1. Material Feeding 2. Rotary Drying 3. Discharging

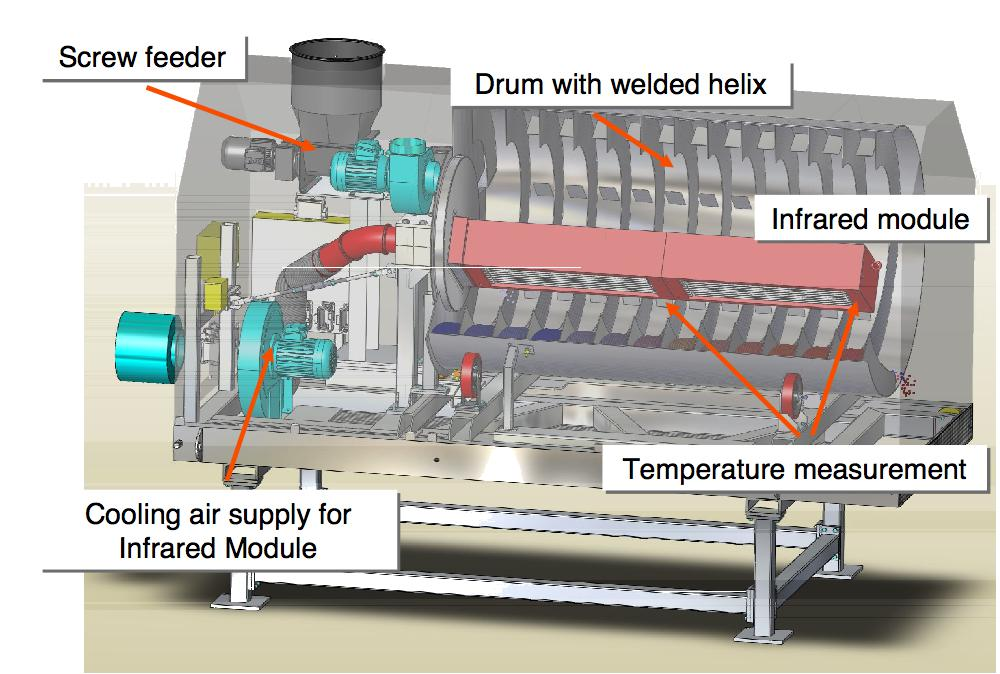

Machine structure

2000kg/H Food Infrared Rotary Dryer Kill Germs

1.Screw feeder Convey the material to the Infrared dryer drum

2.Material flow helix channelThe entranced material flow will go by welded helix channel on the drum surface while the Infrared moduleum rotates. During the processing, the material will be dried evenly by turning over and conveyed out

3.Infrared ModuleUsed to provide a heat source to evenly illuminate the material.
4.Infrared Temperature detectorImported from Germany, the temperature information of particles/Scraps in the drum will be fed back to Siemens PLC in time to realize the intelligent regulation of temperature

5.Cooling air for Infrared modeulePrevent dust from adhering to the wall of the lamp tube, affecting lamp life and heating efficiency; causing temperature difference in the drum, which is conducive to the diffusion of water vapor

WORKING VIDEO OF INFRARED ROTARY DRYER

2000kg/H Food Infrared Rotary Dryer Kill Germs

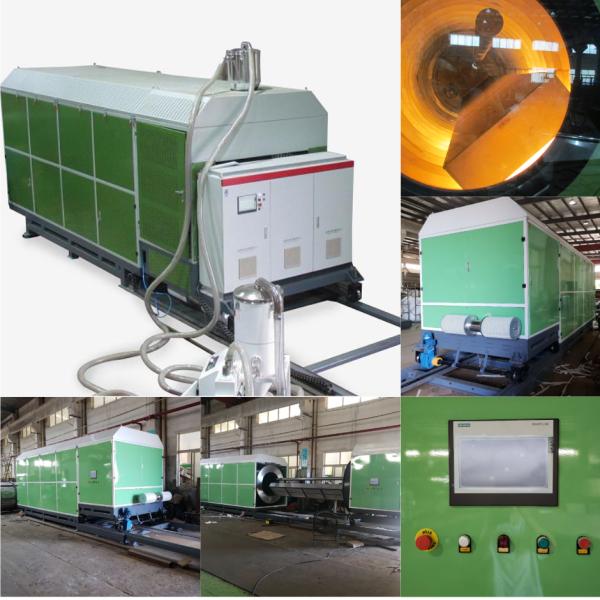

Machine Photos

2000kg/H Food Infrared Rotary Dryer Kill Germs

Contact Us

2000kg/H Food Infrared Rotary Dryer Kill Germs

2000kg/H Food Infrared Rotary Dryer Kill Germs

HOW TO ENSURE THE QUALITY!

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory



Our Service
2000kg/H Food Infrared Rotary Dryer Kill Germs
1. We will provide testing if the customer comes to visit factory to see the machine.
2. We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3. We will provide engineers for helping installation and training the workers at customer's site.
4. Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5. We will provide technical support and repair service in the whole lifetime .
