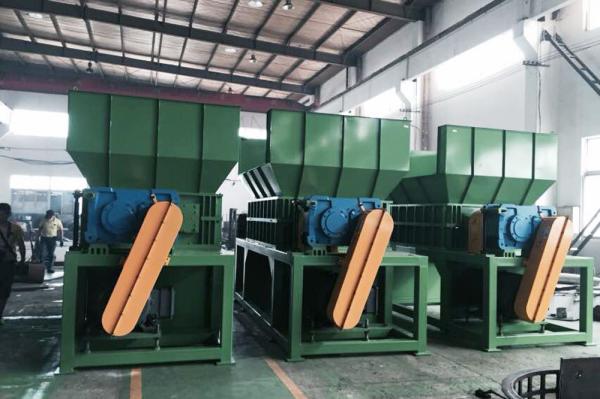

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
Specifications
Brand Name :
Lianda
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/year
Delivery Time :
5~8weeks
Packaging Details :
film packing
Applied :
plastic container, plastic drum,etc...
Voltage :
Customized
Warranty :
12 months
Service :
24 hours
Description

Double shaft shredder machine,plastic container shredder,plastic drum shredder,industrial plastic shredder,solid waste

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

LIANDA Design

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

Metal material:

Aluminum material,motor shell,oil drum, waste vehicle crust,ferrous waste, waste steel plate etc

Waste tires:

Car tire, truck tire,OTR tire etc

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

Electronic waste:

Waste fridge,TV, Washer etc

Plastics:

Plastic drums,packing case, plastic pallet, plastic can etc

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

Metal drum

 Industrial waste

Machine model

Model

Rotating

diameter

(mm)

Main shaft speed

(rpm)

Blade Thickness

(mm)

Blade quantity

(pcs)

Cutting chamber

(mm)

Motor power

(kw)
LD-800 320*2 20 40 22 800*650 18.5*2
LD-1000 360*2 20 50 20 1000*650 22*2
LD-1200 420*2 20 50 29 1200*800 45*2
LD-1500 514*2 20 50 32 1500*1000 110*2

Machine Details

1

Components of double shaft shredder

  • Rotary blades: cutting materials
  • Spacer: Control the gap of rotary blades
  • Fixed blades: prevent materials from wrapping around the blade shaft

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
Different material adopt different blade rotor model
German imported blade material have strong impact resistance, and broken metal knives will not break.
Both the inner hole of the tool and the spindle surface adopt a hexagonal design to realize the uniformity of the blade force.

The blades are arranged in a spiral line to realize efficient cutting.

2

The bearing is four-fold sealed, effectively waterproof and dustproof.

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
Split bearing seat design to facilitate bearing and rotor maintenance
3

Adopt planetary gear reducer, smooth running and shock resistant

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
4

Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor;

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
5 The equipment has passed CE certification and complies with EU safety standards

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
