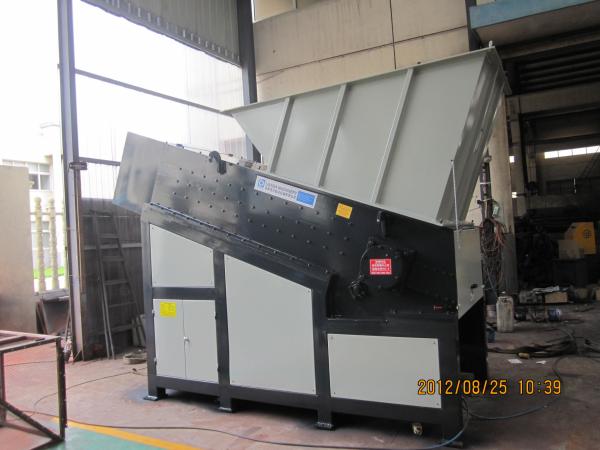

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
Specifications
Brand Name :
LIANDA
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T
Delivery Time :
5~8weeks
Shaft design :
Single shaft
After-sales service provided :
24 hours
Voltage :
Customized
Warranty period :
12 months
Color :
customized
Description

Plastic lumps, PP PE films single shaft shredder

Models:

Model 600 800 1200 1600

Motor power

(KW)

 22 55 75 132
Rotary blades Qty 26 45 64 120
Stable blades Qty 2 4 4 4
Rotating length 600 800 1200 1600
Blade material SKD-11, D2 or Customized

2.Machine Details

1

① Rotary blades ② Blades roller

③ Fixed blades ④ Sieve Screen

The cutting part is composed of a blade roller, rotary blades, fixed blades and sievescreen.

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm

The minimum installation gap between the rotary blades and the fixed blades is 0.1mm

Integral processing knife roller to ensure the cutting gap between the Rotary blades and the fixed blades

The blade can be installed detachably for easy maintenance
The motor drives the blade roller to rotate at a high speed through the reducer, so that the rotary blades mounted on the blade roller and the fixed blade form a cut. After one cut, if the size of the material is smaller than the diameter of the sieve screen, it will be discharged from the mesh, otherwise two or more cuttings on the raw material are carried out in the cutting room, and the material can be discharged until the discharge size is reached.

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
The screen can be disassembled and replaced to change the particle size of the material
2

Forced hydraulic feeding by pusher to improve production efficiency

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
Adopt high-strength screws to fasten, solid structure and durable.
3

Sealed bearing protection design, which can be waterproof and dustproof, and enlonger the service life of the bearing

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
4

External Bearing housing

Effectively avoid dust entering

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
5

Hydraulic system

Adjust pressure and flow according to different materials

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
6

Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor;

CE Plastic Lumps Shredder , Single Shaft Shredder Rotating Length 1600mm
7 Equipped with a cutter shaft cooling system for materials with low melting points to prevent the materials from being burnt due to excessive temperature.
8 The equipment has passed CE certification and complies with EU safety standards
