Vacuum Degassing PET Flake Industrial Plastic Granulator
Vacuum Degassing PET Flake Industrial Plastic Granulator
Specifications
Brand Name :
LIANDA
Model Number :
LDFR-500
Certification :
CE,SGS,ISO9001
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
40 working days
Packaging Details :
Factory standard package or customized package
Voltage :
380V 50HZ,Customized
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Application :
Granules
Screw design :
Parallel Double-screw
Plastic processed :
PET
Warranty :
1 Year
Name :
plastic extruding machine,Certificate European Level EPS Recycling Make Machine,High quality PET Pelletizing Line
Capacity :
150-1000kg/h
Raw material :
PET recycled flake
Description

PET flake Granulating line ,Twin-screw extruder, vacuum degassing,single screw extruder

OD TECH Design Advantage

1. Adopt Twin parallel screw Extruder

  • Output will be 10-15% higher than Single screw Extruder
  • Good in mixing and dispersion
  • Special design on Screw structure
  • In Normally parallel Twin-screw production, the internal pressure of the screw is relatively small which will affect viscosity and transparency of the particles. LIANDA has its own design which will solve the problem

Vacuum Degassing PET Flake Industrial Plastic Granulator

Vacuum Degassing PET Flake Industrial Plastic Granulator

Applied for

  • Plastic PET Flake

The production line is made up of

Vacuum Degassing PET Flake Industrial Plastic Granulator

No Machine Name Quatity (set)
1 Screw feeder 1
2 Twin-Screw Extruder 1
3 Dosing screw feeder 1
4 Vacuum degassing system 1
5 Hydraulic screen changer system 1
6 Pull strips mould 1
7 Water tank 1
8 Plastic strips bracket 1
9 Air dryer 1
10 Pelletizer 1
11 Air conveying system 1
12 Silo 1
13 Melt pump 1
14 Electrical cabinet 1

3.Working processing

1. Screw feeder will convey the PET Flake to Extruder’s feeder

Vacuum Degassing PET Flake Industrial Plastic Granulator

2. Dosing feeder: Adopt Pin cycloid reducing motor, frequency inverter speed control; Self-cleaning screw

Vacuum Degassing PET Flake Industrial Plastic Granulator

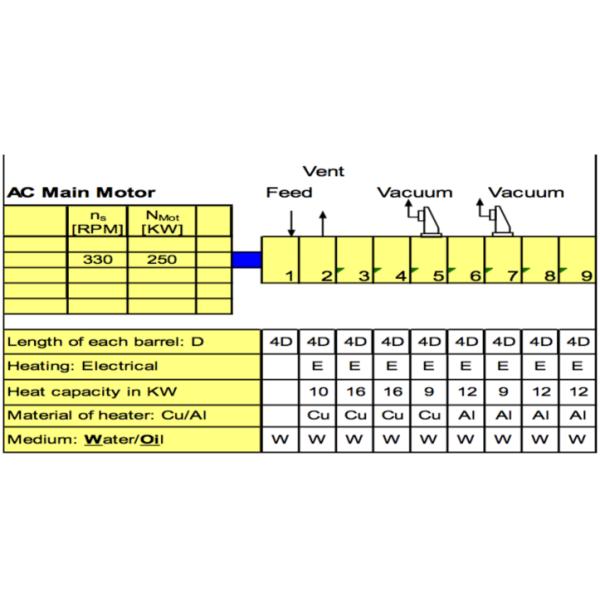

3.Parallel Twin screw Extruder

Vacuum Degassing PET Flake Industrial Plastic Granulator

Screw configuration: with modular structure, torque transmission by spline.

Vacuum Degassing PET Flake Industrial Plastic Granulator

Vacuum Degassing system

Vacuum Degassing PET Flake Industrial Plastic Granulator

Hydraulic screen changer system+ 6. Pull strips mould

Vacuum Degassing PET Flake Industrial Plastic Granulator

Adopt hydraulic plate form screen changer, no strips break while change the screen

7.Water Tank

Vacuum Degassing PET Flake Industrial Plastic Granulator

8. Air dryer + 9.Pelletizer

Vacuum Degassing PET Flake Industrial Plastic Granulator
