Specifications
Brand Name :
LIANDA
Model Number :
LDHD-200
Certification :
CE,SGS,ISO9001
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
40 working days
Packaging Details :
Factory standard package or customized package
power source :
380V 50HZ 3Phase or customized
used with :
injection molding machine or various plastic shaping machine
Applied for :
PP/PE PET PVC ABS or other plastic materials
warranty :
1year
certificate :
CE ISO9001 SGS
Name :
Plastic hopper dryer
Keyword :
Plastic dryer,plastic hopper dryer
service after sell :
on line support, video support, spare parts support
Description

Plastic Hopper Dryer

Hot air plastic hopper dryer are used to dry raw materials which are re-moisture due to packaging, transportation or recycling. The plastic hopper dryer can be used with injection molding machine or various plastic shaping machine. It will save energy by 27-65% and it will avoid the plastic raw material second moisture absorption after dried while it is placed on the inlet of main machine. The hopper dryer will shorten the injection time and improve the quality of finished product.

Injection Molding Dryer Waste Resin Plastic Machine, Factory Price Automatic Plastic Hopper Dryer Dehumidify

Hopper dryer Model

Model

Capacity

KGS

Heating power

KW

Blower

W

Dimension

MM

Bottom size

(KxKxD)MM
LD-G12KG 12 1.8 85 640*440*740 110*110*Φ40
LD-G25KG 25 3.5 135 800*420*850 150*150*Φ73
LD-G50KG 50 4.5 135 900*600*950 160*160*Φ73
LD-G75KG 75 5.5 210 900*600*1050 160*160*Φ73
LD-G100KG 100 6.5 215 1000*650*1050 177*177*Φ81
LD-G150KG 150 9 320 1300*700*1100 177*177*Φ81
LD-G200KG 200 12 320 1350*800*1400 200*200*Φ83
LD-G300KG 300 15 320 1300*900*1550 230*230*Φ114
LD-G400KG 400 18 410 1400*950*1600 280*280*Φ120
LD-G600KG 600 21 1030 1550*1150*1850 281*281*Φ134
LD-G800KG 800 24 2200 1770*1180*2540 280*280*Φ135

Injection Molding Dryer Waste Resin Plastic Machine, Factory Price Automatic Plastic Hopper Dryer Dehumidify

Hot air plastic hopper dryer Advantages:

  • Adopt a high-performance hot air diffusion device that evenly distributes hot air, keeps plastic drying temperature uniform and improves the drying efficiency
  • Unique curved design of hot air pipe to avoid dust accumulation
  • The barrel inside and inside parts are all made of stainless steel
  • The hopper drum is separated from the bottom, which is easy to clean and fast to change materials.
  • Proportional deviation indication temperature controller can accurately control temperature
  • Equipped with double overheating protection to reduce accidents caused by human or mechanical failure
  • Can provide preheating timing device, microcomputer control, and double-layer insulation barrel drum for customized
  • Full digital P.I.D control, LED status display
  • One week timed automatic start

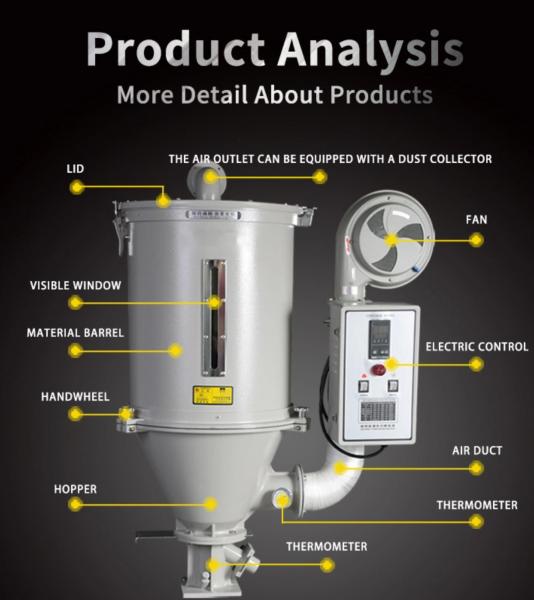

Hopper dryer structure drawing

Injection Molding Dryer Waste Resin Plastic Machine, Factory Price Automatic Plastic Hopper Dryer Dehumidify

  • Adopt LCD display controller, new man-machine interface;
  • Equipped with one-week timing automatic Start/OFF to save energy and be more convenience

Machine details
1

Adopt LCD display controller, new man-machine interface;

Injection Molding Dryer Waste Resin Plastic Machine, Factory Price Automatic Plastic Hopper Dryer Dehumidify

Equipped with one-week timing automatic Start/OFF to save energy and be more convenience.
2

Adopt Siemens Electrical elements, the quality will be more stable

Injection Molding Dryer Waste Resin Plastic Machine, Factory Price Automatic Plastic Hopper Dryer Dehumidify
3

Precision die-cast aluminum housing with smooth surface and good thermal insulation performance

 Injection Molding Dryer Waste Resin Plastic Machine, Factory Price Automatic Plastic Hopper Dryer Dehumidify
4

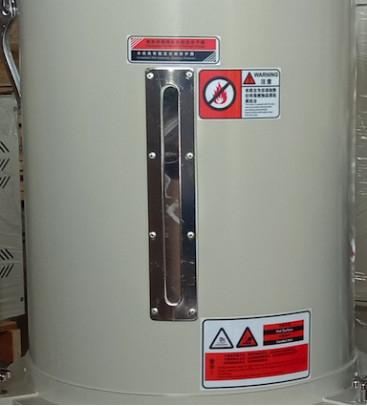

With visual material window, you can directly observe the internal raw materials
5

Other detailed photos shown

 Injection Molding Dryer Waste Resin Plastic Machine, Factory Price Automatic Plastic Hopper Dryer Dehumidify

Injection Molding Dryer Waste Resin Plastic Machine, Factory Price Automatic Plastic Hopper Dryer Dehumidify

Application examples:

Plastic granulates /pellets Hopper dryer for Injection molding machine

PE PP ABS Hopper dryer

Plastic hot air dryer

Plastic material Hopper dryer

Hot-air plastic scrap hopper dryer

Air dehumidifying plastic scrap/pellet hopper dryer machine

Turnkey project service:

1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer

HOW TO ENSURE THE QUALITY!

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory

AFTER-SALE SERVICE OF LIANDA MACHINERY!

● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
