500kg/H PET Plastic Recycling Washing Line For Bottle Crushing
500kg/H PET Plastic Recycling Washing Line For Bottle Crushing
500kg/H PET Plastic Recycling Washing Line For Bottle Crushing
500kg/H PET Plastic Recycling Washing Line For Bottle Crushing
500kg/H PET Plastic Recycling Washing Line For Bottle Crushing
500kg/H PET Plastic Recycling Washing Line For Bottle Crushing
Specifications
Brand Name :
JIN MACHINE
Model Number :
PE-250
Certification :
CE Certificate
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
60 work days
Packaging Details :
Standard wooden frame and wooden case is available for Jin Machine Excellent Rigid Packaging drying dryer for plastic recycling
Product Name :
Plastic Recycling Washing Line
Raw Material :
PET bottle flakes
Capacity :
200-500 kg/h
Application :
Bottle crushing & washing
Material :
304 Stainless Steel
Warranty :
12 Months
Description

200kg/h-500kg/h PET Bottle Recycling Washing & Cleaning Production Line​

1. Introduction of PET bottle washing line

A. Rigid Plastic(HDPE/PP/ABS/PC/PS/PET) Washing Line is one of the main recycling series of Jin machinery. This system has smart modular design aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling.

B. Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.

C. You can get a different module combinations design from KITECH according to your requirements and material's condition. In range of different raw materials, KITECH provides 400-5000kg/h economy and high-level production lines with different configurations.

2. What can our machines do for you?

A. High automation, only 2 workers are required to operate

B. High production capacity (more than 30% higher than the same equipment in the same industry), low energy consumption (water, electricity, gas, chemical cleaning agent consumption is 20% lower)

C. Reasonable process design and good cleaning effect

3. Working processing:

A. After getting waste plastic raw material, KITECH Technicians will study and analysis the main contaminants to provide a proper solution to remove most of the impurities by mechanical, chemical, physical and other principle.

B. Main process of whole project including pretreatment of raw material :

Step 1: crushing

Step 2: washing

Step 3: drying

Step 4: package

Step 5: granulation.

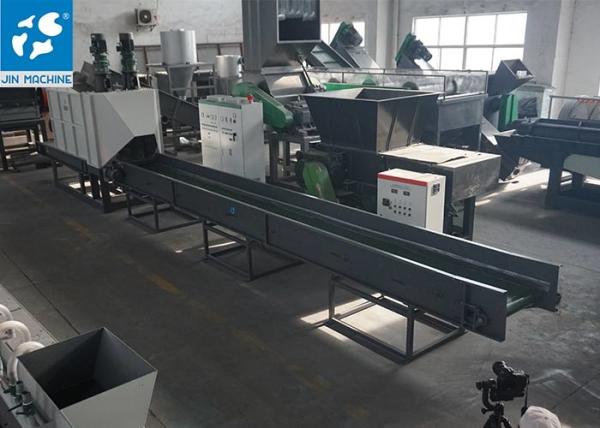

4.Configuration of the plastic washing line

Conveyor belt Loading material
Crusher Machine Crushing HDPE/PP/PC/ABS/PS/PET rigid plastic into flakes

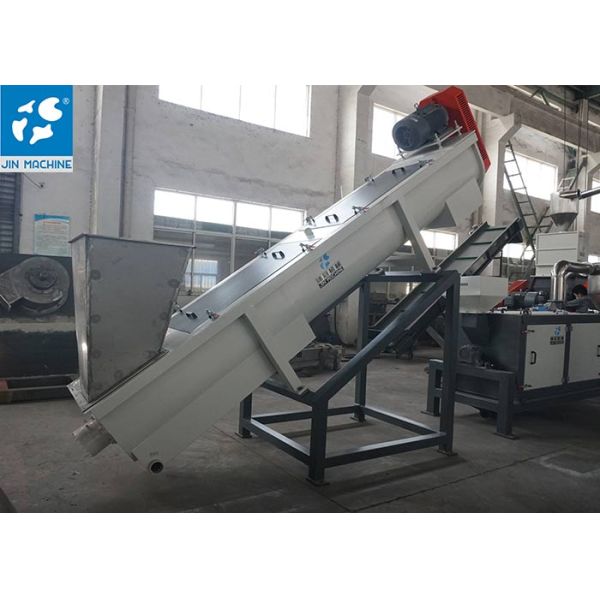

Screw loader Loading material
Low Speed Friction washing Remove chemical water/glue/dirty from flakes by friction principle and centrifugation
Floating washing tank Washing flakes to remove dust, sands, sludge, soil and other sink contaminants
Screw loader Loading material
Low Speed Friction washing Remove chemical water/glue/dirty from flakes by friction principle and centrifugation
Zig-Zag separating Remove dust/fines/labels
Dewatering Machine Reduce the moisture content of the material to below 7 without melting
Thermal drying Reduce humidity about 1-2% by adopting heating source from electricity and steam
Silo Storage material
Electric control panel Control the full line
