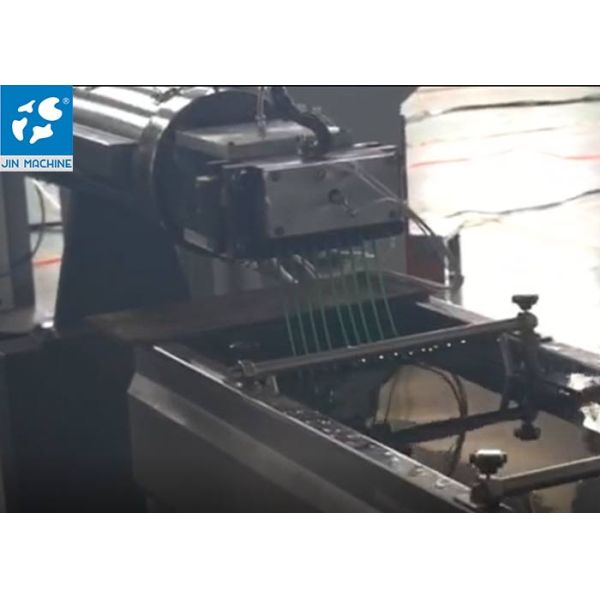

380V 250kg/H Recycled Pet Plastic Recycling Granulator Machine
380V 250kg/H Recycled Pet Plastic Recycling Granulator Machine
380V 250kg/H Recycled Pet Plastic Recycling Granulator Machine
380V 250kg/H Recycled Pet Plastic Recycling Granulator Machine
380V 250kg/H Recycled Pet Plastic Recycling Granulator Machine
380V 250kg/H Recycled Pet Plastic Recycling Granulator Machine
Specifications
Brand Name :
JIN MACHINE
Model Number :
JIN-75A
Certification :
CE Certificate
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
45 work days
Packaging Details :
Standard wooden frame and wooden case is available for Jin Machine Excellent Rigid Packaging drying dryer for plastic recycling
Application :
PET granulating
Material :
304 Stainless Steel
Raw Material :
PET Flakes or bottles
Motor :
Siemens Brand
Warranty :
12 Months
Production Period :
55 Days
Capacity :
250 kg/h
Description

250kg/h Recycled PET flakes plastic granules making machine line

1. Product Application:

TSSK parallel twin screw extruder with appropriate screws,dies and other auxiliary machine can directly convert thermoplastic filler, compounding, modified, degassing, stability of coloring and granulation equally. It is ideal machine for polymer chemical industry and plastic production.
It is also can be applied for PET flake pelletizing.

2. Configuration(according to your requirements)

NO. Description of goods Total Power Consumption Quantity
1 Screw Feeder ( Convey to 3000L Drying Hooper) 1.5 kw 1
2 CSG 3000 Dehumidifying Dryer 96 kw 1
3 Screw Feeder (Convey to SJ100
Extruder)		 1.5 kw 1
4 SJ 120 Single Screw Extruder 135 kw 1
5 Cooling bath - 1
6 Air Dryer 1.5 kw 1
7 Pelletizer 5.5 kw 1
8 Vibrating Screen 0.25 kw x 2 1
9 Crystallizer 35.5 kw 1
Total 277 kw

3. Main Parameter

  1. Material: PET Flakes (≤18mm)
  2. Output: 250kg/hr
  3. Initial Moisture content: ≤2500ppm
  4. IV Requirement: Before pelleting≥0.7, after pelleting ≥0.65
  5. Power supply: 380V/ 50Hz for three phase; should be reminded, if different.
  6. Install power: 277KW Power consumption: 140-175KW

4. project service:


1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
