1.5-5.5kw SS 220v 380v Vacuum Powder Feeder
1.5-5.5kw SS 220v 380v Vacuum Powder Feeder
1.5-5.5kw SS 220v 380v Vacuum Powder Feeder
1.5-5.5kw SS 220v 380v Vacuum Powder Feeder
Specifications
Brand Name :
JIN MACHINE
Model Number :
FEED-1
Certification :
CE Certificate
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
30 work days
Packaging Details :
Standard wooden frame and wooden case is available for Jin Machine Excellent Rigid Packaging drying dryer for plastic recycling
Application :
Conveying
Material :
304 Stainless Steel
Warranty :
12 Months
Production Period :
30 Days
Capacity :
Defferent Models
Structure :
Conveyor System
Power Type :
1.5-5.5kw
Voltage :
220v 380v
Description

Stainless Steel Electric automatic Conveyor Powder Vacuum Feeder system

Electric Vacuum conveyor depend on the vacuum pump( CWVC series vacuum convevor depend on the vacuum generator).when vacuum pump working, make the vacuum hopper in a vacuum state, then the powder will be suction into vacuum hopper by suction mouth.

Then pneumatic discharge door will open, and the powder will fall into received equipment, The discharge door is closed automatically when finish feeding.then the whole conveying process start again.

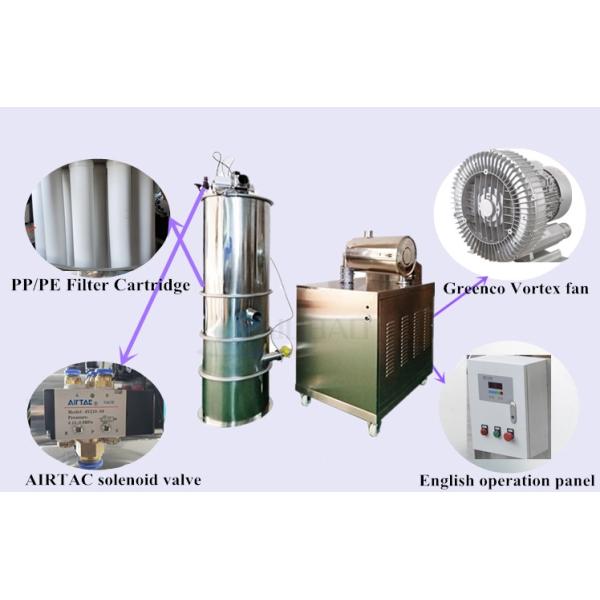

The vacuum feeder machine consists of vacuum pump(oil-free or water-free, ), vacuum hopper, filter,compressed air anti-blowing device,pneumatic feeding door device, automatic material level control device, stainless suction nozzle, conveying hose. The whole equipment is well designed and manufactured.

1.5-5.5kw SS 220v 380v Vacuum Powder Feeder

Technology parameter:

Note:The data based on when the conveying distance is 4 meters and the materials is flour

Model Motor Power(KW) Conveyor capacity(Kg)
BVC-1 1.5 200-400
BVC-2 2.2 300-600
BVC-3 3 400-1200
BVC-4 5.5 800-2500
BVC-5 5.5 1000-3200
BVC-6 7.5 2000-6000
BVC-7 7.5

2000-6000

(Conveying distance is meters)
BVC-8 11

FAQ

1..Materials name and density that you want to conveying(how's the liquidity of material)?


2.What's the capacity per hour?


3.We need to know the horizontal distance and vertical high that you want to conveying?


4.What equipment you want to conveying materials to? For example: sieving machine or packing machine.
