SGS Plastic Recycling Granulator Machine , PVC Compounding Granule Plastic Pellet Extruder
SGS Plastic Recycling Granulator Machine , PVC Compounding Granule Plastic Pellet Extruder
Specifications
Brand Name :
YUREFON
Model Number :
SJSZ65/132
Certification :
CE SGS
Place of Origin :
JIANGSU CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
D/A, L/C, T/T, D/P, Western Union
Supply Ability :
100SETS/YEAR
Delivery Time :
50DAYS
Packaging Details :
WOOD BASE AND WOOD CASE
Name :
PVC Granulating Machine
Screw Diameter :
65/132
Motor Power :
37kw
Screw Barrel :
Bimetalic
Gearbox :
Vertical Design High Torque
Extrusion Capacity :
300kg/h
Inverter :
ABB
Warranty :
18Months
After Sales Service :
Engineer Overseas Service
Description

Wire Cable Extrusion PVC Compound Granule Granulating Making Machine

Application:
Plastic PVC soft/rigid/cable pelletizing granulating machine is mainly used to produce the rigid & soft PVC granules for pipe fitting, cable,hose and PVC material recycling etc purpose.

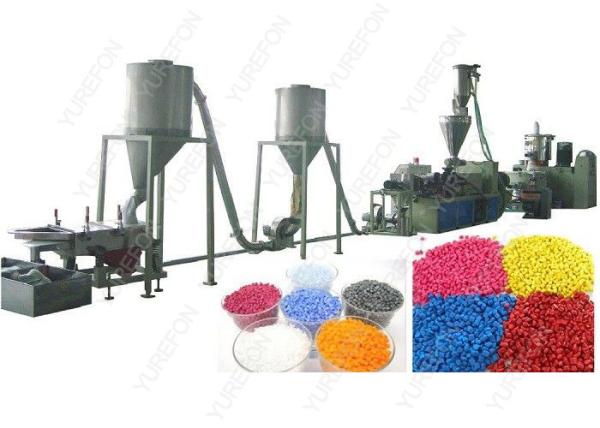

The unit consists of Conical double screw extruder-Die face cutter-Air cooling system-Weighing & Packing sysetm.
Out put capacity: 150-750kg/h.

Advantages:
♦ Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
♦ Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
♦ New design hot die face cutter with high output capacity and achieve high quality granules.
♦ Can equip with automatic weighing & packing system for final products.

Process flow:
Raw material+ additive → Mixing → Conveying feeding → Force feeding → Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing

Model
SJSZ45/90
SJSZ51/105
SJSZ55/110
SJSZ65/132
SJSZ80/156
SJSZ92/188

Power of drive motor(mm)
15
18.5
22
37
55
110

Screw diameter(mm)
45/90
51/105
55/110
65/132
80/156
92/188

NO. of screw
2
2
2
2
2
2

Rotational speed
45
40
38
38
37
36

Torsional moment of screw (nm)
3148
6000
7000
10000
14000
32000

Capacity pvc , powder (kg/h)
70
100
150
250
400
750

Central height(mm)
1000
1000
1000
1000
1100
1200

diamentions
3360*1290*2127
3360*1290*2127
3620*1050*2157
3715*1520*2450
4750*1550*2460
6725*1850*2460
