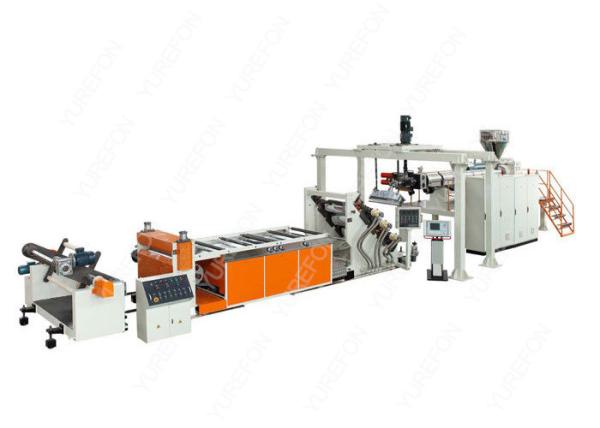

110 KW PP PS Pet Plastic Sheet Extrusion Line SJ120 With Bimetallic Screw Barrel
110 KW PP PS Pet Plastic Sheet Extrusion Line SJ120 With Bimetallic Screw Barrel
Specifications
Brand Name :
YUREFON
Model Number :
SJ120
Certification :
CE SGS
Place of Origin :
JIANGSU CHNA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20SETS/YEAR
Delivery Time :
120DAYS
Packaging Details :
WOOD BASE
Name :
PET Sheet Extrusion Line
Raw Material :
Pet Flakes/Granules
Screw Barrel :
Bimetallic
Motor :
Siemens Original
Main Electrical Parts :
Siemens Schneider
After Sales Service :
Engineer Overseas Service
Motor power :
110kw
extrusion Capacity :
350kg/h
Description

110 KW PP PS Pet Plastic Sheet Extrusion Line SJ120 With Bimetallic Screw Barrel

Machine Parts
1. PET Non-crystallization extruding system :The newest screw thread unit, low power consumption, high output, is suitable for PET sheet extruding.

2. Three roller calender: The high-precision three roller calender forming system, with servo control, hydraulic compress structure, is cuitable for the stable extrusion of sheet thickness at 0.15mm.

3. Precision die system:Can choose the self-regulation die to realize the change between extrusion mode and casting mode, is suitable for the sheet with different thickness.

4. Automatic rolling & cutting device:Easy to adjust, cuting straightness is high. Thickness: 0.8 - 10 mm, width:800-2000mm

SPECIFICATIONS FOR Pet/PETG/Petc Precision Sheet Making Machine

Model

SJ120-GF1200 high exfficient

GP-75/40-GF1000 Non crystalline

Extruder Model

SJ120/35 single screw

GP75/40 parallel double screw

Main motor power

110KW

132KW

Products thickness

0.15-1.5mm

0.15-1.5mm

Capacity

500kg/h

600kg/h

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)

1

Automatic vacuum feeding machine

1 set

2

High efficiency single screw extruder (65/33, 75/33,90/33,120/33)

1 set

3

Hydraulic exchanging unit

1 set

4

Melting gear pump

1 set

5

T-type /hanger type die head (JC-Times brand)

1 set

6

Three Roller Calendars (alloy steel material )

1 set

7

Rollers thermoforming machine

1 set

8

Cooling frame and edge cutting unit

1 set

9

Haul off machine

1 set

10

Plastic cutting machine-guillotine

1 set

11

Twin position sheet winder

1 set

12

Stacker

1 set

13

Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)

14

Spare parts

1 set

PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)

1

Air compressor

1 set

2

Industrial water chiller

1 set

PART 3 SHEET SPECIFICATIONS

1

Sheet width

600-800mm

2

Sheet thickness

0.2-2mm

3

Type

Pet single layer/mono layer sheets

4

Raw material

1. Can be virgin plastic pet material
2. Can be recyclable material, like PET Bottle Flakes

PART 4 SHEET APPLICATIONS

1

Packing, printing, stationery, art works etc.

2

Main Products: Gift/ad/file bag/lamp cover/food packaging
