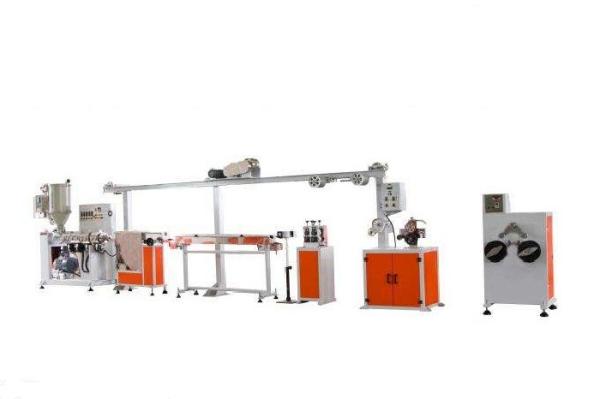

3D Filament Printing Single Screw Plastic Extruder With High Precision Extrusion Mold

Describtion of automatic single screw plastic extruder
1. Adopt the single screw extruder, and mainly used in extruding PE, PP, ABS, PS, PC, and so on
2. The extruder using the special designed single screw making the product forming well.
3. Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940.
4. Barrel temperature control though two section, the cast aluminum ring heater provide the hot temperature while the cooling fan with the help of air control the temperature zone.
5. The reduction box adopt the Germany technical which have long life span, low noise and lower hot.
6. The control panel: AC/DC motor ,SIMENS contactor

Professional 3D Filament Extruder Supplier has been used by designers, engineers and scientists to produce the disposable mechanical products and model, and it is already widely used in health care, education, toys, building, automobile, electronics, and anime field.

Feature:
1. Information of the PLA, PA Nylon, PC ,and HIPS and ABS filaments,
2. ABS filament process temperature is 230-260° C,melting point is 230° C
3. PLA 3D printer filament is 210-235°C, melting point is 200°C
4. PVA temperature for printer is 180°C-200°C.Melting point is 200°C.
5. PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C
6. PC temperature for printer is 230°C-250°CMelting point is 260°C.
7. HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.

Detailed information :
1. Produce process
I. Before produce extruding filament ,we will dry ABS and PLA for a enough time (1-1.5 hours).
II. Mix with colors masterbatch or colors powder, all which .
III. Adjust temperature and dragging rate , make filament diameter range at 1.7-1.8mm/2.95-3.05mm, roundness +/-0.05mm, each spool net weight 1kg+/-0.02kg
​​​​​​​
