Filament Grade 3000kg/h PET Bottle Recycling Washing Line with 13 Month Warranty
Filament Grade 3000kg/h PET Bottle Recycling Washing Line with 13 Month Warranty
Filament Grade 3000kg/h PET Bottle Recycling Washing Line with 13 Month Warranty
Filament Grade 3000kg/h PET Bottle Recycling Washing Line with 13 Month Warranty
Specifications
Brand Name :
STPLAS
Model Number :
ST PET
Certification :
CE SGS
Place of Origin :
JIANGSU,CHINA
MOQ :
1 set
Price :
Contact Us
Supply Ability :
30 sets/month
Delivery Time :
30-45days
Packaging Details :
film or plywood packing suit for shipping.
Payment Terms :
L/C, T/T
Automatic grade :
Automatic
Raw Material :
PET material
Voltage :
as per client's request
Material processed :
Crushing-washing-drying
Warranty :
13 month
After-sales service provided :
Engineers available to service machinery overseas
Description

Filament Grade 3000kg/h PET Bottle Recycling Washing Line with 13 Month Warranty

Description:

The PET bottle flakes produced by the filament-grade PET bottle recycling and washing production line are mainly used for the production of polyester filament, packing tape, sheet, film and other products.

Automatic control of the entire line, the associated operation of each unit of the system, has a pre-judgment function for possible abnormal conditions, to ensure the safety of the system.

Application Range:

* Carbonated drinks bottle
* Drinking water bottle
* Juice bottle
* Tea drink bottle

Feature:

  1. The crushing system adopts wear-resistant design to ensure the continuous operation of the system for a long time.
  2. Thermal cleaning effectively removes the residual adhesive, oil stains and some small impurities on the surface of the bottle flakes, which is critical to the life of the downstream product filter components and product quality.
  3. The cleaning drum is designed for high-pressure underwater cleaning to remove residual impurities.
  4. It can be equipped with the corresponding centrifugal dehydration and hot air drying system according to the water content set by the production requirements.

Technical Parameter:

Reference Table of Bottle Flakes' Quality Standards
Moisture Label PVC Viscose PP/PE Metal Total Impurities Flakes Size
≤ 1.5 ppm ≤ 20 ppm ≤ 30 ppm ≤ 20 ppm ≤ 20 ppm ≤ 20 ppm ≤ 150 ppm 8-14 mm or Customized

Land Occupation, Water and Electricity Demand

Capacity

(kg/h)

Total Power

(kw)

Area

(㎡)

Steam Requirement

(kg/h)

Compressed Air

(m³/min)

Water Requirement

(m³/h)
3000 650 1000 1000 0.7 4.5

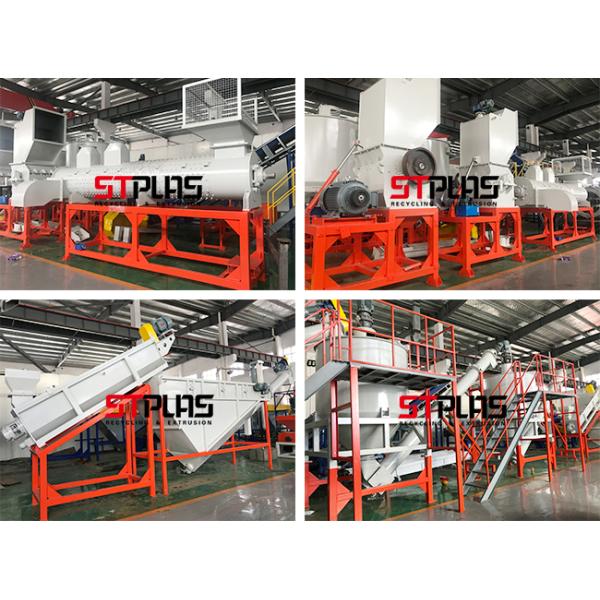

More Photos of PET bottle recycling washing line:

Filament Grade 3000kg/h PET Bottle Recycling Washing Line with 13 Month Warranty

If you want to know more informations,Welcome to contact with us.

Filament Grade 3000kg/h PET Bottle Recycling Washing Line with 13 Month Warranty
