Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers
Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers
Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers
Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers
Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers
Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers
Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers
Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers
Specifications
Brand Name :
STPLAS
Model Number :
STPLAS 01
Certification :
CE SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
23000-168000USD/LINE
Supply Ability :
5lines/month
Delivery Time :
30-80days
Packaging Details :
film package suit for shipping
Material :
304SS
Motor Brand :
Siemens or as your requirement
Screw :
special for film/bags/fiber
Compactor :
with cutter
pelletizer :
cutter with water
filter :
Double column double station or as requirement
Capacity :
80-2000kg/h
warranty :
one year for free and Lifetime maintenance
Description

Cutter compactor Plastic recycling machine for film/bags/fibers

Features:

- three in one, this compactor machine include crush, extrude and pelletizing function. With high efficiency, high output.

- The compactor with high temperature, make plastics small, and it also have cutter function, meanwhile evaporating water.

- Single screw extruder can be equipped with exhaust or non-exhaust, pelletizing method, screen changing device etc, according to the characteristics of plastic.

- Extruder is equipped with pressure sensors. Pressure sensor is used to detect pressure. When it’s time to replace filter screen, warning light will ring.

- Die-face pelletizing is expected to reduce manpower cost.

- Drivetrain: High torque precision gearbox. Low noise and steady operation.

- Dedicated screw and barrel design: The screw is specially designed for recycled materials based on their characteristics. The unique design ensures full degassing in operation.

- film recycling pelletizing machine can be used one stage or two stage ,depend on how clean of your raw material.

Plastic compactors reduce the original volume of the plastic by up to 90%. And any shape or memory of the plastic is destroyed, so the machines are ideal for recycling.

Machine Technical Parameter:

Extruder model Compactor Power (kw) Extruder Power (kw) Capacity (kg/hr)
SJ70 30 37 80-110
SJ85 37 55 180-250
SJ100 55 90 250-300
SJ120 75 110 300-400
SJ130 90 132 400-500
SJ150 90 160 500-600
SJ160 110 185 600-700
SJ180 160 250 800-1000

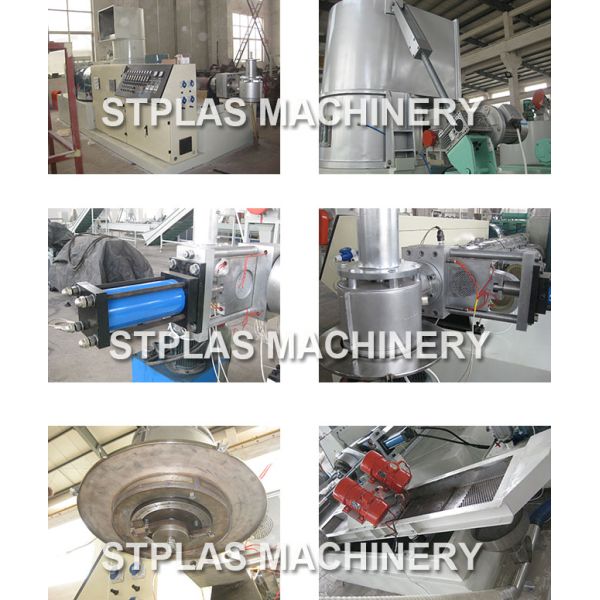

Some Photos of compactor plastic recycling machine for your reference:

Multi Function Plastic Waste Compactor Machine High Output For Film / Bags / Fibers

The complete recycling line is about below Items:

No Machine name
1 Belt Conveyor
2 Compactor with cutter
3 Single screw extruder (First stage)
4 screen changer
5 Single screw extruder (second stage) -Optional
6 Screen changer -Optional
7 cutter with water
8 Shaker
9 Dewatering Machine
10 Storage Hopper
