Specifications
Brand Name :
STPLAS Plastic Shredder Machine
Model Number :
ST1800 Plastic Shredder Machine
Certification :
CE Plastic Shredder Machine
Place of Origin :
JIANGSU,CHINA
MOQ :
1 set
Price :
9,600-128,000USD/SET
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
30-60days
Packaging Details :
Plywood package suit for shipping
application :
PVC ︳PE ︳PP ︳ABS
screen :
Various screen sizes
Ram :
the hydraulic ram pushes material against the roto
SHAFT DESIGN :
single
Power: :
Power: 90-180kw
Usage :
Usage: Waste Plastic Cusher
Keyword: :
One Shaft Plastic Shredder machine
Description
Description:
Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. There are four edges which are easy to change. ‘V’ shaped rotary cutters are fixed on single shaft. The fixed cutter is mounted at an angle in adjacent to rotary cutter to achieve better cutting. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also the knives are very easy to install and remove.

Specification

Model ST1-600 ST1-800 ST1-1000 ST1-1200
Push Power(kw) 1.5 2.2 2.2 5.5
Mainmotor power
(kw)		 18.5 37 37 55
Rotary blade 28 38 48 58
Stationary blade 2 2 4 4
Shaft diameter(mm) 220 400 400 400
Rotate speed(r/min) 90 85 80

75

Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder MachineWaste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine

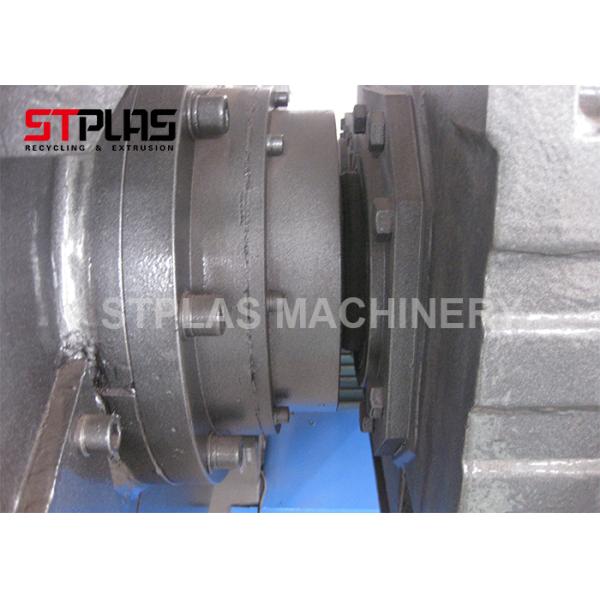

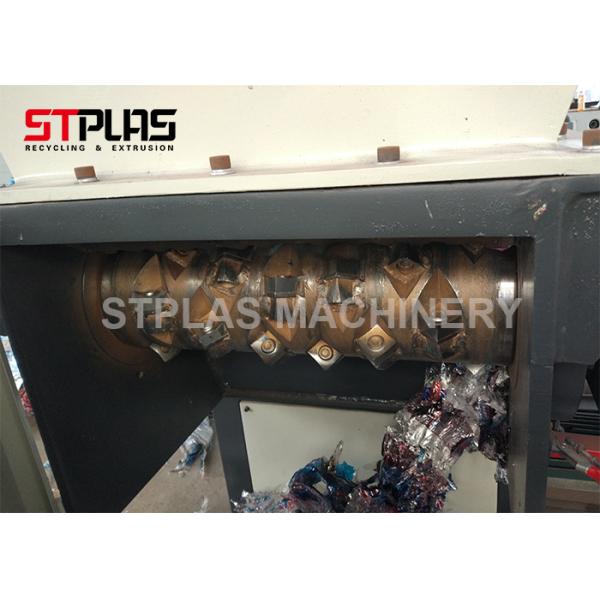

Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine ROTOR: Various rotor configurations available for processing a wide range of materials. Blades are made from hardened DC53 steel, the blades can be turned 4 times before changing. Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine GEARBOX: Water cooled gearbox guards against overloading. Hardened teeth on the reducer.
Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine CE CERTIFIED: Safety devices in line with European CE Certification Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine SHOCK ABSORBE: Absorbs vibrations caused by the shredding of the material. This protects the machine and its various parts from damage.
Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine
RAM: The hydraulic ram pushes material against the roto		 Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine BEARING SEAT: Protective bearing covers to avoid foreign contamination entering the bearing housing. Grease points to release oil at intervals to increase
Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine SCREEN: Various screen sizes. Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine HYDRAULIC STATION: The ram pressure and timing can be adjusted to suit different materials. From WT40 series and above the machine can be fitted with wind cooled two-speed pump.





We also can supply double shaft shredder, tyre shredder, four shaft shredder, shredder-crusher one unit, plastic extruder, waste plastic granulation machine.pls kindly knoted.
