STPLAS plastic screw press PP PE wet film squeeze machine squeezer
PP PE film squeeze machine is suit for PP PE film and bags squeeze machine. Final products like popcorn which can be used in granulating line directly. The capacity of PE film squeeze machine is 300kg/h, 500kg/h, 1000kg/h.
After clean and wash the dirty waste film, we have to squeeze the film. This squeezing dewatering machine for waste plastic recycle washing line is not only with high capacity but also with low energy consumption. The final moisture content can up to 3%. It will help you reduce the cost and improve productivity.
Now this film squeezer is very popular on the market, and it is loved by most film users.SUZHOU STPLAS technology is quite mature.
Features
1. Adopt the latest technology from Europen;
2. Suits for PP/PE film and PP woven bags;
3. Highly improve quality and productivity of the PP/PE granulating line;
4. Mositure of the final pellets: <2%

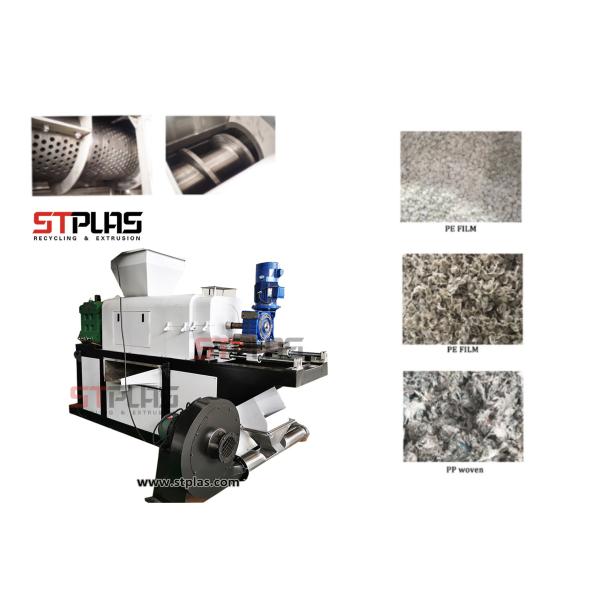

More Photos of PP PE wet film squeeze machine squeezer:
Main Technical parameter:
Model | STSQ-1000 |
Capacity | 800-1000kg/h |
Screw Diameter | Φ350mm(38CRMOAL) |
Rotary Speed | 60rpm |
Main Motor power | 160KW |
Heating Power | 12KW |
Cutting pellet motor | 5.5KW |
Pellets size | 12-20mm |
Fan Power | 7.5KW |
Storage Hopper | 1m3(stainless steel) |
Inlet size | 550*290mm |
Dimension | 3600×2350×2500mm |
Weight | 6.2tons |

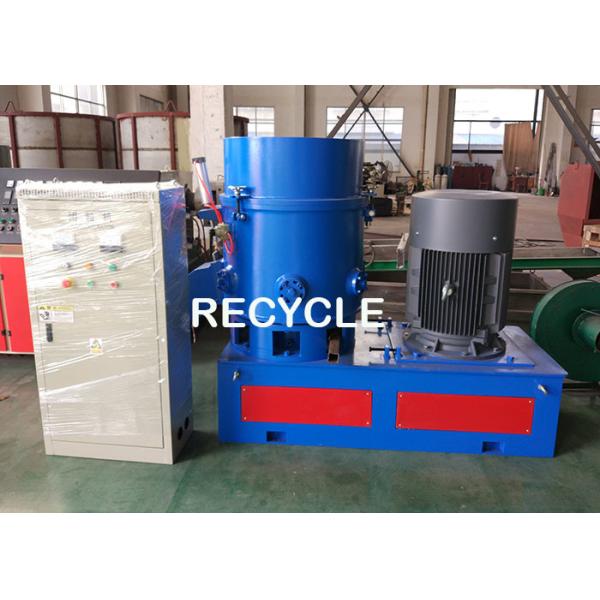

Plastic agglomerator machine optional:
Suzhou Stplas Machinery also can supply waste PP PE film crushing washing drying line(300-1500kg/h) and PP PE film pelletizing line (200-1000kg/h).
