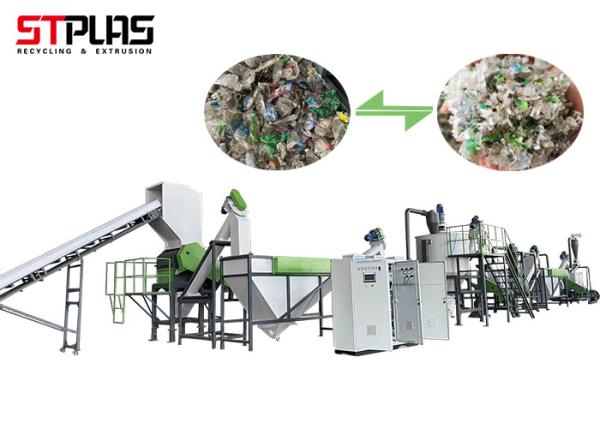

Cost-effective1000kg/h PET Bottle Washing Machine

Description:

1. The waste PET bottle crushing washing recycling machine line is used for crushing, washing, separating bottle caps and labels, separating impurities and rubber materials, and finally becoming dry and clean bottle flakes. These waste PET bottles will become recycled PET materials.
2. According to different production capacity and cleaning requirements, we have several different standard PET bottle crushing washing recycling production lines. The capacity of the PET bottle crushing washing recycling machine line is 500-5000kg/h...
3. Customers can choose a suitable PET bottle crushing washing recycling machine line to produce good quality PET plastic, which can be used for sales, drawing, production of PET pellets or bottle blowing.

Feature:

1. Conveyor:

1) Belt material: PVC (PVC belt is lighter than rubber, resistant to corrosion, not easy to age, and has a long service life).

2) Frequency conversion speed regulation

3) Height adjustable

4) Equipped with wheels, easy to move

5) Equipped with a tightening device.

2. Label Remover:

1) Service life: The blade and barrel wall are made of 10mm thick material, which can extend the life of the label remover by 3-4 years.. (Most markets are between 4-6mm)

2) Loss rate: Without affecting the rate of label removal and ensuring the output remains unchanged, our company reduced the speed of the rotating blade, thereby reducing the rate of damage to the bottle mouth and reducing the loss.

3) Humanity design: Easy to open the machine and replace the blade.

4) Separation rate: ≥99.5%.

3. Crusher:

1) The blade is externally adjustable, and the material DC53 adopts low temperature treatment, which has a longer life.

2) Anti-wear machine shell, wear plate can be replaced.

3) It is installed between the wall and the main shaft to prevent friction after the main shaft is running for a long time, resulting in increased sealing clearance and leakage.

4) Hydraulic control/electric screw control.

4. Hot Washer:

1) Electric heating and steam heating can be selected.

2) Caustic soda concentration: about 1-2%.

3) Power of full mixing paddle and motor: 4-7.5KW

4) Use a special paddle to stir the flakes with water inside, and the flakes will be kept in the hot scrubber for at least 12 minutes to ensure all cleaning.

5) PH value automatic detection control system

6) Temperature Controller

7) Hot water can be reused through our special design, saving 15%-20% energy

8) Bottle cap separation and collection design

Basic Configuation Parameter:

More Detail Photos:

De-baler machine

Metal detector automatic separation device

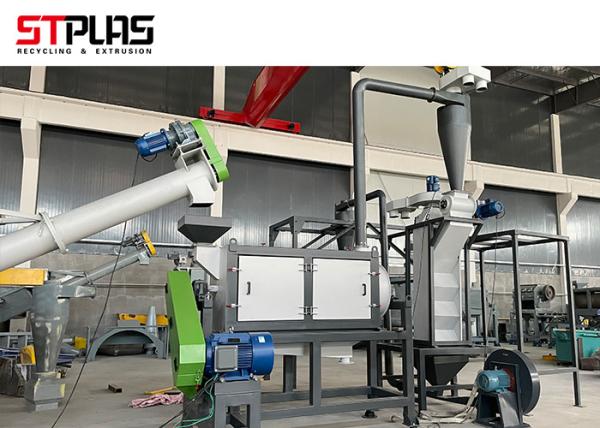

Steam washer(hot washer) + de-watering

Stplas is a factory specialized in waste plastic recycling area​ for more than 16 years. We have pour own rofessional engineer team. Engineers have more than 20 years of technical experience on average.

We provide professional pre-sale technical consultation, we also provide after-sales service that makes you rest assured.
