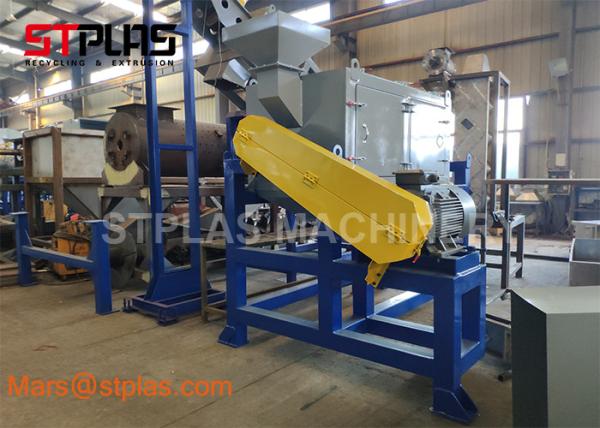

PP PE Plastic Film Washing Line / PP Jumbo Woven Bag Recycling Machinery
PP PE Plastic Film Washing Line / PP Jumbo Woven Bag Recycling Machinery
PP PE Plastic Film Washing Line / PP Jumbo Woven Bag Recycling Machinery
PP PE Plastic Film Washing Line / PP Jumbo Woven Bag Recycling Machinery
PP PE Plastic Film Washing Line / PP Jumbo Woven Bag Recycling Machinery
PP PE Plastic Film Washing Line / PP Jumbo Woven Bag Recycling Machinery
Specifications
Brand Name :
STPLAS
Model Number :
bottle washing recycling line
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
10 lines/year
Delivery Time :
30-80days
Packaging Details :
film packing suit for shipping
Type :
Multi-Layer Co-Extrusion Film Blowing Machine
Capacity :
>300kg Per Hour or Customized
Process Material :
PP/PE Film
Final Film Size :
30-50 Mm
Power :
380V 50HZ or Customized
Dimension(L*W*H) :
85M*7M*5.2M
Function: :
remove oil, impurities.
Manpower :
3-5 Persons
Description

PP PE Plastic Film Washing Line / PP Jumbo Woven Bag plastic recycling machinery

This line is specialized designed for recycling plastic film. (PP/PE film, agriculture film)

1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 300_500kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to plastic.
4. Ideal impurity removal effect.

Raw Material-plastic recycling machinery
Waste Plastic, HDPE Bottles, PE/PP Film

Capacity Model-plastic recycling machinery
According to different plastic material
General Machine List Components-plastic recycling machinery
For PE/PP bottle,film and so on
Feeding Conveyor---Plastic Crusher machine---Flakes Floating washing tank---Frication washing system---dewatering machinery ---hot air drying system and the Packing system

Belt conveyor→Crusher → Double screw conveyor→High speed friction washer→Screw conveyor→Hot washer→Drainage screw→Screw conveyor→Vertical dewatering machine→Drying system→Zig zag air classify system→Storage hopper→Control cabinet

No Name Power
1 Belt conveyor 1.5kw
2 Crusher 37kw
3 Double screw conveyor 1.5kw *2
4 High speed friction washer machine 11kw
5 Screw conveyor 2kw
6 Floating washer 1.5kw+1.5kw+1.5kw
7 Drainage screw 1.5kw
8 Screw conveyor 1.5kw
9 Vertical dewatering machine 5.5kw
10 Drying system 36kw + 7.5kw
11 Zig zag air classify system 11kw +7.5kw
