Stainless Steel PET Washing Line Crushing Drying Plant With High Performance
Stainless Steel PET Washing Line Crushing Drying Plant With High Performance
Stainless Steel PET Washing Line Crushing Drying Plant With High Performance
Stainless Steel PET Washing Line Crushing Drying Plant With High Performance
Specifications
Brand Name :
STPLAS
Model Number :
BXPET
Certification :
CE
Place of Origin :
JIANGSU,CHINA
MOQ :
1 set
Price :
Contact us
Payment Terms :
L/C, T/T
Supply Ability :
30 sets/month
Delivery Time :
60-90 days
Packaging Details :
film or plywood package suit for shipment.
Application :
PET Bottle Recycling
Production capacity :
500-5000kg/h
Color :
Customer Choice
Raw material :
PET Bottle Waste
Material :
SUS304 stainless steel
After-sales service provided :
Engineers available to service machinery overseas
Description

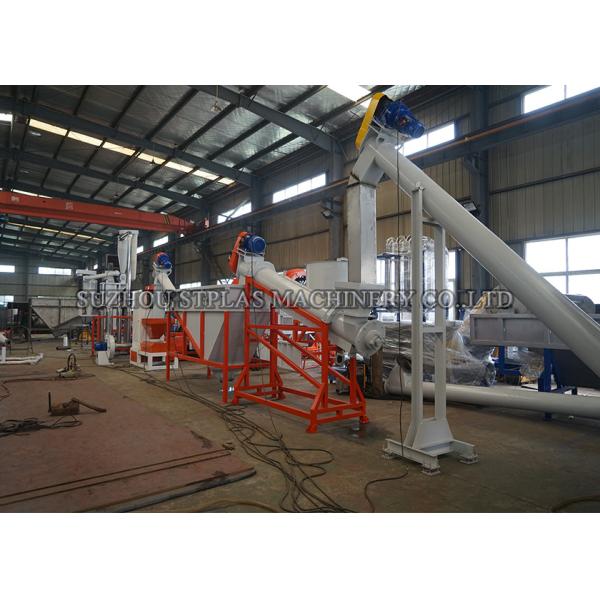

PET Crushing Washing Drying Plant PET Flakes Recycled Line PET Waste Wash Line

PET Crushing Washing Drying Plant Main Includes:

Belt conveyor, label remover, screw feeder, crusher, friction washer, floating washer, hot washer, dewatering machine, label separator machine, storage hopper, electric cabinet etc.

The actual configuration plan is based on customer demands and the actual situation of the raw materials.

Mian Parts of PET Flakes Recycled Line:

  1. Lable moving machine: Remove labels on PET bottles.
  2. Metal detector + automatic separation device: Automatically separate metal from bottles.
  3. Crusher: Crush bottles into small size.
  4. Conveyor & Screw loader: Send materials into next step.
  5. Hot steam washer: wash with hot water and detergent to remove oil, dirties and remaining labels.
  6. Friction washer: Through the injection of high pressure water, the effective removal of chemicals and impurities

500kg/h Main Washer Parameter:

Floating Washer Steam Washer Friction Washer

Screw diameter: φ300 mm

Material: SUS304

Depth: 2000 mm

Diameter of the barrel: 1500 mm

Rotating speed: 17 r/min

Rotating Diameter: 350 mm

Speed: 1200 rpm

Material: SUS304

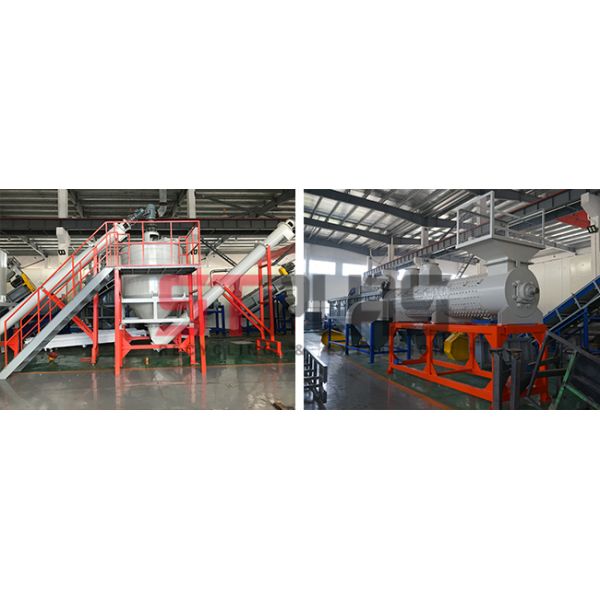

More Photos:

Stainless Steel PET Washing Line Crushing Drying Plant With High Performance

Stainless Steel PET Washing Line Crushing Drying Plant With High Performance

Why choose us:


1. We will run the machine for few days, and use your materials to do the test. Only guarantee the machine shows best performance, and the we will ship out.
2. Our elite team can provide you professional, customized, and all-around services around the clock. If you need any help,
contact us feel free.

Stainless Steel PET Washing Line Crushing Drying Plant With High Performance
