400kg/Hr LLDPE Waste Plastic Single Screw Plastic Extruder Machine
400kg/Hr LLDPE Waste Plastic Single Screw Plastic Extruder Machine
400kg/Hr LLDPE Waste Plastic Single Screw Plastic Extruder Machine
400kg/Hr LLDPE Waste Plastic Single Screw Plastic Extruder Machine
Specifications
Brand Name :
STPLAS
Model Number :
SJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
20 Set/Sets per Year pet granulator machine
Delivery Time :
30-80days
Packaging Details :
film scraping with wooden pallet for pet granulator machine
Screw diameter (mm): :
120, 120
Warranty: :
1 Year
Product name: :
pet waste plastic recycling granulator machine for plastic
Capacity: :
300kg/h-3000kg/h
Keyword: :
pet granulator machine
Usage: :
Pelletzing
Power: :
50HZ
Material Processed: :
Extruder
Plastic Type: :
Bopp, PE, PVC, PP/PE, PU, EPS, PP, PMMA, PC, ABS, PET, PET
Screw Speed (rpm): :
50 - 150 rpm
Description

This is 300-400kg/hr Full-automatic Lldpe Hdpe Waste Plastic Recycling Machine Or Small Plastic Granulator

Boxin have two types of PP PE pelletizer machine : one stage and two stags. mother baby Plastic pellet making machine is especially good for the raw material which contain high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and
contamination; And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter
contamination which can achieve stable extrusion.
This PP PE Plastic Granule Making Machine mainly do HDPE hard bottles ,PP PE hard flakes, or film, bags after
agglomerating,Adopting special screw design and different technical ,it also can produce etc. various plastic recycling and color mixing pelletizing.

Main Features
1) Single stage extruder and double stage extruders can be used according to user's requirement or material condition.
2) Plastic pelletized polyethylene (PE), polypropylene (PP), polystyrene (PS), polyvinyl chloride (pvc), PET, HDPE, ABS and other engineering plastics or general plastics recycling and granulation.
3) Granules cutting type: water ring face cutting, strip/noodle type cutting and hot cutting;
4) Waste woven bags and waste film can be directly put into the granulation line without crushing.
5) The main engine is equipped with full automatic control cabinet and PLC operating system. It is easy to operate and has stable performance.
6) Low energy consumption, remarkable energy saving effect, high output, mechatronics. Plastic granulation

SJ series plastic granulator

No

Machine Name

QTY(SET)

Remarks

1

Belt Conveyor

1

2

Compactor/Agglomerator

1

3

Single screw Extruder

1

4

Sub-Feeder (to make modified pellets)

1

Optional

5

Screen changer

1

6

Die head

1

7

Water ring cutter

1

8

Hydraulic station

1

9

Vibrating screen Machine

1

10

Dewatering machine

1

11

Storage hopper

1


Single stage plastic film pelletizing machine

Model

ST-85/100

ST-100/120

ST-130/130

ST-160/160

ST-180/180

L/D Ratio

33:01:00

33:01:00

33:01:00

33:01:00

33:01:00

Capacity(kg/h)

150-200

250-350

450-550

650-750

800-1000

Installed Power(kw)

140

205

290

410

580

Manual Requirement

2-3

2-3

2-3

3-4

4-5

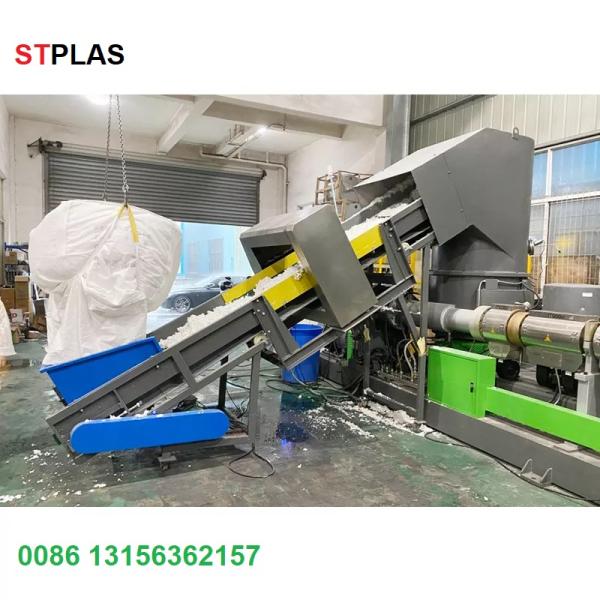

Belt conveyor

Belt conveyor : PVC material

Metal detector is optional to prevent metal materials from entering the extruder with raw materials (film)

400kg/Hr LLDPE Waste Plastic Single Screw Plastic Extruder Machine

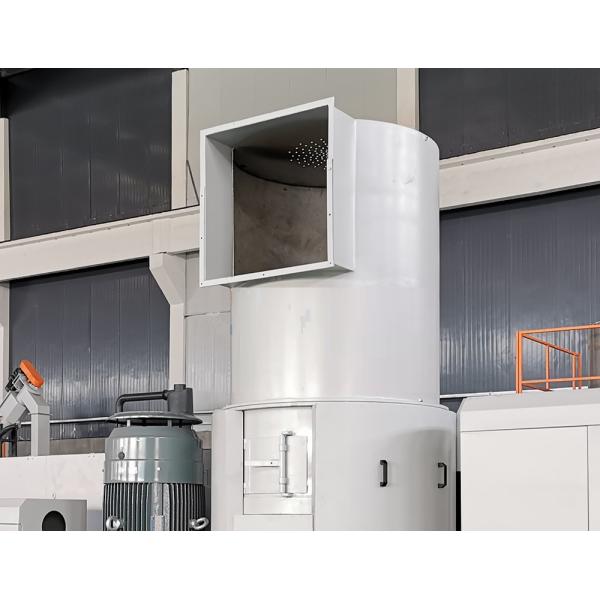

Compactor

Double layer cutting disc, more efficient feeding and 10% - 20% increase in output Hydraulic opening and hydraulic lifting, safe and easy to maintain .400kg/Hr LLDPE Waste Plastic Single Screw Plastic Extruder Machine

400kg/Hr LLDPE Waste Plastic Single Screw Plastic Extruder Machine

Advantages

1) Suitalbe for plastic film PP ,PE ,HDPE,LDPE,LLDPE and so on.

2) Equipped with the vertical and horizontal force-feeding device to ensure high output.

3) Vent design on the barrel to evaporate the volatiles form the recyle material.

4) Hydraulic screen change unit and pressure gauge for easy operation and safety.

5) Water chamber with die face cutter simplifes the process.

6) The vertical centrifuge separates and dry the pellets faster.

7) High-efficient force-feeder ensures high capacity feeding, low energy consumption

8) Plastic pelletizer style: water-ring cutting with extrusion mould, even cutting ensures good shape.

400kg/Hr LLDPE Waste Plastic Single Screw Plastic Extruder Machine
