Specifications
Brand Name :
MINGDI EXTRUSION
Model Number :
75/85
Certification :
CE,ISO
Place of Origin :
ZheJiang, China
MOQ :
one set
Price :
140000-200000$
Payment Terms :
T/T
Supply Ability :
200 sets per year
Delivery Time :
90 days
Packaging Details :
PE film & wooden pallet packaging
Width :
1200/1400mm
Thickness :
0.15-1.2mm
Capacity :
600/800kg/h
Material :
PP/PS/EVA
Application :
furniture veneer, food packaging, fruit and vegtable packaging,electronic product packaging,hot and cold drink cup lids
Core component :
Extrusion machine, screen changer, pressure sensor, metering pump, extrusion die, three-roll calender, drawing machine, automatic cutting system, electrical control system
warranty period :
one year
Core component shelf life :
one year
Suitable industry :
Food packaging industry, toy industry, Building materials industry, advertising industry, etc
Core selling point :
Twin screw, high production capacity and low energy consumption
Description

Zhejiang Ming Di high-end environmental protection multi-functional furniture veneer PP/PS/EVA sheet production line

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Production Characteristics

Professional customization: For furniture veneer needs, professional design PP, PS, EVA sheet production line, to ensure that the material performance meets the strict requirements of the furniture industry.

High quality materials: The production line is suitable for PP, PS, EVA and other raw materials, and the produced sheet has excellent wear resistance, scratch resistance, high temperature resistance and environmental protection.

Precision extrusion technology: efficient single screw extruder is used to ensure uniform material melting, stable extrusion and consistent sheet thickness.

Advanced control system: Equipped with Siemens PLC automatic control system, to achieve accurate control and real-time monitoring of the production process, improve production efficiency.

Application

PP/PS/EVA multi-layer sheet

Widely used in furniture veneer,food packaging,fruit and vegetable packaging, electronic product packaging, electronic product packaging, hot and cold drink cup lids.

Core Components

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Feeding form

Screw-type

Feeding capacity

 1000kg/h

Control mode

Variable frequency motor speed control

Converter

SIEMENS Siemens 3KW, using Ethernet control technology

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Feed rate

 1-30kg/h

Material conveying method

screw type

Deive motor

0.4KW Siemens servo motor

Control method

Siemens servo speed control

Servo drive machine

Siemens, using Ethernet control technology

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Band

Touyou

Structure form

175mm,

Full-network double-column screen changer with hydraulic station

Heating zone

Two zones

Heating power

Approx.10kw

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Brand

JCTIMEC

Rated speed metering

8-60r (revolutions)转/min

8-60r rpm

Model number

 E90,(371CC)

Gearbox and motor power

SIEMENS Siemens reducer, 7KW servo motor

Variable conversion control

Siemens, using Ethernet control technology

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Brand

JingCheng

Structure form

Hanger runner

Width of final product

 860mm

Thickness of final product

 0.2-1.0mm

Effective width of mold

Single-sided outer plug

Heating zone

 8zones

Heating power

 30KW

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

辊筒尺寸

Roller size

下辊直径400mm,中辊和上辊直径600mm

lower roller diameter 400mm, middle and upper roller diameter 600mm

辊筒宽度

Roller width

 1200mm

Roller materials

alloy steel

Roller surface roughness

mirror finish

Hardness

 ≥HRC60-62

Chrome layer thickness

 0.08mm-0.12mm

Drive motor

SIEMENS Siemens servo motor, 3 sets*7KW

Linear velocity

 6-60m

Reduction gear

SIEMENS Siemens Gearbox, 3 sets

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Edge triming assembly

1 group, 3 knives, 1 group of left, middle and right, adjustable distance

Cutter form

rotary cutter

Ferrules winding

a set

Ferrules winding drive

0.4KW servo-motor control

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Size

 Ф200mm*1200mm

Haul-off roller

Upper rubber rollers and lower steel rods, rubber rollers cover layer thickness 20mm, nitrile rubber, surface Shore hardness 65-70°

Drive motors

SIEMENS servo motor, 5KW

Roll cylinder opening and closing

Cylinder adjustment

Wait controllers

Using Ethernet technology control

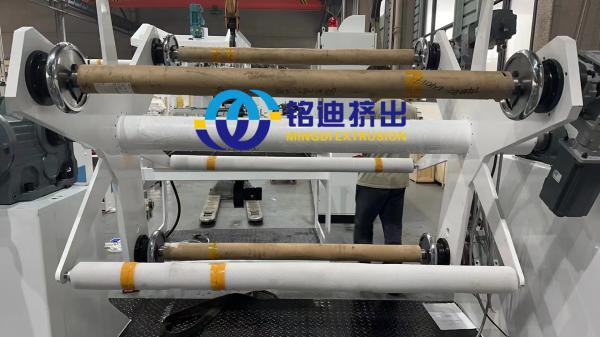

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Form structure

Flip-type double-station winder

Air-expanded shaft

3 inch, 6 inch general, both ends of the installation of mechanical clutch, convenient disassembly of gas expansion shaft

Maximum winding diameter

 1200mm

Drive the motor

A Siemens servo-motor

Unwinding method

Manual

Winding method

Automatic

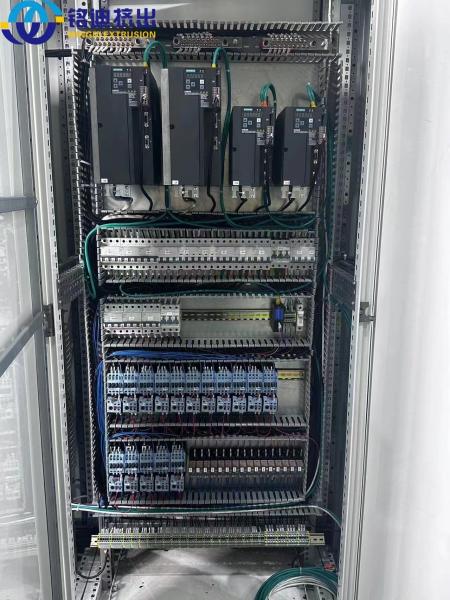

PP PS EVA Sheet Furniture Veneer Production Line Multi Functional 1200mm 1400mm

Control system

 PLC
CPU SIEMENS S7-1500
HMI SIEMENS 12 inches

Inverters

 SIEMENS

miniature Circuit Breakers

 SIEMENS

Small relay

Schneider

Solid state relay

Swiss Galle
