Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard
Specifications
Brand Name :
MINGDI EXTRUSION
Model Number :
75/85
Certification :
CE,ISO
Place of Origin :
ZheJiang, China
MOQ :
one set
Price :
20000-200000$
Payment Terms :
T/T
Supply Ability :
225 sets one year
Delivery Time :
90days
Packaging Details :
PE film & wooden pallet packaging
Width :
1200/1400mm
Thickness :
0.15-1.2mm
Capacity :
600/800kg/h
Material :
PP/PS/EVA
Application :
furniture veneer, food packaging, fruit and vegtable packaging,electronic product packaging,hot and cold drink cup lids
Core component :
Extrusion machine, screen changer, pressure sensor, metering pump, extrusion die, three-roll calender, drawing machine, automatic cutting system, electrical control system
warranty period :
one year
Core component shelf life :
one year
Suitable industry :
Food packaging industry, toy industry, Building materials industry, advertising industry, etc
Core selling point :
Twin screw, high production capacity and low energy consumption
Linear velocity :
60m/h
Description

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Core Components

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Feeding form

Screw-type

Feeding capacity

 1000kg/h

Control mode

Variable frequency motor speed control

Converter

SIEMENS Siemens 3KW, using Ethernet control technology

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Feed rate

 1-30kg/h

Material conveying method

screw type

Deive motor

0.4KW Siemens servo motor

Control method

Siemens servo speed control

Servo drive machine

Siemens, using Ethernet control technology

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Band

Touya

Structure form

175mm

Full-network double-column screen changer with hydraulic station

Heating zone

Two zones

Heating power

Approx.10kw

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Brand

JCTIMEC

Rated speed metering

8-60r (revolutions)转/min

8-60r rpm

Model number

 E90,(371CC)

Gearbox and motor power

SIEMENS Siemens reducer, 7KW servo motor

Variable conversion control

Siemens, using Ethernet control technology

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Brand

JingCheng

Structure form

Hanger runner

Width of final product

 860mm

Thickness of final product

 0.2-1.0mm

Effective width of mold

Single-sided outer plug

Heating zone

 8zones

Heating power

 30KW

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Roller size

lower roller diameter 400mm, middle and upper roller diameter 600mm

Roller width

 1200mm

Roller materials

alloy steel

Roller surface roughness

mirror finish

Hardness

 ≥HRC60-62

Chrome layer thickness

 0.08mm-0.12mm

Drive motor

SIEMENS Siemens servo motor, 3 sets*7KW

Linear velocity

 6-60m

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Edge triming assembly

1 group, 3 knives, 1 group of left, middle and right, adjustable distance

Cutter form

rotary cutter

Ferrules winding

a set

Ferrules winding drive

0.4KW servo-motor control

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Size

 Ф200mm*1200mm

Haul-off roller

Upper rubber rollers and lower steel rods, rubber rollers cover layer thickness 20mm, nitrile rubber, surface Shore hardness 65-70°

Drive motors

SIEMENS servo motor, 5KW

Roll cylinder opening and closing

Cylinder adjustment

Wait controllers

Using Ethernet technology control

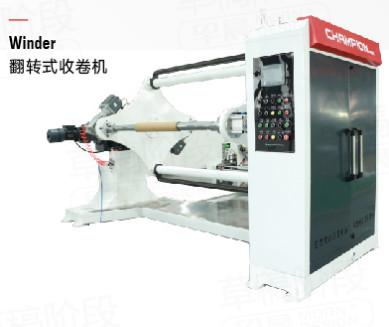

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Form structure

Flip-type double-station winder

Air-expanded shaft

3 inch, 6 inch general, both ends of the installation of mechanical clutch, convenient disassembly of gas expansion shaft

Maximum winding diameter

 1200mm

Drive the motor

A Siemens servo-motor

Unwinding method

Manual

Winding method

Automatic

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Control system

 PLC
CPU SIEMENS S7-1500
HMI SIEMENS 12 inches

Inverters

 SIEMENS

miniature Circuit Breakers

 SIEMENS

Small relay

Schneider

Solid state relay

Swiss Galle

Widely used in furniture veneer,food packaging,fruit and vegetable packaging,electronic product packaging,hot and cold drink cup lids,etc.

Furniture PP PS EVA Sheet Veneer Production Line 1200mm 1400mm CE ISO Standard

Zhejiang Mingdi Furniture veneer /PP/PS/ECA sheet production line adopts international leading technology, combined with the actual needs of China's furniture and packaging industry, specializing in the production of furniture veneer, PP, PS, ECA and other sheets. The production line has the advantages of simple operation, high production efficiency, energy saving and environmental protection, and is widely used in furniture, building materials, electronic product packaging and other fields.
