Specifications
Brand Name :
GC
Model Number :
GC-NM-A
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
TT
Supply Ability :
100 Sets
Delivery Time :
In stock
Packaging Details :
Wooden package
Display :
Digital display
Bottleneck Diameter :
About ø 30 mm
Friction Head Size :
Round Ф16㎜
Zigzag Angle :
(30 ± 1) o.
Friction Cone :
16mm
Bend Position :
into the shoes 1/3
Stand Thickness :
1.25〃 (31.8㎜)
Scale Range :
0 ~ 20mm
Key Words :
Leather Shrinkage
Control :
PC
Effective Stroke :
20cm
Standard :
IULTCS,TUP/36
Motor :
AC motor
Friction Distance :
100 mm
Temperature Accuracy :
±1°,uniformity: ±1.5°
Description

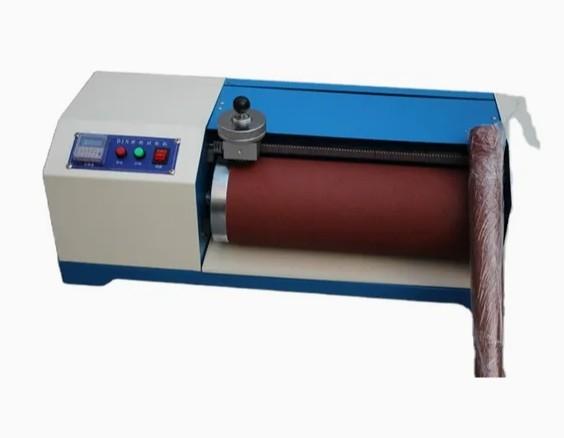

DIN Abrasion Resistance Tester

The DIN Abrasion Resistance tester works by rubbing a rotating wheel, typically made of specified abrasive materials like sandpaper or a diamond disc, against a test sample at a constant speed. The abrasion resistance is measured by comparing the condition of the test sample before and after the abrasion test. The number of cycles or rotations required for a specific level of wear indicates the material's durability under simulated wear conditions.

This test is commonly used in industries such as automotive, construction, aerospace, and fashion to assess the suitability of materials for applications where resistance is crucial. Results from the DIN abrasion resistance tester can help manufacturers optimize their product design, select appropriate materials, or ensure that coatings and finishes meet the desired performance standards.
Product Parameters
Roller diameter φ150mm
Roller length 460 mm
Roller speed 40rpm
Wear stroke 40mm(20 mm)
Wear rate 0.32 m/S
Inclination 3°
Test piece diameter φ16 mm
Thickness 6~15 mm
Test load 2.5N,5N
Fixture lateral displacement 4.2 mm/roller per turn
Volume 95*66*31cm
Power supply 220V 50HZ
Weight About 50kg
