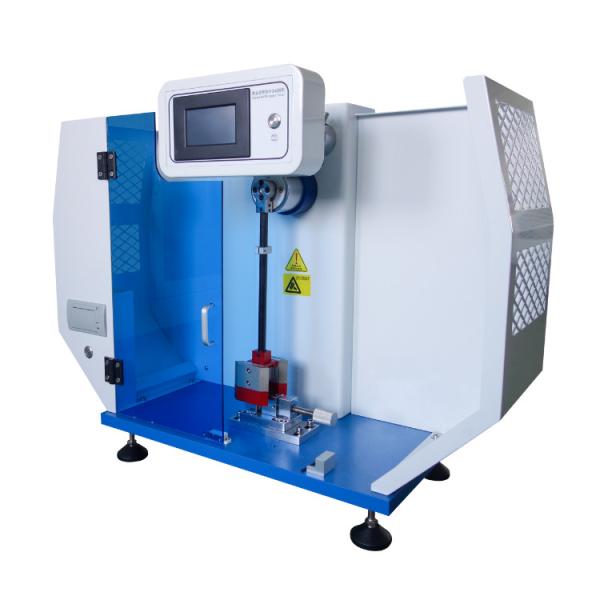

Combined Digital Izod Charpy Impact Testing Machine 220V Custom
Combined Digital Izod Charpy Impact Testing Machine 220V Custom
Combined Digital Izod Charpy Impact Testing Machine 220V Custom
Combined Digital Izod Charpy Impact Testing Machine 220V Custom
Specifications
Place of Origin :
China
Brand Name :
GC
Certification :
ISO
MOQ :
1 Set
Packaging Details :
Wooden package
Delivery Time :
In stock
Payment Terms :
TT
Supply Ability :
100 Sets
Price :
Negotiated
Model Number :
GC-JZL-A
Model NO. :
GC-JZL-A
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Impact Testing Machine
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Weight :
100-500Kg
Power Source :
AC220V
Angle Accuracy :
0.01j
Trademark :
GC
Origin :
China
Package Size :
89.00* 40.00* 74.00cm
Package Gross Weight :
100.000kg
Customization :
Available
Warranty :
1 Year
Description

Digital Izod Charpy Combined Impact Testing Machine Custom

Product Description
-The digital Izod impact testing machine is a device used to measure the impact strength or toughness of a material. It is commonly used in engineering and manufacturing industries to assess the ability of a material to withstand sudden impacts or shocks.The results of Izod impact tests are crucial for ensuring the safety and reliability of products in various applications, such as automotive components, structural elements, and consumer goods.
-The machine consists of a pendulum with a striking edge, which is released from a certain height to strike a notched sample of the material being tested. The pendulum's energy at the point of impact is measured, and this value is used to calculate the material's impact strength.

Combined Digital Izod Charpy Impact Testing Machine 220V CustomCombined Digital Izod Charpy Impact Testing Machine 220V CustomCombined Digital Izod Charpy Impact Testing Machine 220V Custom

Product Parameters
Product Name Digital Izod Impact Test Machine
Item IZOD
The pendulum energy 11J 12J
Display mode Color touch screen
Cutting method Hand automatic integration
Pendulum pre-evaluation angle 150ºC
Impact velocity 3.5m/s
Angle accuracy 0.01J
Distance between Pendulum and the impact blade 335mm
Distance between impact blade to upper mouth 22mm
Blade fillet radius R=0.8±0.2mm
Output method Printout
Power 220V,50HZ
Oil Cylinder Position Under
The Pendulum Energy 1j,2.75j,5.5j
Display Digital
Transport Package Wooden package
Maxcapacity <1000KN
Accuracy Grade 0.5
Company Profile

-Our main business includes plastic physical properties, mechanics, environmental reliability, aging, and flame retardant testing instruments, among which the annual output of plastic polymer physical properties testing instruments ranks among the top in the country.

-Products comply with GB, ASTM, ISO, JIS, EN, DIN, UL and other testing standards.

Combined Digital Izod Charpy Impact Testing Machine 220V CustomCombined Digital Izod Charpy Impact Testing Machine 220V CustomCombined Digital Izod Charpy Impact Testing Machine 220V CustomCombined Digital Izod Charpy Impact Testing Machine 220V CustomCombined Digital Izod Charpy Impact Testing Machine 220V CustomCombined Digital Izod Charpy Impact Testing Machine 220V Custom

Packaging & Shipping

Combined Digital Izod Charpy Impact Testing Machine 220V CustomCombined Digital Izod Charpy Impact Testing Machine 220V Custom

FAQ

Combined Digital Izod Charpy Impact Testing Machine 220V Custom
