Specifications
Brand Name :
GC
Model Number :
GC-ZRS-A
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
TT
Supply Ability :
100 Sets
Delivery Time :
In stock
Packaging Details :
Wooden package
Certification :
ISO
Maxcapacity :
<1000KN
Load Way :
Electronic Load
Display :
Digital
Temperature Tolerance Error :
500~750º
Description

Attractive and Durable Keystroke Glow Wire Combusting Chamber

-The electronic glow wire flame test machine is a device used to test the flammability of materials. It is particularly useful in determining the fire resistance of electrical and electronic products.
-The electronic glow wire flame test machine is widely used in industries such as electronics, automotive, and aerospace to ensure compliance with safety standards and regulations. It helps manufacturers identify potential fire hazards and design products that are safe and reliable.
-The machine consists of a metal wire, known as the glow wire, which is heated to a specified temperature. The sample material is then brought into contact with the glow wire for a predetermined period of time. During this time, the behavior of the sample material is observed and recorded.

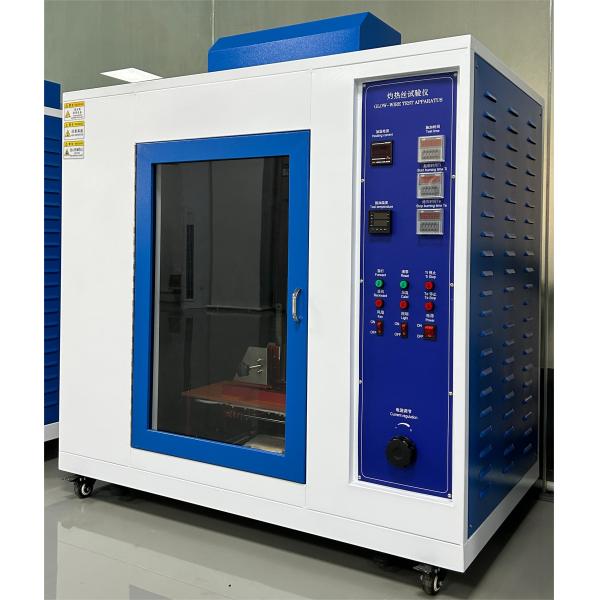

Detailed Photos
Keystroke Rubber Test Chamber Glow Wire Combusting Vertical Flammability Tester
Keystroke Rubber Test Chamber Glow Wire Combusting Vertical Flammability Tester
Keystroke Rubber Test Chamber Glow Wire Combusting Vertical Flammability Tester

Product Parameters
Product name Glow Wire Test Apparatus
Control mode Keystroke Printout
Outer box dimensions 110*65*125(cm)
Glow wire temperature Adjust from room temperature to 1100°C
Glow wire moving speed 10mm/s-25mm/s
Box volume ≥0.5m³,With glass observation door
Fuel Butane
Thermocouple 1.0mm nickel-chromium armored (K type) imported thermocouple
Temperature tolerance error 500~750ºC±5ºC;750~960ºC±10ºC
Glow wire U-shaped head 4mm imported nickel/chromium (80/20) wire
