Color Touchscreen Resin Plastic Testing Equipment Melt Flow Analyzer For Precise Measurements
Color Touchscreen Resin Plastic Testing Equipment Melt Flow Analyzer For Precise Measurements
Color Touchscreen Resin Plastic Testing Equipment Melt Flow Analyzer For Precise Measurements
Color Touchscreen Resin Plastic Testing Equipment Melt Flow Analyzer For Precise Measurements
Color Touchscreen Resin Plastic Testing Equipment Melt Flow Analyzer For Precise Measurements
Color Touchscreen Resin Plastic Testing Equipment Melt Flow Analyzer For Precise Measurements
Specifications
Place of Origin :
China
Brand Name :
GC
Certification :
ISO
MOQ :
1 Set
Packaging Details :
Wooden package
Delivery Time :
In stock
Payment Terms :
TT
Supply Ability :
100 Sets
Price :
Negotiated
Model Number :
GC-MI-EP
Model NO. :
GC-MI-EP
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Plastic and Rubber Test Machine
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Computer Control
Weight :
100-500Kg
Power Source :
AC220V
Oil Cylinder Position :
Under
Thermal Recovery Time :
<4min
Time Resolution :
0.1s
Display Mode :
Color Touch Screen
Transport Package :
Wooden Package
Specification :
65*55*140
Trademark :
GC
Origin :
China
Package Gross Weight :
150.000kg
Customization :
Acceptable
Warranty :
1 Year
Description

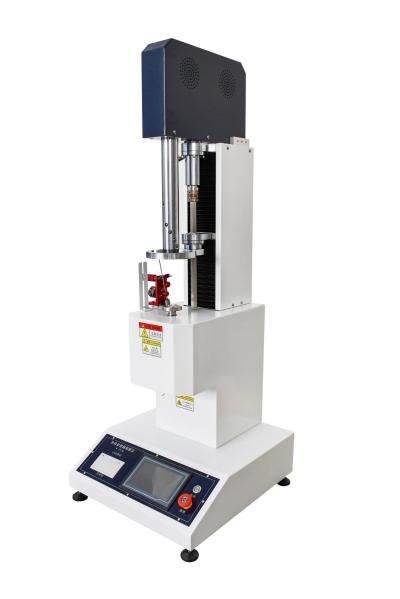

Color Touch Screen Display Mode Plastic and Resin Automatic Melt Flow Testing Machine for Precise Measurements

Product Description

-The Automatic melt flow index tester is a euqipment used to measure the melt flow index (MFI) of polymer and engineering materials. The MFI is a measure of the flow properties of a polymer when it is melted under specified conditions.
-The automatic melt flow index tester typically consists of a heating unit to melt the polymer, a piston to extrude the molten polymer through a die, and a load cell to measure the force required to extrude the polymer.
-This machine can provide high accurate and repeatable measurements of the MFI, which is important for quality control and process optimization in the plastics industry.

Color Touchscreen Resin Plastic Testing Equipment Melt Flow Analyzer For Precise Measurements
Product Parameters
Product name Automatic Melt Flow Index Tester
Measuring MFR/MVR
Corrosion resistance Yes
Display mode Color Touch Screen
Cutting method Hand automatic integration
Temperature control range 100ºC-450ºC
Temperature control accuracy ±0.2ºC
Temperature control unformity ±1ºC
Temperature recovery time <4min
Time resolution 0.1S
Weight loading Electric
Computer output Connectable
Report method Printout
Die Carbon tungsten steel 2.095±0.005mm
Bucket Imported Hastelloy 9.550±0.025mm
Power AC220V±10% 50HZ

Accessory:

No. Name Unit Quantity Remark
1 counterweight Set 1 0.325 kg,1.2 kg,2.16 kg,3.8 kg,5.0 kg,10.0 kg,12.5kg,21.6 kg (in a load within)
2 counterweight tray Set 1 in a load within
3 charging hopper Set 1
4 die cleaning load Set 1
5 loader bar Set 1
6 barrel cleaning load Set 1 assemblies
7 rod Set 1 (in a load within)
8 die Set 1
9 gauze Roll 2
10 printer paper Roll 2
