Keystroke Glow Wire Combustion Flame Test Chamber Workpieces Vertical Flammability Tester
Keystroke Glow Wire Combustion Flame Test Chamber Workpieces Vertical Flammability Tester
Keystroke Glow Wire Combustion Flame Test Chamber Workpieces Vertical Flammability Tester
Keystroke Glow Wire Combustion Flame Test Chamber Workpieces Vertical Flammability Tester
Specifications
Place of Origin :
China
Brand Name :
GC
Certification :
ISO
MOQ :
1 Set
Packaging Details :
Wooden package
Delivery Time :
In stock
Payment Terms :
TT
Supply Ability :
100 Sets
Price :
Negotiated
Model Number :
GC-ZRS-A
Model NO. :
GC-ZRS-A
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Flame Retardant Test Chamber
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual Control
Weight :
100-500Kg
Power Source :
AC220V
Oil Cylinder Position :
Under
Timer :
0-99 Minutes
Temperature Tolerance Error :
500~750º
Glow Wire Moving Speed :
10mm/S-25mm/S
Glow Wire U-Shaped Head :
4mm Imported Nickel/Chromium (80/20) Wire
Transport Package :
Wooden Package
Specification :
110*65*125cm
Trademark :
GC
Origin :
China
Package Size :
110.00cm * 65.00cm * 125.00cm
Package Gross Weight :
220.000kg
Customization :
Available
Warranty :
1 Year
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
Description

Keystroke Glow Wire Combusting Chamber for Workpieces

Product Description

-The electronic glow wire flame test machine is a device used to test the flammability of materials. It is particularly useful in determining the fire resistance of electrical and electronic products.
-The electronic glow wire flame test machine is widely used in industries such as electronics, automotive, and aerospace to ensure compliance with safety standards and regulations. It helps manufacturers identify potential fire hazards and design products that are safe and reliable.
-The machine consists of a metal wire, known as the glow wire, which is heated to a specified temperature. The sample material is then brought into contact with the glow wire for a predetermined period of time. During this time, the behavior of the sample material is observed and recorded.

Tset Standrad:

  • IEC60695-2-10/11/12/13 Fire hazard test methods for electronic and electrical products
  • IEC60884-1-2002 Plug sockets for home and similar purposes
  • GB2099.1-2008 Plug sockets for home and similar purposes
  • IEC60335-1 Safety of household appliances and similar appliances
  • GB4706.1-2005 Safety of household appliances and similar appliances
  • VDE0620-2010 General requirements for household and similar plugs and sockets
  • GB/T5169.10-11-2006 Glow wire device and general test method
Detailed Photos

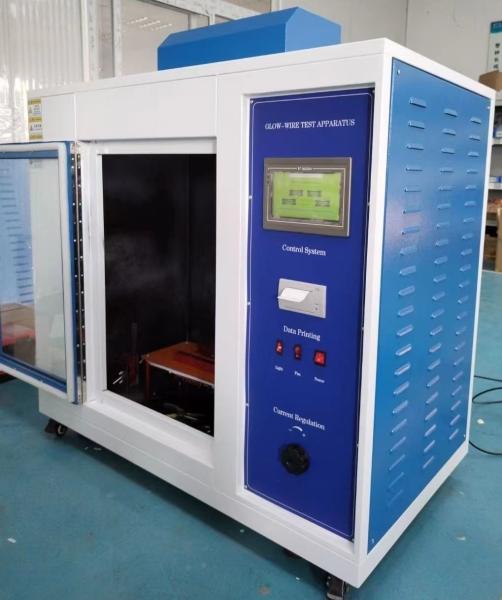

Keystroke Glow Wire Combustion Flame Test Chamber Workpieces Vertical Flammability Tester

Product Parameters
Product nameGlow Wire Test Apparatus
Control modeKeystroke Printout
Outer box dimensions110*65*125(cm)
Glow wire temperatureAdjust from room temperature to 1100°C
Glow wire moving speed 10mm/s-25mm/s
Box volume≥0.5m³,With glass observation door
FuelButane
Thermocouple1.0mm nickel-chromium armored (K type) imported thermocouple
Temperature tolerance error500~750ºC±5ºC;750~960ºC±10ºC
Glow wire U-shaped head4mm imported nickel/chromium (80/20) wire
Glow wire moving speed10mm/s-25mm/s
