Touch Screen Glow Wire Flame Test Chamber Burn In Test Equipment
Touch Screen Glow Wire Flame Test Chamber Burn In Test Equipment
Touch Screen Glow Wire Flame Test Chamber Burn In Test Equipment
Touch Screen Glow Wire Flame Test Chamber Burn In Test Equipment
Specifications
Place of Origin :
China
Brand Name :
GC
Certification :
ISO
MOQ :
1 Set
Packaging Details :
Wooden package
Delivery Time :
In stock
Payment Terms :
TT
Supply Ability :
100 Sets
Price :
Negotiated
Model Number :
GC-ZRS-A
Model NO. :
GC-ZRS-A
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Flame Retardant Test Chamber
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual Control
Weight :
100-500Kg
Power Source :
AC220V
Oil Cylinder Position :
Under
Timer :
0-99 Minutes
Temperature Tolerance Error :
500~750º
Glow Wire Moving Speed :
10mm/S-25mm/S
Glow Wire U-Shaped Head :
4mm Imported Nickel/Chromium (80/20) Wire
Transport Package :
Wooden Package
Specification :
110*65*125cm
Trademark :
GC
Origin :
China
Package Size :
110.00cm * 65.00cm * 125.00cm
Package Gross Weight :
220.000kg
Customization :
Available
Warranty :
1 Year
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
Description

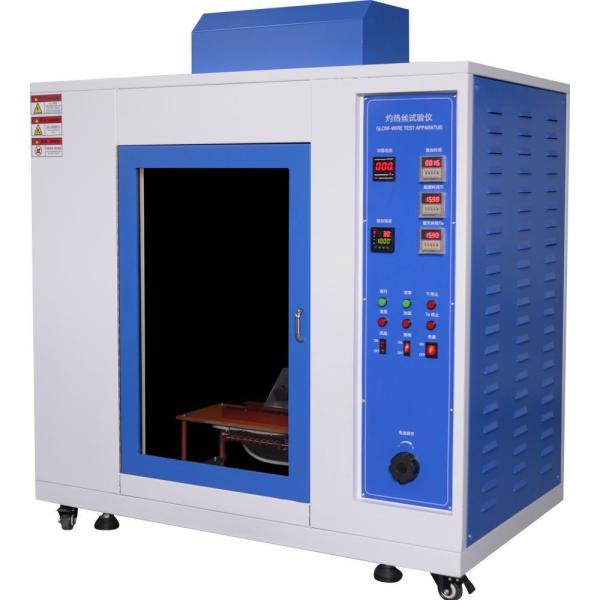

Touch Screen Control Glow Wire Test Apparatus

Product Description

The glow-wire tester simulates parts of insulating materials or other solid combustible materials that are prone to flame spread inside the equipment and may ignite due to glow-wire or glow-element. Under certain conditions, such as fault currents flowing through wires, component overload, and poor contact, some components will reach a temperature that causes nearby parts to fire.

Test Standards:

IEC60695-2-10/11/12/13 Fire hazard test methods for electronic and electrical products

IEC60884-1-2002 Plug sockets for home and similar purposes

GB2099.1-2008 Plug sockets for home and similar purposes

IEC60335-1 Safety of household appliances and similar appliances

GB4706.1-2005 Safety of household appliances and similar appliances

VDE0620-2010 General requirements for household and similar plugs and sockets

GB/T5169.10-11-2006 Glow wire device and general test method

Product Parameters
Product name Touch Screen Glow Wire Test Apparatus
Control mode Touch Screen Control
Outer box dimensions 110*65*125(cm)
Glow wire temperature Adjust from room temperature to 1100°C
Glow wire moving speed 10mm/s-25mm/s
Box volume ≥0.5m³,With glass observation door
Fuel Butane
Thermocouple 1.0mm nickel-chromium armored (K type) imported thermocouple
Temperature tolerance error 500~750ºC±5ºC;750~960ºC±10ºC
Glow wire U-shaped head 4mm imported nickel/chromium (80/20) wire
