Digital Glow Wire Electric 45 Degree Flammability Tester Chamber For Electronic Components
Digital Glow Wire Electric 45 Degree Flammability Tester Chamber For Electronic Components
Digital Glow Wire Electric 45 Degree Flammability Tester Chamber For Electronic Components
Digital Glow Wire Electric 45 Degree Flammability Tester Chamber For Electronic Components
Digital Glow Wire Electric 45 Degree Flammability Tester Chamber For Electronic Components
Digital Glow Wire Electric 45 Degree Flammability Tester Chamber For Electronic Components
Specifications
Place of Origin :
China
Brand Name :
GC
Certification :
ISO
MOQ :
1 Set
Packaging Details :
Wooden package
Delivery Time :
In stock
Payment Terms :
TT
Supply Ability :
100 Sets
Price :
Negotiated
Model Number :
GC-ZRS-C
Model NO. :
GC-ZRS-C
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Flame Retardant Test Chamber
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual Control
Weight :
100-500Kg
Power Source :
AC220V
Oil Cylinder Position :
Under
Timer :
0-99 Minutes
Temperature Tolerance Error :
500~750º
Glow Wire Moving Speed :
10mm/S-25mm/S
Glow Wire U-Shaped Head :
4mm Imported Nickel/Chromium (80/20) Wire
Transport Package :
Wooden Package
Specification :
110*65*125cm
Trademark :
GC
Origin :
China
Package Size :
110.00cm * 65.00cm * 125.00cm
Package Gross Weight :
220.000kg
Customization :
Available
After-sales Service :
1 Year
Warranty :
1 Year
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
Description

Digital Glow Wire Flammability Hot Wire Chamber for Electronic Components

Product Description

The Glow-Wire Test Machine uses simulation technology to assess the fire risk caused by thermal stress in a short time by heat sources such as glowing elements or overload resistors. It is one of the series products of fire risk test instruments for electrical and electronic components. It is suitable for evaluating the flammability test and ignition temperature test of electrical equipment and its components and parts, as well as solid electrical insulation materials or other solid combustible materials.

Test Principle :
1, the use of simulation technology to assess the fire risk of heat sources such as glowing elements or overload resistors caused by thermal stress in a short time.

2, the glowing wire is a specified resistance wire ring, electrically heated to the specified temperature, is the top of the glowing wire contact sample to reach the specified period of time to observe and measure the performance of the material.

3. This test device is used for fire test of non-flame ignition source.

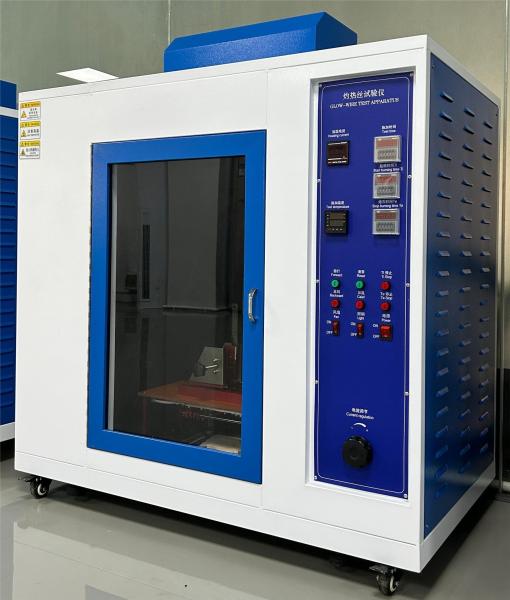

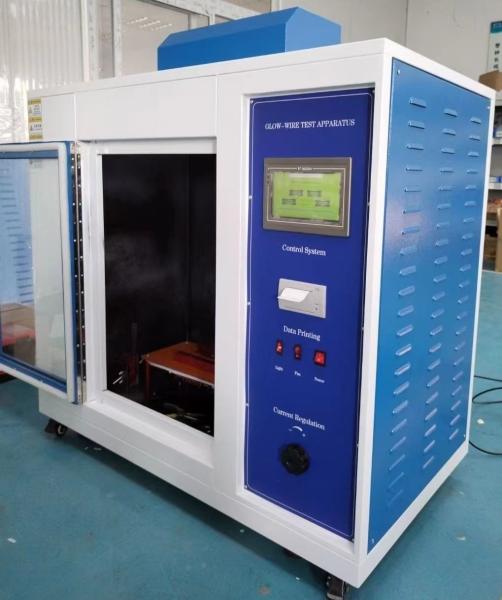

Detailed Photos
Digital Glow Wire Electric 45 Degree Flammability Tester Chamber For Electronic Components

Product Parameters
Product name Glow Wire Test Apparatus

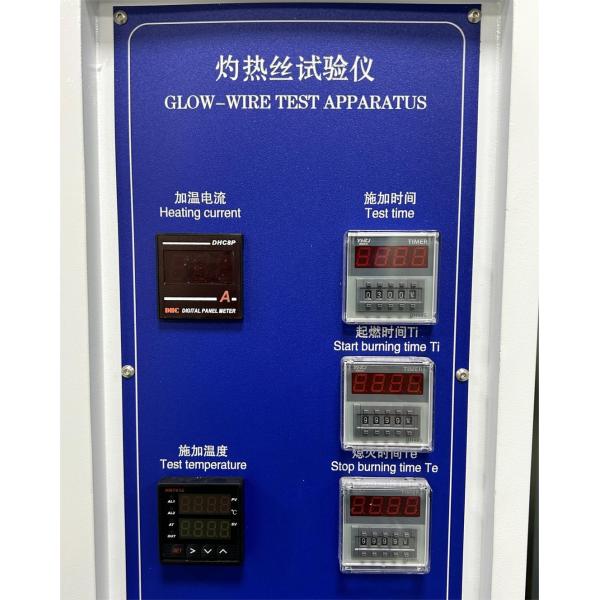

Control mode Keystroke Printout
Outer box dimensions 110*65*125(cm)
Glow wire temperature Adjust from room temperature to 1100°C
Glow wire moving speed
Box volume ≥0.5m³,With glass observation door
Fuel Butane
Thermocouple 1.0mm nickel-chromium armored (K type) imported thermocouple
Temperature tolerance error 500~750ºC±5ºC;750~960ºC±10ºC
Glow wire U-shaped head 4mm imported nickel/chromium (80/20) wire
