Specifications
Place of Origin :
China
Brand Name :
GC
Certification :
ISO
MOQ :
1 Set
Packaging Details :
Wooden package
Delivery Time :
In stock
Payment Terms :
TT
Supply Ability :
100 Sets
Price :
Negotiated
Model NO. :
GC-UL-1581
Mass Scope of Workpiece :
<900kg
Type :
Flame Retardant Test Chamber
Maxcapacity :
>1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Static Load
Display :
Digital
Control :
Manual Control
Weight :
100-500Kg
Power Source :
AC220V
Oil Cylinder Position :
Top
Iameter of Fire Nozzle :
0.90±0.03mm
Length of Fire Nozzle :
1.60±0.05mm
Gas :
at Least 98% Methane Purity
Standard Power :
550W
Transport Package :
Wooden Package
Trademark :
GC
Origin :
China
Package Size :
1.00cm * 1.00cm * 1.00cm
Package Gross Weight :
220.000kg
Customization :
Available
Warranty :
1 Year
Max Diameter of Workpiece :
<500mm
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
Description

UL1581 Electric Wire and Cable Burning Testing Machine

Product Description

GC-UL1581 wire and cable burning tester is used to evaluate the flame retardant performance of the insulation layer of UL standard wires and IEC standard plastic pipes. The test chamber consists of a 4 cubic meter combustion chamber, operation module, model control, test frame, pressure gauge, flow meter, differential pressure gauge, combustion torch, solenoid valve, igniter, gas pipe, gas source, etc. It has high precision, stability and reliability, automatic ignition, stop burning time, burning time, number of burning and temperature adjustment function, etc.; flame temperature and test time digital display, and the burning situation can be observed through tempered glass.

Test Standards:

Section 1060: Vertical combustion and FT1 test

Section 1061: Cable flame

Section 1080: VW-1 flame test

Section 1100: Horizontal test/FT2 combustion test

UL1581 Flame Test Chamber Electronic Component Tester For Electric Wire Cable Burning

Product Parameters
Product Name UL1581 Wire and Cable Burning Test Machine
Box volume ≥4.0 m³. There are lights in the box and the system is controlled by a switch or a switch outside the box
Timer 0-99 minutes and 99 seconds can be set, and the minimum resolution is up to 0.01s
Main fixtures Test stand and burning torch
Test stand Made of SUS304 stainless steel, divided into FT2 horizontal bracket and VW-1/FT1 vertical combustion test stand

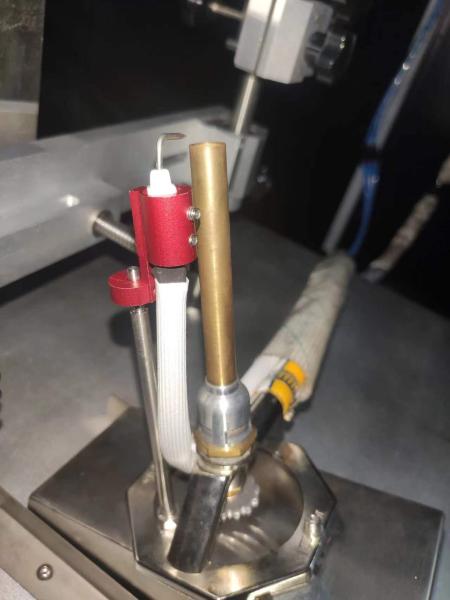

Combustion blow torch Imported blowtorch, meet the requirements of ASTM D5025-05
Standard power 500W
Diameter of fire nozzle 0.90±0.03mm
Length of fire nozzle 1.60±0.05mm
Inner diameter of nozzle 9.5mm
Height of nozzle from air inlet 100mm±10mm
Gas At least 98% methane purity
Flow meter range 1000ml/min
