JH 550 Automatic Plastic Thermoforming Machine for food box, egg trays box and plate
JH 550 Automatic Plastic Thermoforming Machine for food box, egg trays box and plate
JH 550 Automatic Plastic Thermoforming Machine for food box, egg trays box and plate
JH 550 Automatic Plastic Thermoforming Machine for food box, egg trays box and plate
JH 550 Automatic Plastic Thermoforming Machine for food box, egg trays box and plate
JH 550 Automatic Plastic Thermoforming Machine for food box, egg trays box and plate
Specifications
Brand Name :
JH
Model Number :
550
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
45000-55000 USD
Supply Ability :
10 SETS PER MONTH
Delivery Time :
50 WORKING DAYS
Packaging Details :
PLYWOOD CASE
after service :
24 hours on line
forming area :
550*350*80mm
control system :
fully servo motor
cutting :
knife cutter
Description

JH 550 Automatic Plastic Thermoforming Machine for food box, egg trays box and plate

JH 550 Automatic Plastic Thermoforming Machine for food box, egg trays box and plate

Introduction

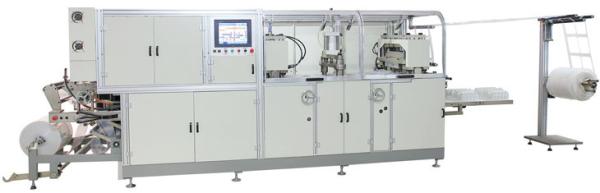

Automatic Four Station Thermoforming machine is special design for PP and PS PVC Film. This machine is suitable for any of thermoforms plastic sheet. This Plastic Thermoforming Machine is update according to the mostly development technical, compare with the traditional machine, It can solved many impossible commitment

Automatic Four Station Thermoforming machine could forming and cutting neat and Clear. Cutting Off the product in order. Also good use for PP PS, PET,PVC etc.

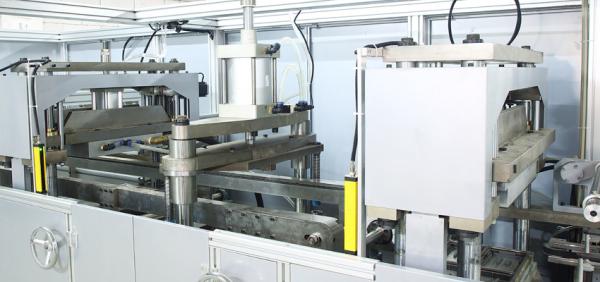

Whole machine is mainly made up by four Parts:

Forming the products

Punching

Cutting

stacking the products

Specification:

Model 550H(Up & down heater)
Punch Frequency 10-35punch/min
Material PP/PS/PET/PVC/PLA
Max. Forming Length 350mm
Max. Forming Width 550mm
Max. Forming depth 70mm
Upper and Lower Forming Power Top heater 43kw, bottom heater 41KW
Total Power 380V 50HZ 97KW Three-phase and four-wire
Water Consumption 0.3m³/h (Tap water or recycle water)
Air Pressure 0.5-0.8(mpa)
Exhaust Volume ≥0.6 m³/min
Pressure of water supply 0.2MPa
Machine overall size(L×W×H) 5000*1675×1900mm
Area cost 8700*3600
The maximum width of material 580mm
Weight 5500KG

Competitive:

1.Our company is a profession manufacture for Plastic Thermoforming Machine

2.This Thermoforming Machine Can use PP transparent Film

3.Change the mold is easy and fast, the forming mold have motor control

4.Use the Servo motor driving the sheet,

5.15 inches Touch screen Control, easy for Operation

6. forming, punching , cutting work independent , could move the distich on the rail .

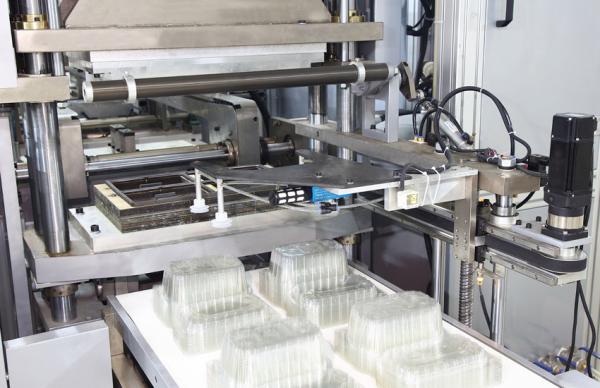

7.stacking use robot, could stack different size, and depth products.

8. forming, and cutting control by separate servo motor.
