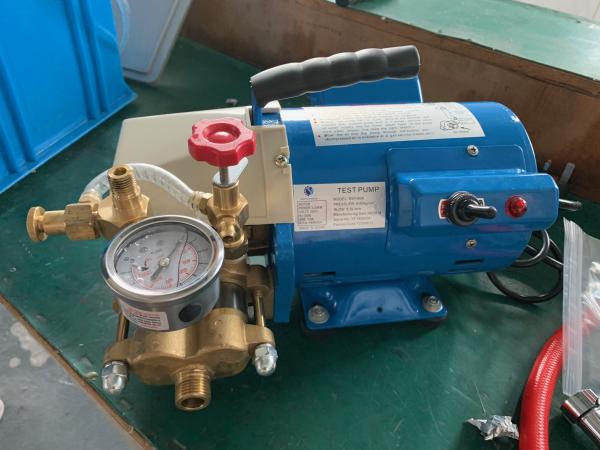

6MPA 400W Pipe Pressure Machine Portable Electric Pressure Test Pump High Demand Products

Specification of Electrical Pressure Test Pump

1. High voltage output is designed according to high efficiency and low loss.
2. Differential operation makes the output fluctuation very small and the output pressure balanced. Simple and firm structure makes disassemble and maintenance simple and easy.
3. Small and light structure, easy to carry.
4. Universal spray gun can make cleaning easy and can be cleaned almost everywhere.
Uses: air conditioning cleaning, wall cleaning, vehicle engine cleaning, agricultural tools and machinery cleaning, spraying pesticides and pestides, printing machinery cleaning, pipeline cleaning and dredging, food processing equipment and kitchen cleaning.

Photo	Model	Pressure	Voltage	Power	Flow volume	G.W/N.W	Meas	Note
	DSY-60	0-6.0MPA 0-60BAR	110/220V	250W	180L/H	13.5/12KGS	40*30*29cm	Plasticbox
	DSY-60C	0-6.0MPA 0-60BAR	110/220V	250W	180L/H	13.5/12KGS	40*30*29cm	Plasticbox
	DSY-60A	0-6.0MPA 0-60BAR	110/220V	400W	480L/H	17/15KGS	40*30*29cm	Plasticbox
	DSY-60B	0-6.0MPA 0-60BAR	110/220V	700W	480L/H	21/19KGS	40*30*29cm	Plasticbox
	DSY-100	0-10MPA 0-100BAR	110/220V	380W	180L/H	14/12.5KGS	40*30*29cm	Plasticbox

Good packing makes product safe in transportation

The new technical solution of the electric pressure test pump has the following advantages:
When it is necessary to pressurize the pipeline to be measured, first make sure that the valve is closed so that the water inlet pipeline and the water outlet pipeline are in a disconnected state, then connect the water inlet pipeline to the liquid source, and connect the water outlet pipeline to the pipeline to be measured. Connected, the user can control the power pump to work through the control switch, and the user can grasp the pressure value of the water outlet pipeline in real time through the pressure display at the mechanical pressure gauge. When the water outlet pipeline reaches the expected pressure, it means the pipeline to be tested at this time. When the expected pressure is reached, the power pump is stopped by controlling the control switch, and the pressurization of the pipeline to be tested is completed at this time. After the test is completed, the control valve is opened, so that the water inlet pipeline and the water outlet pipeline are connected through the connecting pipeline, and the water body with higher pressure at the water outlet pipeline flows to the water inlet pipeline, so as to realize the pressure relief of the water outlet pipeline to the water inlet pipeline.

Our service:

1) We offer 1 year warranty and free spare parts. (Except for wearing parts)

2) We offer voltage and frequency of motor customization service, such as 110v 60hz.

3) We can put your LOGO on machine plate or packing (need your authorization on brand)

4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
