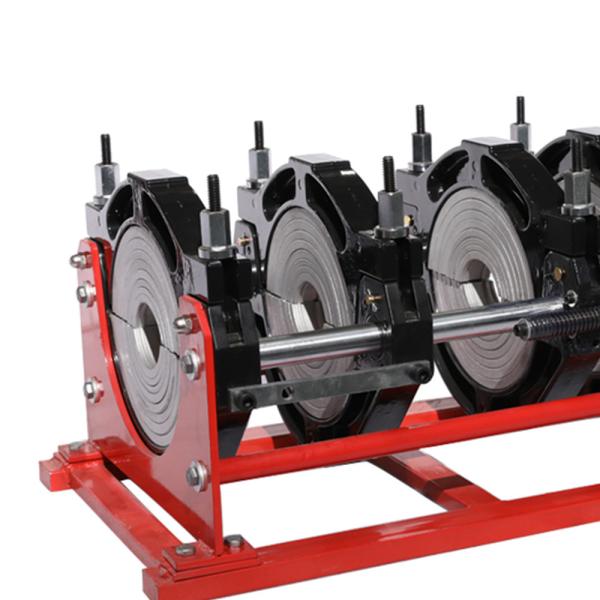

High Quality Pe Pipe Butt Fusion SHT160 For Machinery Repair Shops

This hydraulic butt fusion welding machines is able to weld pipes and fittings with material pe pipe,hdpe pipe , operation easily and suitable for any complex work condition. It consists of basic frame, hydraulic unit, planning tool, heating plate, support for planning tool & heating plate, and optional parts.

Butt Fushion Welding Machine Technical data:

Other name:
polyethylene fusion welding machine
pe pipe butt fusion
hdpe pipe jointing digital heater
polyethylene pipe butt welder
pipe fusion welding tool
poly pipe fusion welder
160mm manual automatic poly Hydraulic Butt Fusion plastic PE Pipe hot melt Welding Machine HDPE Pipe Welder price list
Outlet great quality hdpe butt fusion welding machine 63mm-1200mm hdpe welding machine
High quality 180-500mm HDPE butt fusion welding machine with low price
Factory sales HDPE 90-315mm water pipe fusion welding machine price list
Butt fusion plastic pipe hdpe pipe joint hydraulic pipe welding machine price
hdpe pipe jointing machine
pipeline welding equipment
Features:

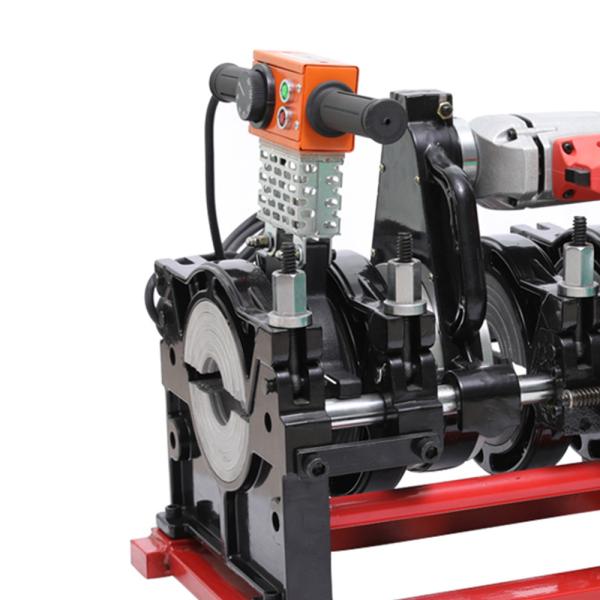

Milling cutter with limit switch can prevent the accidental activation.Manually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings.The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat on the plates. Butt welding machine PTFE-coated heating element and uniform surface temperature.




Preparation for welding HDPE Pipe manual Butt Fusion Welding Machine
1. Before operation, all equipment parts shall be placed on a stable and dry place.
2. Confirm that the power supply used meets the requirements of the equipment, the equipment is in good condition, and the electrical circuit is not damaged; the detection indicator works normally, the milling cutter blade is sharp, and the parts and operating tools are complete.
3. Replace the required fixture according to the outer diameter of the welded pipe.

Attention for use
1. The machine is used to weld pipes made from PE, PP, PVDF and cannot be used to weld material without description otherwise the machine may be damaged or some accident may be resulted in.
2. Don't use the machine in a place with potential hazard of explosion.
3. The machine should be operated by responsible, qualified and trained personnel.
4. The machine should be operated on a dry area. The protective measures should be adopted when it's used in rain or on wet ground.
5. The machine is operated by 220v±10%, 50Hz, if extended wire should be used, it should have enough lead section according to its length.

Welding procedure for HDPE PIPE manual Butt Fusion Welding Machine


Application



Company profile
Zhuji Haitao Machinery Co., Ltd. is a manufacturer specializing in the production of various specifications of PPR hot melt machines (plastic pipe fusion welders), scissors, butt welders, and pressure test pumps. Since the establishment of the factory, our factory have always paid great attention to the research and development of new products and the training of professional and technical staff, and we are constantly exploring and innovating, and introducing advanced foreign technology.
Haitaoxing’ products have passed CE certification and won unanimous praise from the industry. Our factory adheres to the principle of honesty, friendliness, mutual benefit, and the business tenet of surviving on quality, development by reputation, and occupying the market with price. Facing new and old customers, we have established a complete after-sales service network system, and our products are exported to large, medium and small cities in China and all over the world.
The company is located in Huangtong Village, Ciwu Town, Zhuji City, 32 kilometers away from Hangzhou Xiaoshan International Airport and 2 kilometers away from the exit of HangJinQu Highway (Diankou, Ciwu). The transportation is convenient and the environment is beautiful. We sincerely welcome people of insight from all walks of life to visit, cooperate and develop together.



Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
