Portable High Efficiency Pipe Pressure Machine Portable Electric Pressure Test Pump High Demand Products

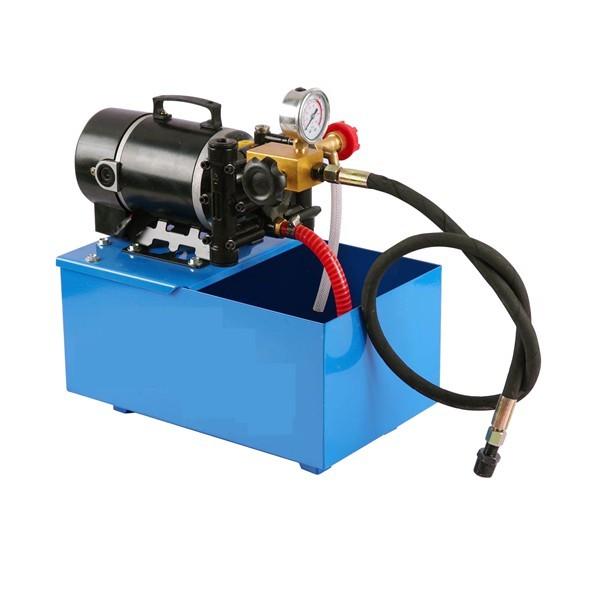

Specification of Electrical Pressure Test Pump

This DSY portable electric pressure test pump series has the advantages of compact production structure, stable output pressure, low energy consumption, convenient carrying and easy maintenance. It is reliable equipment for pipeline construction, pressure vessel test and pipeline pressure monitoring.
It's widely used in construction, decoration site, fire site, property management of garden materials, pressure vessels and other production places.

Photo	Model	Pressure	Voltage	Power	Flow volume	G.W/N.W	Meas	Note
	DSY-25	0-2.5MPA	110/220V	150W	180L/H	13.5/11KGS	42*27*32cm	Carton Woodenbox
	DSY-25A	0-2.5MPA	110/220V	200W	380L/H	13.5/11KGS	42*27*32cm	Woodenbox
	DSY-40	0-4.0MPA	110/220V	150W	180L/H	13.5/11KGS	42*27*32cm	Carton Woodenbox
	DSY-50	0-5.0MPA	110/220V	150W	380L/H	13.5/11KGS	42*27*32cm	Woodenbox

Our price is based on above red part, if need price for other size, pls let me know, thanks.

Plastic / steel tank according to customers' demand
Aluminum / brass pump also have short type, medium-sized, long type pumps for choices.

INSTRUCTION FOR USE
1. Check that the gasket and the joint are well matched, and connect the water inlet pipe correctly;
2. The fire wire and ground wire must be correctly connected before use, and must not be wrongly connected! The power cord should be connected to a socket with leakage protection.
3. Loosen the pressure regulating knob first, do not start the motor with load, so as not to damage the motor
4. Check the filter regularly to avoid clogging
5. If the water pump cannot absorb water, please add a certain amount of water from the water inlet pipe to the water pump.
6. Prevent air from entering the water pump.
7. After the pressure test is over, loosen the pressure adjustment knob, add a little 20# oil, and keep it loose. At the same time, turn on the power and add oil at the water inlet to run for half a minute.
8. It is strictly forbidden to start the machine without water, otherwise the sealing ring and piston ring will be easily damaged.
9. The water source should not have impurities, otherwise the seal will be easily stuck, which will cause the phenomenon of no water absorption.
10. Water leakage at the lower part of the pump body means that the sealing ring is damaged, and the sealing ring must be replaced.
11. Please use the pressure regulating button correctly, do not turn the pressure regulating knob to the end, otherwise the high pressure will cause high pressure damage to the meter, etc.

Our service:

1) We offer 1 year warranty and free spare parts. (Except for wearing parts)

2) We offer voltage and frequency of motor customization service, such as 110v 60hz.

3) We can put your LOGO on machine plate or packing (need your authorization on brand)

4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
