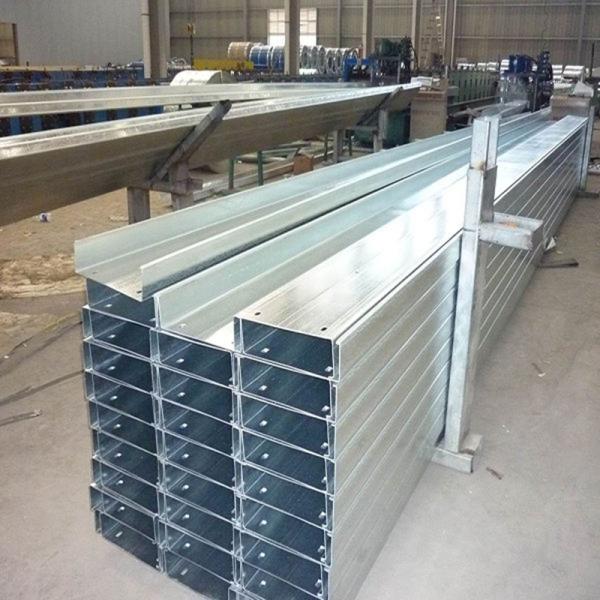

DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
Specifications
Brand Name :
Antai
Model Number :
DX51D Q235B Q345B S235JR
Certification :
SGS
Place of Origin :
China
MOQ :
1 TON
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Ton Per Month
Delivery Time :
10 days
Packaging Details :
Standard export packaging
Alloy Or Not: :
Non-Alloy
Style: :
Plain or Slotted
Length: :
Customers Request
Thickness: :
0.4-1.5mm or customized
Zinc Coated: :
GB:80g-275g ASTM:G60-G90
Process: :
Cold Bending
Standard: :
AiSi, ASTM, bs, DIN, GB, JIS
Description

Carbon Profile DX51D Q235B Q345B S235JR C Shaped Metal Building Steel C Channel Hot galvanized Rolled

Hot galvanized Rolled Carbon Profile C Shaped Metal Building Steel C Channel

Hot dip galvanized steel is widely used in light industry, household applicances, automotive and construction industry. For various types of industrial and civil construction industry, light steel keel, building level board, corrugated board, roller shutter doors.

Standard AiSi, ASTM, bs, DIN, GB, JIS
Grade SAE 1008 1010 1012 1018 1020 etc.
Model Number Q235 Q345 Q195
Type Alloy Structural Steel
Application Mainly used in construction, mining, chemical, welded wire mesh, welding hangers, reprocessing, etc. After annealing, the iron
wire becomes soft and more flexiable, binding in construction and tying steel rebars.
Shape Channels
Tolerance ±3%
Composition Iron, cobalt, nickel, copper, carbon, zinc, and other elements
Coil weight 200/500/700/8/25/50kg or can be according to customers' requirements
Length 5-12m
Diameter 0.20-12.50mm
Technique Hot rolled
Transport Package Seaworthy Package
MOQ 5 Tons
Payment term

L/C T/T

Chemical Compose Grade C % Si % Mn % P % S %
Q195 ≤0.12 ≤0.30 ≤0.50 ≤0.035 ≤0.035
Q235 ≤0.22 ≤0.35 ≤1.4 ≤0.035 ≤0.035
DX51D ≤0.12 ≤0.50 ≤0.60 ≤0.1 ≤0.045
SGCC ≤0.15 - ≤0.80 ≤0.05 ≤0.03
Mechanical Property Grade Yield Strength Tensile Strength Elongation
MPA MPA
Q195 ≥195 315-430 22%
Q235 ≥235 370-500 19%
DX51D - 270-500 22%
SGCC ≥205 ≥270 22%
Applications Home Appliance, Automobiles, Vehicle Bracket, Steel Vessels, Cabinets,
Building Materials, etc.

Usage Grade Yield Strength (MPA) Tensile Strength (MPA) Elongation rate %
Punching galvanized steel DX51D+Z ~ 270-500 >=20
DX52D+Z 140-300 270-420 >=22
DX53D+Z 140-260 270-380 >=26
DX54D+Z 140-220 270-350 >=30
Structure galvanized steel S220GD+Z >=220 >=300 >=18
S250GD+Z >=250 >=330 >=17
S280GD+Z >=280 >=360 >=16
S320GD+Z >=320 >=390 >=15
S350GD+Z >=350 >=420 >=14
S400GD+Z >=400 >=470 ~
S500GD+Z >=500 >=530 ~
S550GD+Z >=550 >=560 ~

DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building

DX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial BuildingDX51D Q235B Q345B Hot Dip Galvanized C Channel For Industrial Building
