12 - 24V DC Omron PLC NX 16 Points Digital Transistor Output Unit NX-OD5121
12 - 24V DC Omron PLC NX 16 Points Digital Transistor Output Unit NX-OD5121
12 - 24V DC Omron PLC NX 16 Points Digital Transistor Output Unit NX-OD5121
12 - 24V DC Omron PLC NX 16 Points Digital Transistor Output Unit NX-OD5121
Specifications
Brand Name :
Omron
Model Number :
NX-OD5121
Place of Origin :
China/Japan
MOQ :
1/pc
Price :
$50-500
Payment Terms :
T/T, western union
Supply Ability :
10pc/per week
Delivery Time :
3-5working days
Packaging Details :
Carton packaging
Brand :
Omron
Condition :
New
Lead time :
Stock
MOQ :
1
Currency :
USD/RMB
Warranty :
12 month
Shipping Term :
DHL/TNT/UPS/FEDEX Etc
Description

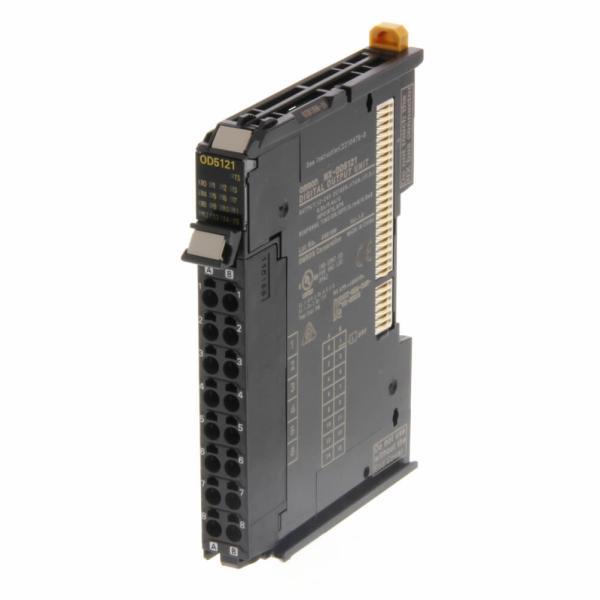

Omron PLC I/O Module NX-OD5121

Omron NX Family of Series — NX-ID/IA/OD/OC/MD | Modular Digital I/O Unit:

Digital output unit that is available in many variations, from high-speed types that enable high-speed synchronization control to general-purpose types

■ Features
· Can be mounted on an EtherCAT coupler to enable high-speed I/O refreshing
· Enables I/O refreshing synchronized with the controller control period (synchronous refresh)
· Using this unit in combination with an NX Series CPU Unit or EtherCAT Coupler Unit, an NX unit that uses a time stamping input method,
and an NX unit that uses a time-specific output method enables highly precise I/O control that does not depend on the
controller's control period
· The use of a removable terminal block improves system maintainability
· The Push-In Plus terminal block (screwless clamp terminal block) and connector type (MIL connector / Fujitsu connector)
greatly reduce the time required for wiring work
· A unit width of only 12 mm realizes space saving (connector type 30 mm)
· 2-, 4-, 8-, 16- and 32-output-contact types are available, enabling the I/O configuration that best suits your equipment
· Connect to the CJ Series using the EtherNet/IP coupler

12 - 24V DC Omron PLC NX 16 Points Digital Transistor Output Unit NX-OD5121

Configured Specifications

Number of output points 16 Output format [Other] IKOU
Connection terminal [Connector] m0005 Representative standards CE / UL / CUL / CSA
Output voltage(V) 12 to 24 DC Output current(A) 0.5
Consumed current(A) 30 mA or less Name Digital Output Unit
I/O Refresh Method Switch between free-run and synchronous I/O ON/OFF Response Time 0.1 ms or less / 0.8 ms or less
Short-circuit protection - - -

Basic Information

Representative standards CE / UL / CUL / CSA Name Digital Output Unit
