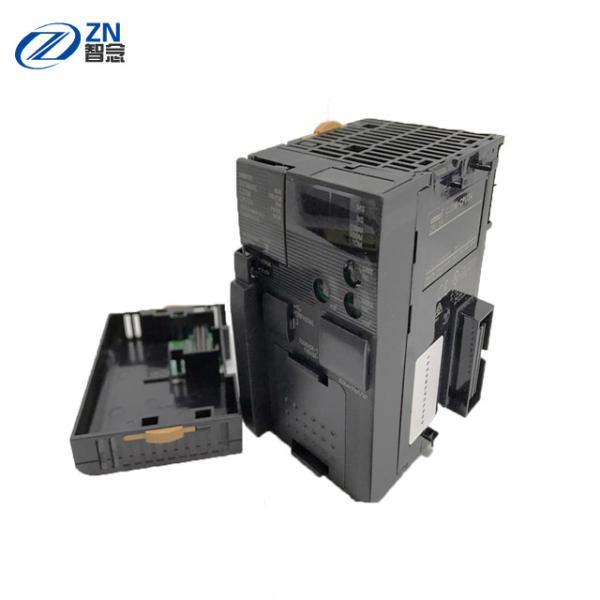

2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps
Specifications
Brand Name :
Omron
Model Number :
CJ2M-CPU32
Place of Origin :
China/Japan
MOQ :
1/pc
Price :
$450-$1500
Payment Terms :
T/T, western union
Supply Ability :
10pc/per week
Delivery Time :
3-5working days
Packaging Details :
Carton packaging
Brand :
Omron
Condition :
New
Lead time :
Stock
MOQ :
1
Currency :
USD/RMB
Warranty :
12 month
Shipping Term :
DHL/TNT/UPS/FEDEX Etc
Description

Orignal Stock Omron PLC CJ2M-CPU32

Applicable standards

Ask your OMRON representative for the most recent applicable standards for each model.

CJ2M CPU Units (Built-in EtherNet/IP)

Product
name		 Specifications Current
consump-
tion (A)		 Model
I/O capacity/
Mountable
Units
(Expansion
Racks)		 Pro-
gram
ca-
pacity		 Data
memory
capacity		 LD
instruc-
tion
execution
time		 EtherNet/
IP
function		 Option
board
slot		 5 V 24 V
CJ2M
(Built-in
EtherNet/
IP) CPU
Units
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 2,560 points/
40 Units
(3 Expansion
Racks max.)		 60K
steps		 160K words
(DM: 32K
words,
EM: 32K
words ×
4 banks)		 0.04 μs YES YES 0.7
*		 - CJ2M-CPU35
30K
steps		 CJ2M-CPU34
20K
steps		 64K words
(DM: 32K
words,
EM: 32K
words ×
1 bank)		 CJ2M-CPU33
10K
steps		 CJ2M-CPU32
5K
steps		 CJ2M-CPU31

* Add 0.005A, 0.030A and 0.075A when using Serial Communications Option Boards (CP1W-CIF01/CIF11/CIF12-V1),
respectively.
Add 0.15A/Unit when using NT-AL001 RS-232C/RS-422A Adapters.
Add 0.04A/Unit when using CJ1W-CIF11 RS-422A Adapters.
Add 0.20A/Unit when using NV3W-M[]20L(-V1) Programmable Terminals.

CJ2M CPU Units

Product
name		 Specifications Current
consump-
tion (A)		 Model
I/O capacity/
Mountable
Units
(Expansion
Racks)		 Pro-
gram
ca-
pacity		 Data
memory
capacity		 LD
instruc-
tion
execution
time		 EtherNet/IP
function		 Option
board
slot		 5 V 24 V
CJ2M
CPU
Units
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 2,560 points/
40 Units
(3 Expansion
Racks max.)		 60K
steps		 160K words
(DM: 32K
words,
EM: 32K
words ×
4 banks)		 0.04 μs - - 0.5
*		 - CJ2M-CPU15
30K
steps		 CJ2M-CPU14
20K
steps		 64K words
(DM: 32K
words,
EM: 32K
words ×
1 bank)		 CJ2M-CPU13
10K
steps		 CJ2M-CPU12
5K
steps		 CJ2M-CPU11

* Add 0.15A/Unit when using NT-AL001 RS-232C/RS-422A Adapters.
Add 0.04A/Unit when using CJ1W-CIF11 RS-422A Adapters.
Add 0.20A/Unit when using NV3W-M[]20L(-V1) Programmable Terminals.

Serial Communications Option Boards (Only CJ2M-CPU3[])

The serial communications port can be equipped by installing the serial communications option board to the option board slot in front of CPU unit.

Product name Specifications Serial
communications
mode		 Current
consump-
tion (A)		 Model
5 V 24 V
RS-232C
Option Board
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 One RS-232C port
Connector: D-Sub, 9 pin, female
Maximum transmission distance: 15m		 Host Link, 1:N NT Link,
No-protocol,
Serial PLC Link Slave,
Serial PLC Link Master,
Serial Gateway converted
to CompoWay/F, and
Tool Bus *		 0.005 --- CP1W-CIF01
RS-422A/485
Option Board
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 One RS-422A/485 port
Terminal block: using ferrules
Maximum transmission distance: 50m		 0.03 --- CP1W-CIF11
RS-422A/485
Isolated-type
Option Board
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 One RS-422A/485 port (Isolated)
Terminal block: using ferrules
Maximum transmission distance: 500m		 0.075 --- CP1W-CIF12-V1

Note: It is not possible to use a CP-series Ethernet Option Board (CP1W-CIF41), LCD Option Board (CP1W-DAM01) with
a CJ2M CPU Unit.
* The following modes cannot be used: 1:1 NT Link, Serial Gateway converted to Host Link FINS, 1:1 Link Master, and
1:1 Link Slave.

Pulse I/O Modules (Only CJ2M CPU Unit with Unit Version 2.0 or Later)

Optional Pulse I/O Modules can be mounted to enable pulse I/O. Up to two Pulse I/O Modules can be mounted to the left side of a CJ2M CPU Unit.

Product
name		 Specifications Current
consumption (A)		 Model
5 V 24 V
Pulse I/O
Modules
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Sinking outputs, MIL connector
10 inputs (including four interrupt/quickresponse inputs and two
high-speed counter inputs)
6 outputs (including two pulse outputs and two PWM outputs)		 0.08 --- CJ2M-MD211
Sourcing outputs, MIL connector CE
10 inputs (including four interrupt/quickresponse inputs and two
high-speed counter inputs)
6 outputs (including two pulse outputs and two PWM outputs)		 0.08 --- CJ2M-MD212

Note: Connectors are not provided with Pulse I/O Modules. Purchase the following Connector, an OMRON Cable with
Connectors for Connector Terminal Block Conversion Units, or an OMRON Cable with Connectors for Servo Relay
Units.

Connecting to Pulse I/O Modules

Product name Specifications Model
Applicable
Connector
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 MIL Flat Cable Connectors (Pressure-fitted Connectors) XG4M-4030-T
Connector-Terminal
Block Conversion
Units		 Phillips screw (M3 screw terminals, 40-terminals) 2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps XW2R-J40G-T
Slotted screw (M3 European type, 40-terminals) 2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps XW2R-E40G-T
Push-in spring (Clamp 40-terminals) 2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps XW2R-P40G-T
Cable for
Connector-Terminal
Block Conversion
Unit		 2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps Cable length: 0.25 m XW2Z-C25K
Cable length: 0.5 m XW2Z-C50K
Cable length: 1 m XW2Z-100K
Cable length: 1.5 m XW2Z-150K
Cable length: 2 m XW2Z-200K
Cable length: 3 m XW2Z-300K
Cable length: 5 m XW2Z-500K
Servo Relay Units Servo Relay Unit for 1 axis 2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps XW2B-20J6-8A
Servo Relay Unit for 2 axes 2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps XW2B-40J6-9A
Cables for Servo
Relay Units		 G5/G Series Cable for Pulse I/O Modules
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Cable length: 0.5 m XW2Z-050J-A33
Cable length: 1 m XW2Z-100J-A33
Servo Driver Connecting Cables
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Cable length: 1 m XW2Z-100J-B31
Cable length: 2 m XW2Z-200J-B31
SMARTSTEP2 Cable for Pulse I/O Modules
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Cable length: 0.5 m XW2Z-050J-A33
Cable length: 1 m XW2Z-100J-A33
Servo Driver Connecting Cables
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Cable length: 1 m XW2Z-100J-B32
Cable length: 2 m XW2Z-200J-B32
SMARTSTEP
Junior		 Cable for Pulse I/O Modules
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Cable length: 1 m XW2Z-100J-A26
Servo Driver Connecting Cables
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Cable length: 1 m XW2Z-100J-B17
Cable length: 2 m XW2Z-200J-B17
SMARTSTEP
A Series		 Cable for Pulse I/O Modules
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Cable length: 1 m XW2Z-100J-A26
Servo Driver Connecting Cables
2560 Points Omron PLC CJ2M-CPU32 CPU Units 60K 30K 20K 10K 5K steps		 Cable length: 1 m XW2Z-100J-B5 *1
Cable length: 2 m XW2Z-200J-B5 *1

*1. Final order entry date:The end of April, 2020

Accessories

The following accessories come with CPU Unit:

Item Specification
Battery CJ1W-BAT01
End Cover CJ1W-TER01 (necessary to be mounted at the right end of CPU Rack)
End Plate PFP-M (2 pcs)

Note: A serial port (RS-232C) connector is not provided. Purchase a connector separately for serial port connection.
XM3A-0921 (manufactured by OMRON) or equivalent
XM2S-0911-E (manufactured by OMRON) or equivalent
