GP-4301T 16 Levels Proface Touchscreen HMI PFXGP4301TAD 5.7 Inch
GP-4301T 16 Levels Proface Touchscreen HMI PFXGP4301TAD 5.7 Inch
GP-4301T 16 Levels Proface Touchscreen HMI PFXGP4301TAD 5.7 Inch
GP-4301T 16 Levels Proface Touchscreen HMI PFXGP4301TAD 5.7 Inch
GP-4301T 16 Levels Proface Touchscreen HMI PFXGP4301TAD 5.7 Inch
GP-4301T 16 Levels Proface Touchscreen HMI PFXGP4301TAD 5.7 Inch
Specifications
Place of Origin :
China/Japan
Brand Name :
Proface
Model Number :
PFXGP4301TAD
Packaging Details :
Carton packaging
Supply Ability :
10pc/per week
Price :
$29.00 - $2000/Pieces
MOQ :
1/pc
Payment Terms :
T/T, western union
Display type :
TFT Color LCD
Display Size :
5.7"
Resolution :
320 x 240 pixels (QVGA)
Display Colors :
65,536 Colors
Backlight :
White LED
Brightness Control :
16 Levels (Adjusted with the touch panel or the software)
Rated Input Voltage :
DC 24 V
Condition :
100% Original
Shipping term :
TNT DHL FEDEX EMS UPS
Delivery Time :
In stock, 1-2 days after payment
Port :
Selectable
Description

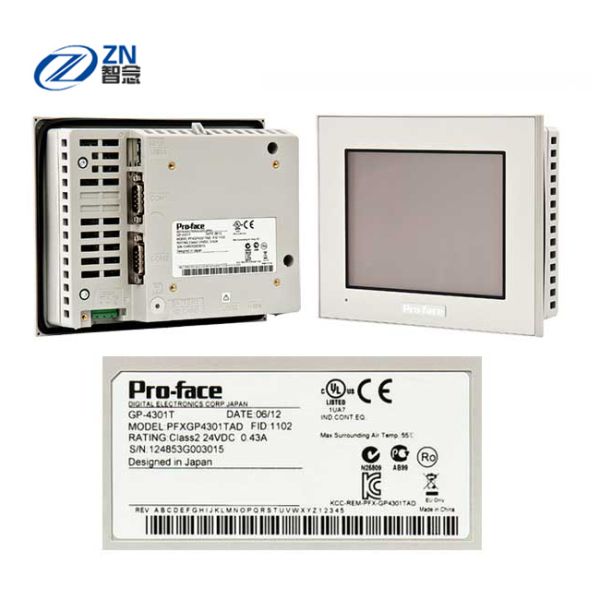

Proface GP-4301T Model PFXGP4301TAD HMI Touchscreen 5.7"

Product Details

Pro-face Touch Screen HMI

The Pro-face GP4000 touchscreen HMI is a 5.7in 320 x 240 pixels colour display. This energy efficient LED display has no grid analogue touch panel for improved visibility and precise part placement. It supports up to four protocol drivers, simultaneously. Since it is up to 10 times faster than conventional operator interfaces, it is perfectly suitable for high-speed application transfer. It has many advanced features such as smart alarm analysis, easy sampling of data, and automatic operational log, among many others that make it an ideal man to machine interface.

Features and Benefits

• 65k colours
• Corrosion and vibration resistant
• Customisable smart screen
• Enhanced durability
• Fingerprint authentication
• Improved startup speed
• Matrix resistive touch panel
• Remote access and monitoring
• Two point touch supported
• Wide range of communication protocol supported

GP-4301T 16 Levels Proface Touchscreen HMI PFXGP4301TAD 5.7 Inch

Functional Specifications

Display Type
TFT Color LCD
Display Size
5.7"
Resolution
320 x 240 pixels (QVGA)
Effective Display Area
W115.2 x H86.4 mm [W4.54 x H3.40 in.]
Display Colors
65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
16 Levels (Adjusted with the touch panel or the software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows
8 x 8 dots
40 char. x 30 rows
Program Area
FLASH EPROM 132 KB (Equivalent to 15,000 steps)
Variable Area
SRAM 64 KB (Replaceable Lithium battery for backup memory)
Application Memory
FLASH EPROM 16 MB (including a logic program area)
Data Backup
SRAM 320 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF)
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
1,024 x 1,024
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)
RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Even or Odd Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card
SD Card Slot x 1

1Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.

2Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec/month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.

General Specifications

Rated Input Voltage
DC 24V
Input Voltage Limits
DC 19.2 to 28.8V
Allowable Voltage Drop
5 ms or less
Power Consumption
10.5 W or less
In-Rush Current
30 A or less
Voltage Endurance
AC 1,000 V, 20 mA for 1 min (between charging and FG terminals)
Insulation Resistance
DC 500 V, 10 MΩ or more (between charging and FG terminals)
Surrounding Air Temperature
0 to 55 °C (32 to 131 °F)
Storage Temperature
-20 to 60 °C (-4 to 140 °F)
Ambient Humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Storage Humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Dust
0.1 mg/m³ (10<sup>-7</sup> oz/ft³) or less (non-conductive levels)
Pollution Degree
For use in Pollution Degree 2 environment
Atmosphere
Free of corrosive gases
Air Pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Vibration Resistance
IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Concussion Resistance
IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
Noise Immunity
Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator)
Electrostatic Discharge Immunity
Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
Grounding
Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Structure
IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)
Cooling Method
Natural air circulation
Weight Approx.
0.8 kg [1.8 lb] or less (display unit only)
External Dimensions
W169.5 x H137 x D59.5 mm [W6.67 x H5.39 x D2.34 in.]
Panel Cut Dimensions
W156 x H123.5 mm [W6.14 x H4.86 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]

Dimensions
External dimensions
Panel cut-out dimensions
External dimensions with cable
