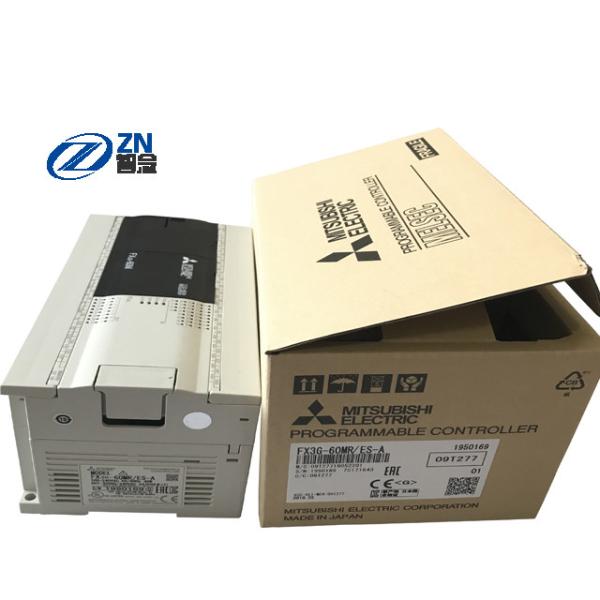

FX3G-60MR/ES-A PLC Programmable Logic Controller Mistubishi Wholesale Price
FX3G-60MR/ES-A PLC Programmable Logic Controller Mistubishi Wholesale Price
Specifications
Place of Origin :
China/Japan
Brand Name :
Mistubishi
Model Number :
FX3G-60MR/ES-A, FX3G-60MR/ES-A
Packaging Details :
Carton packaging
Supply Ability :
10pc/per week
Price :
$50-$500
MOQ :
1/pc
Payment Terms :
T/T, western union
Delivery Time :
Within 3 Working Days
Shipping by :
DHL,UPS,Fedex and EMS
Package :
professional anti-static bag
Warranty :
1 year
Quality :
100% Original 100% Brand
Service :
Faster Delivery
Port :
Guangdong, Dongguan, Shenzhen or as your selection
Description

FX3G-60MR/ES-A PLC Programmable Logic Controller Mistubishi Wholesale Price

Bsic info:

AC power / DC input type
Input: 36 points (40) DC24V Sink / source
output: 24 points Relay
inputs X044 to X047 (4 points) are empty numbers

Features:

Control scale: Up to 256 points (when CC-Link and AnyWire remote I / O are configured)
Terminal block type standard machine that can add input / output
System upgrades such as analog and communication are possible
Function expansion board 2 Units can be connected (only one unit can be connected for 14-point and 24-point types)
Easy measurement of input pulse width and cycle with high accuracy of 10 μs (high-speed pulse width / pulse cycle measurement function)
Sequence control to capture short signals Easy setting (pulse catch function)

Ambient temperature 0-55 ° C: During operation, -25-75 ° C: During storage
Relative humidity 5 to 95% RH (no condensation) ・ ・ ・ ・ ・ ・ During operation
Vibration resistant When mounting the DIN rail Frequency: 10-57Hz One-sided amplitude: 0.035mm X, Y, Z 10 times in each direction (80 minutes in total) Judgment criteria are based on IEC 61131-2
Frequency: 57-150Hz Acceleration: 4.9m / s 2　X, Y, Z 10 times in each direction (80 minutes in total) Judgment criteria are based on IEC 61131-2
At the time of direct mounting Frequency: 10-57Hz One-sided amplitude: 0.075mm X, Y, Z 10 times in each direction (80 minutes in total) Judgment criteria are based on IEC 61131-2
Frequency: 57-150Hz Acceleration: 9.8m / s 2　X, Y, Z 10 times in each direction (80 minutes in total) Judgment criteria are based on IEC 61131-2
Impact resistance 147m / s 2 , action time 11ms, sine and cosine half-wave pulse 3 times in each direction of X, Y, Z Judgment criteria are based on IEC61131-2
Noise resistance Based on a noise simulator with a noise voltage of 1,000 Vp-p, a noise width of 1 μs, a rise of 1 ns, and a period of 30 to 100 Hz.
Withstand voltage When conducting a withstand voltage test, use the following voltage between each terminal and the ground terminal of the basic unit. Between power supply terminal (AC power supply) and ground terminal: AC1.5kV 1 minute DC24V service power supply, and between input terminal (DC24V) and ground terminal: AC500V 1 minute Between output terminal (transistor) and ground terminal: AC500V 1 minute
Insulation resistance When conducting an insulation resistance test, use the following voltage between each terminal and the ground terminal of the basic unit. Between power supply terminal (AC power supply) and ground terminal: 5MΩ or more with DC500V insulation resistance tester DC24V service power supply, and between input terminal (DC24V) and ground terminal: 5MΩ or more with DC500V insulation resistance tester Output terminal (transistor) and ground terminal Between: 5MΩ or more with DC500V insulation resistance tester
ground Class D grounding (grounding resistance: 100Ω or less) <Common grounding with strong electric system is not possible> Grounding should be dedicated grounding or shared grounding.
Usage atmosphere No corrosive or flammable gas, no terrible conductive dust
Altitude used It cannot be used in an environment where the pressure is 2000 m or less and the atmospheric pressure is higher than the atmospheric pressure. It may break down.
