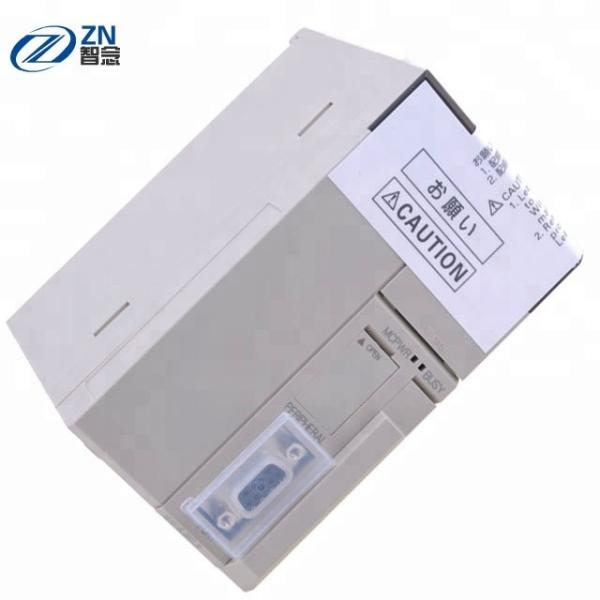

CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H
CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H
CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H
CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H
CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H
CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H
Specifications
Place of Origin :
China/Japan
Brand Name :
OMRON
Model Number :
CS1D-CPU65H
Packaging Details :
Carton packaging
Supply Ability :
10pc/per week
Price :
$50-500
MOQ :
1/pc
Payment Terms :
T/T, western union
Condition :
100% original and new
Warranty :
1 Year
Package :
Original Packing
Shipping Ways :
DHL,FedEx,EMS
MOQ :
1 piece
Color :
Black or white
Model number :
CS1D-CPU65H
Brand :
OMRON
Product name :
Programmable Logic Controller
Packaging :
Original carton
Port :
selectable
Description

New omron plc price list Omron CS1D series Omron PLC CPU Module

CS1 is Omron's most extensive PLC family, with a maximum capacity of 5120 'local' digital I/Os. Up to 7 expansion racks can be connected to a single CPU rack, bringing the maximum number of I/O units to 80. Any combination from over 200 models of digital I/Os, analog I/Os, control units and communication units can be mounted in any order. The huge instruction set and function block library allow you to write very compact programs, using any mix of IEC 61131-3 Structured Text and ladder language.

CS1D CPU module (CPU dualization)

product name Specification Specifications current consumption (A) model
I/O points Program capacity data memory capacity programming language CPU duplication interrupt function 5V series 26V series

CS1D CPU module
(for dual CPU)

CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H

 5120 points
Additional
number of devices: 7		 400K　
Step		 832K Word
(DM: 32K Word, EM:
32K Word×25 Bank)		 Ladder Diagram,
FB, ST,
SFC		 Can not possible
0.82*		 one CS1D-CPU68HA
250K　
Step		 448K Word
(DM: 32K Word, EM:
32K Word×13 Bank)
0.82*		 one CS1D-CPU67HA
250K　
Step		 448K Word
(DM: 32K Word, EM:
32K Word×13 Bank)		 ladder diagram
0.82*		 one CS1D-CPU67H
60K　
Step		 128K Word
(DM: 32K Word, EM:
32K Word×3 Bank)
0.82*		 one CS1D-CPU65H

Note. The interrupt function cannot be used when the CPU duplex, double expansion, or single expansion system is used.

＊When connecting to NT-AL001 type, add 0.15A to 1 port.

CS1D Program CPU Module

product name Specification Current consumption (A) model
CPU Department loop control unit 5V series 26V series

CS1D Program
CPU Module

CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H

 Equivalent to CS1D-CPU67H [LCB05D]
Operation method: function block
method Number of function blocks: Maximum 500
Minimum operation period: 100ms
PID control method: 2 degrees of freedom PID
(with automatic adjustment function)		 1.04 one CS1D-CPU67P
Equivalent to CS1D-CPU65H 1.04 one CS1D-CPU65P

Note

1. The CS1W-LCB01/05 circuit control board cannot be mounted on the CS1D CPU module CS1D-CPU@@H (for dual CPU system). To use the dual system of the circuit control board, please use the CS1D program CPU module CS1D-CPU@@P type. For details, please refer to the CS series PLC measuring device catalog (catalog number: SBCC-185).

2. When using the CPU duplex system, the interrupt function cannot be used.

CS1D CPU module (for CPU-only system)

product name Specification Current consumption (A) model
I/O points Maximum program capacity data memory capacity programming language CPU duplication interrupt function 5V series 26V series

CS1D CPU module
(for CPU-only system)

CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H

 5120 points Number of
additional units:
7		 250K　
Step		 448K Word
(DM: 32K Word, EM:
32K Word×13 Bank)		 Ladder Diagram,
FB, ST,
SFC		 not possible Can 0.82* one CS1D-CPU67SA
1280 points Number of
additional units:
3		 30K　
Step		 64K Word
(DM: 32K Word, EM:
32K Word×1 Bank)		 0.82* one CS1D-CPU44SA
5120 points Number of
additional boards:
7		 250K　
Step		 448K Word
(DM: 32K Word, EM:
32K Word×13 Bank)		 ladder diagram 0.82* one CS1D-CPU67S
5120 points Number of
additional boards:
7		 60K　
Step		 128K Word
(DM: 32K Word, EM:
32K Word×3 Bank)		 0.82* one CS1D-CPU65S
1280 points Number of
additional boards:
3		 30K　
Step		 64K Word
(DM: 32K Word, EM:
32K Word×1 Bank)		 ladder diagram 0.78* one CS1D-CPU44S
960 points Number of
additional boards:
2		 10K　
Step		 64K Word
(DM: 32K Word, EM:
32K Word×1 Bank)		 0.78* one CS1D-CPU42S
＊When connecting NT-AL001, add 0.15A per port.
