EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms
EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms
EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms
EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms
EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms
EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms
Specifications
Brand Name :
beckhoff
Model Number :
EL1002
Place of Origin :
Germany
MOQ :
1pc
Price :
$200_$300
Payment Terms :
T/T
Delivery Time :
3-5days
Packaging Details :
new box 20*30*50
Description :
Original White | Ethercat Terminal, 2-Channel Digital Input, 24 V Dc, 3 Ms
warranty :
1YEAR
Connection technology :
4-wire
Specification :
EN 61131-2, type 1/3
Number of inputs :
2
Special features :
4-wire connection
Relative humidity :
95%, no condensation
Description

EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms

Product Description

The EL1002 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has two channels that indicate their signal state via light emitting diodes.

Product Information

Special features:

  • input specification type 1/3
  • no bouncing due to mechanical switches thanks to 3 ms input filter
Technical data EL1002
Connection technology 4-wire
Specification EN 61131-2, type 1/3
Number of inputs 2
Nominal voltage 24 V DC (-15%/+20%)
“0” signal voltage -3…+5 V (EN 61131-2, type 3)
“1” signal voltage 11…30 V (EN 61131-2, type 3)
Input current typ. 3 mA (EN 61131-2, type 3)
Input filter typ. 3.0 ms
Distributed clocks –
Current consumption power contacts typ. 2 mA + load
Current consumption E-bus typ. 90 mA
Electrical isolation 500 V (E-bus/field potential)
Configuration no address or configuration setting
Special features 4-wire connection
Weight approx. 50 g
Operating/storage temperature -25…+60°C/-40…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX, IECEx, DNV GL, cFMus
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc

Housing data EL-12-8pin ES-12-8pin
Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²		 s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16		 s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts Imax: 10 A

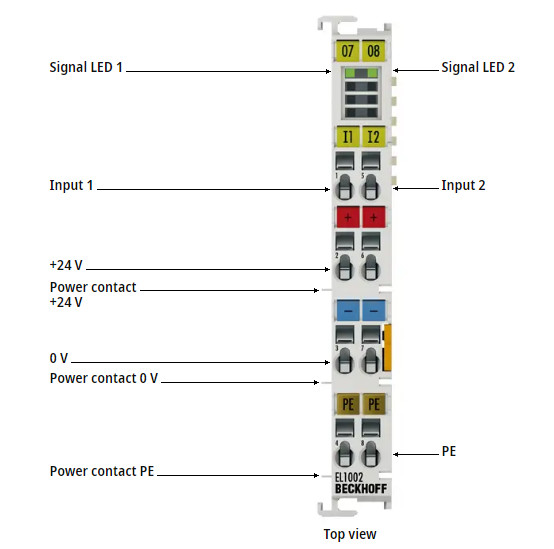

Product Photo

EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms

EL1002 Beckhoff | EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms
