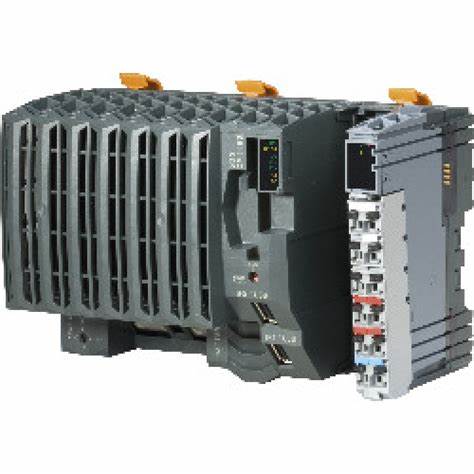

X20CP1483 B&R PLC Module Get Your Hands On Compact Flash Slot 1 With 300 G Weight
X20CP1483 B&R PLC Module Get Your Hands On Compact Flash Slot 1 With 300 G Weight
X20CP1483 B&R PLC Module Get Your Hands On Compact Flash Slot 1 With 300 G Weight
X20CP1483 B&R PLC Module Get Your Hands On Compact Flash Slot 1 With 300 G Weight
Specifications
Brand Name :
B&R
Model Number :
X20CP1483
Place of Origin :
Austria
MOQ :
1pc
Price :
$1860-$2350
Payment Terms :
T/T, L/C
Supply Ability :
30pcs/month
Delivery Time :
3-5days
Packaging Details :
new in box
Description :
Intel X86 Based 100 Mhz Compatible Cpu With Integrated I/O Processor Onboard Ethernet
Warranty :
1year
System module :
Controller
CompactFlash slot :
1
Integrated I/O processor :
Processes I/O data points in the background
Remanent variables :
Max. 32 kB
Weight :
300 g
Shortest task class cycle time :
1 ms
Typical instruction cycle time :
0.09 μs
Description

X20CP1483 B&R PLC Module Get Your Hands On Compact Flash Slot 1 With 300 G Weight

Product Description

Material number:

X20DI9371

Description:

  • 12 digital inputs

  • Sink connection

  • 1-wire connections

  • Software input filter can be configured for entire module

The module is equipped with 12 inputs for 1-wire connections. The module is designed for sink input wiring.

Product Information

Short description

I/O module

12 digital inputs 24 VDC for 1-wire connections

General information

B&R ID code

0x1B95

Status indicators

I/O function per channel, operating state, module status

Diagnostics

Module run/error

Yes, using LED status indicator and software

Power consumption

Bus

0.18 W

Internal I/O

1.75 W

Additional power dissipation caused by actuators (resistive) [W]

-

Certifications

CE

Yes

UKCA

Yes

ATEX

Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X

UL

cULus E115267
Industrial control equipment

HazLoc

cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5

DNV

Temperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)

CCS

Yes

LR

ENV1

KR

Yes

ABS

Yes

BV

EC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deck

KC

Yes

Digital inputs

Nominal voltage

24 VDC

Input characteristics per EN 61131-2

Type 1

Input voltage

24 VDC -15% / +20%

Input current at 24 VDC

Typ. 3.75 mA

Input circuit

Sink

Input filter

Hardware

≤100 μs

Software

Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments

Connection type

1-wire connections

Input resistance

Typ. 6.4 kΩ

Switching threshold

Low

<5 VDC

High

>15 VDC

Insulation voltage between channel and bus

500 Veff

Electrical properties

Electrical isolation

Channel isolated from bus
Channel not isolated from channel

Operating conditions

Mounting orientation

Horizontal

Yes

Vertical

Yes

Installation elevation above sea level

0 to 2000 m

No limitation

>2000 m

Reduction of ambient temperature by 0.5°C per 100 m

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature

Operation

Horizontal mounting orientation

-25 to 60°C

Vertical mounting orientation

-25 to 50°C

Derating

See section "Derating".

Storage

-40 to 85°C

Transport

-40 to 85°C

Relative humidity

Operation

5 to 95%, non-condensing

Storage

5 to 95%, non-condensing

Transport

5 to 95%, non-condensing

Mechanical properties

Note

Order 1x terminal block X20TB12 separately.
Order 1x bus module X20BM11 separately.

Pitch

12.5+0.2mm

Product Photo
